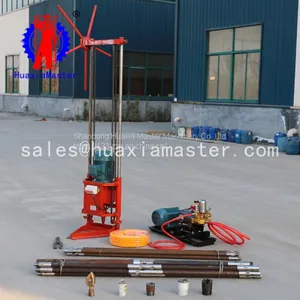

Three-phase electric portable sampling rig highly cost effective QZ-2D drilling rig
- 100 Set / Sets per Month
- QINGDAO
- T/T
- 30 days
You May Like
-
Easy and convenient operation three phase electric sampling drilling rig QZ-2DS
-
Easy to assemble and disassemble QZ-3 diesel drill machine core drilling rig
-
Portable drilling machine operation panel mine drill machine YQZ-50A hydraulic core drilling rig
-
Huaxia master supply drilling rig coring machine YQZ-50B hydraulic core drilling machine
-
Simple in operation gasoline power soil drilling rig safe soil sampling QTZ-1 drill rig equipment
-
Depth of drilling QTZ-2 drill rig machine popular mining machinery
Product Details
| Brand Name | Huaxia master | Place of Origin | China | |
| Model Number | QZ-2D | Type | Core Drilling Rig | |
| Certification | ISO9001 | After-sales Service Provided | Overseas service center available | |
| Warranty | 6 months | Weight | 110KG | |
| Dimension(L*W*H) | 600*650*2330 | Power Type | Gasoline | |
| Usage | Coal | Condition | New | |
| Power(W) | 4KW |
Product Description

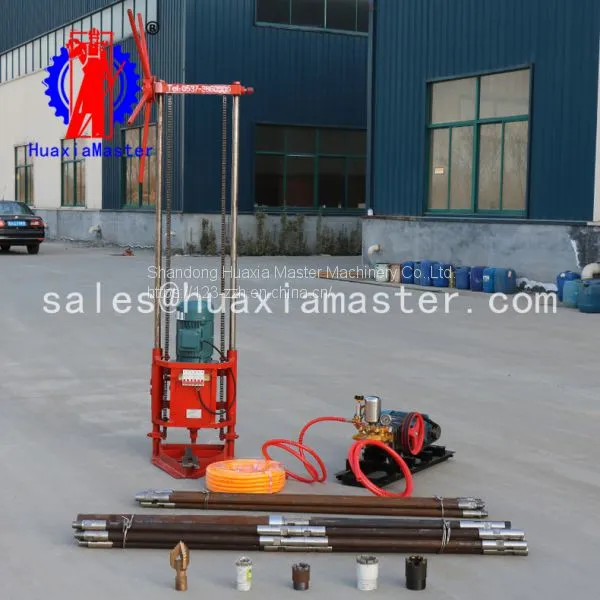

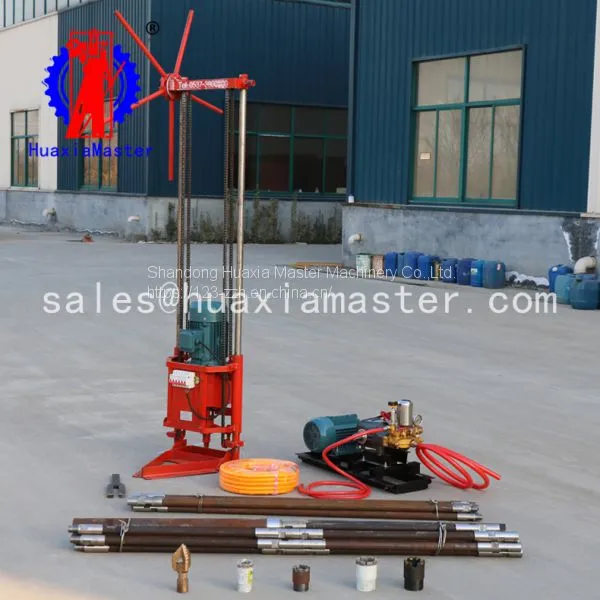

QZ-2D three phase electric sampling drilling rig
1. Brief introductions of QZ-2D three phase electric sampling drilling rig
QZ-2D three phase electric sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2D three phase electric sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2D three phase electric sampling drilling rig
QZ-2D three phase electric sampling drilling rig | ||
End hole diameter (mm) | 32-110 | |
Drilling depth（m） | soil Layer φ110：10m soil Layer φ91：10-15m lithosphereφ91：5-10m lithosphere φ75：10-15m lithosphereφ60：15-20m lithosphereφ46：20-30m | |
Drilling pipe diameter(mm) | 30 | |
Three phase electric engine | power | 4kw |
model | YX3-112M-4 | |
Dimension（l*w*h） | 600*650*2330 | |
Weight（kg） | 110 | |
3. Configuration List of QZ-2D three phase electric sampling drilling rig
Item | Parameter | Unit | Quantity |
Three phase electric sampling drilling rig | QZ-2D | set | 1 |
Drilling pipe | 30*1500 | pc | 6 |
Drilling pipe | 30*800 | pc | 14 |
Pipe joint | 38 | pc | 20 |
Reducing nipple | 58/38 | pc | 2 |
Core barrel | 58*800 | pc | 1 |
Core barrel | 58*1500 | pc | 1 |
Alloy bit | 60 | pc | 1 |
Diamond bit | 60 | pc | 1 |
Reducing nipple | 73/38 | pc | 2 |
Core barrel | 73*800 | pc | 1 |
Alloy bit | 75 | pc | 1 |
Diamond bit | 75 | pc | 1 |
Three-wing bit | 75 | pc | 1 |
Safety clamp | pc | 1 | |
Water seal | Y 30*50*10 | pc | 4 |
Oil seal | 30*50*10 | pc | 1 |
Pipe wrench | 18 | pc | 2 |
Monkey wrench | pc | 1 | |
Shaft snap ring clamp | pc | 1 | |
Hole snap ring clamp | pc | 1 | |
Pliers | pc | 1 | |
Cross screwdriver | pc | 1 | |
Hex wrench | pc | 1 | |
Control wheel | pc | 1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe,
please specify
