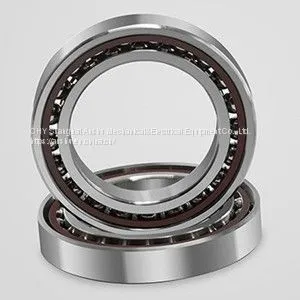

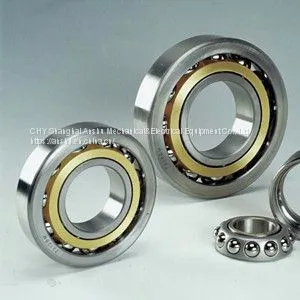

Help CenterAngular Contact Ball Bearings 7228 7230 7232 7234 7236 7238 7240 7244 7248 7252
Related Products
-
Angular Contact Ball Bearings 7303 7304 7305 7306 7307 7308 7309 7310 7311 7312 7313 7314 7315US$ 0.1 - 500MOQ: 1 Piece -
Angular Contact Ball Bearings 7316 7317 7318 7319 7320 7321 7322 7324 7326 7328 7332 7332 7334 7336US$ 0.1 - 500MOQ: 1 Piece
-
Angular Contact Ball Bearings 7406 7407 7408 7409 7410 7411 7412 7413 7414 7415 7416 7417 7418US$ 0.1 - 500MOQ: 1 Piece
-
Angular Contact Ball Bearings 3200 3201 3202 3203 3204 3205 3206 3207 3208 3209 3210 3211 3212US$ 0.1 - 500MOQ: 1 Piece
-
Angular Contact Ball Bearings 3213 3214 3215 3216 3217 3218 3219 3220 3221 3222US$ 0.1 - 500MOQ: 1 Piece
Introduction to angular contact ball bearings
Angular contact ball bearings have raceways on the inner and outer rings, and the inner and outer rings can be displaced relative to each other along the axial direction of the bearing. These bearings are particularly suitable for withstanding composite loads, ie loads acting simultaneously in both radial and axial directions. The axial load bearing capacity of the angular contact ball bearing increases as the contact angle α increases. The contact angle is the angle between the line connecting the contact point of the ball and the raceway in the radial plane and the vertical line of the bearing axis.
The angular contact ball bearing models are divided into: α=15° angular contact ball bearings (70000C type); α=25° angular contact ball bearings (70000AC type); α=40° angular contact ball bearings (70000B type) Back-to-back paired double angular contact ball bearings [70000C (AC, B) / DB type]; face-to-face paired double angular contact ball bearings [70000C (AC, B) / DF type]; series paired double angle Contact ball bearings [70000C (AC, B) / DT type]; four point angular contact ball bearings (QJ0000 type). The material of the cage is brass, synthetic resin, etc., depending on the bearing type and the conditions of use.
Address: No. 24, Lane 397, Huhang Road, Fengxian District, Shanghai, China
Email：bearing@anshu-electromech.com Mobile phone:(0086)013918253057
Tel：（0086）021-60140720 wechate:ch13918253057
Fax：（0086）021-35090027 QQ：810480122
WhatsApp:+8613918253057 Skype:chpfchpf
| model | d | D | B | seal(C-15°、AC-25°、B-40°) | Accuracy level | weight（kg） |
| 7228 | 140 | 250 | 42 | C、AC、B | P0、P5 | 7.68 |
| 7230 | 150 | 270 | 45 | C、AC、B | P0、P5 | 10 |
| 7232 | 160 | 290 | 48 | C、AC、B | P0、P5 | 12.8 |
| 7234 | 170 | 310 | 52 | C、AC、B | P0、P5 | 15.8 |
| 7236 | 180 | 320 | 52 | C、AC、B | P0 | 18.5 |
| 7238 | 190 | 340 | 55 | C、AC、B | P0 | 22.3 |
| 7240 | 200 | 360 | 58 | C、AC、B | P0 | 26.7 |
| 7244 | 220 | 400 | 65 | C、AC、B | P0 | 37.4 |
