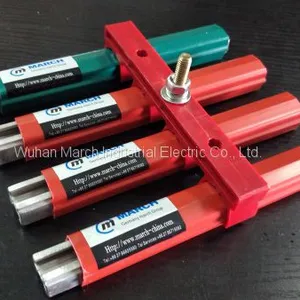

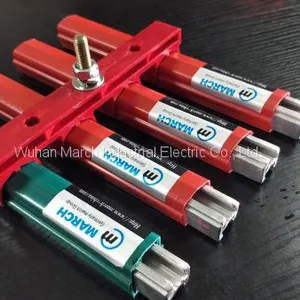

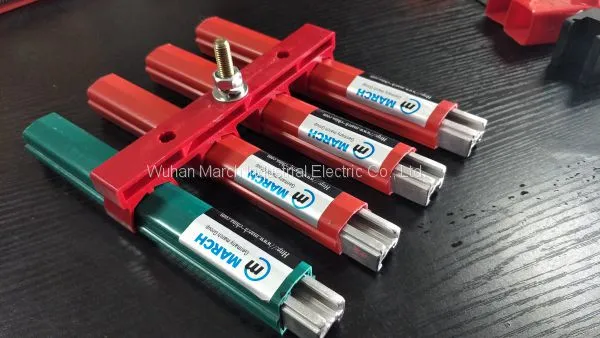

160a 200a 320a 400a Aluminum Single Conductor Busbar With Current Collector CE CCC ISO Certifictaion
US$ 9.8 - 25.69
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
MARCH
Place of Origin:
China
Model Number:
MCCBII
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan
Delivery Detail:
7 days
Related Products
-
CE CCC ISO Certifictaion 100A 160A 320A Single Conductor Busbar With Current CollectorUS$ 9.8 - 25.69MOQ: 10 Pieces -
China Factory Supply 250a 300a 400a Single Conductor Bar With Current Collector for Overhead CraneUS$ 9.8 - 25.69MOQ: 10 Pieces
-
250a 300a 400a Copper Busbar /Aluminum Single Conductor Bar for Overhead CraneUS$ 9.8 - 25.69MOQ: 10 Pieces
-
Copper /Aluminum Single Conductor Bar for Overhead Crane, Current Collector for CraneUS$ 9.8 - 25.69MOQ: 10 Pieces
-
Copper /Aluminum Single Conductor Bar for Overhead Crane, Current Collector for CraneUS$ 9.8 - 25.69MOQ: 10 Pieces
Brand Name
MARCH
Place of Origin
China
Model Number
MCCBII

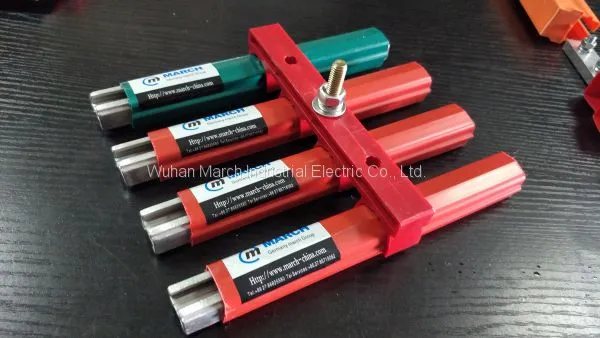

160a 200a 320a 400a aluminum single conductor busbar with current collector CE CCC ISO certifictaion
Type -Aluminum
Aluminum conductor busbar
| Model | Rated current (A) | Section area (mm2) | MAX Voltage AC (v) | MAX Voltage DC (v) | Full load permissible temperature (Degree) | Weight (kg) |
| MCCBII-160A-AL | 160 | 102 | 550 | 700 | 25 | 1.98 |
| MCCBII-200A-AL | 200 | 104 | 2.13 | |||
| MCCBII-250A-AL | 250 | 110 | 2.19 | |||
| MCCBII-315A-AL | 315 | 120 | 2.32 | |||
| MCCBII-400A-AL | 400 | 157 | 2.81 | |||
| MCCBII-500A-AL | 500 | 196 | 3.11 |
Stand Length : 4.5 m
Application environment : Suitable for the out door and sea , resistance to certain chemicals
Features:
1.Quick and Easy Assembly
2.Excellent Ellectrial Conductivity
3.CAD/CAM designed for Stable Quality
MCCBII Accessories
1. Expansion Sections
| Rated Current (A) | Material | Weight(kg) | Standard Length |
| 60A | Galvanized steel | 3.22 | 4.5 M |
| 100A | 3.48 | ||
| 125A | 4.37 | ||
| 160A | Aluminum &Stainless steel | 3.19 | |
| 200A | 3.30 | ||
| 250A | 3.49 | ||
| 315A | 3.61 | ||
| 400A | 3.69 | ||
| 500A | 4.01 | ||
| 160A | Copper | 3.39 | |
| 250A | 3.97 | ||
| 400A | 4.9 |
Application Environment :
The expansion sections are required to compensate for therma expansion
MCCBII System can run for 150m without an expansion section
2.Power feed
| Item | Weight | Parts No. |
| 0.041 | 27105 | |
| 0.18 | 26105 | |
| >250A End power Feed | 0.25 | 26106 |
3.Joints and Cover
| Items | Material | Weight | Parts No |
| Joints | Galvanized steel | 0.049 | 28111 |
| Copper | 0.031 | 28112 | |
| Aluminum | 0.082 | 28113 | |
| Joint Covers | PVC | 0.028 | 26104 |
4. Hanger Clamps
| Item | Material | Largest Installation Distance | Weight (kg) | Parts NO. |
| Anchor Clamp | PVC | 1.5 m | 0.04 | 27104 |
| 1-Pole Hanger Clamp | 0.03 | 28101 | ||
| 3-Pole Hanger Clamp | 0.06 | 27103 | ||
| 4-Pole Hanger Clamp | 0.07 | 27101 | ||
| 2-Bolt 4 pole Hanger | 0.08 | 27102 |
5. End Caps
| Material | Weight(kg) | Parts No. |
| Steel | 0.042 | 28107 |
| Copper | 0.04 | 28106 |
| Aluminum | 0.22 | 28105 |
| Transition Cover | 0.11 | 28104 |
100A carbon brush for crane current collector
| Rated current (A) | Head | Vertical movement (mm) | Horizontal movement (mm) | Setting height (mm) | Weight (kg) | Shoe material |
| 50 | 1 | - | - | - | 0.4 | Copper/Graphite |
| 100 | 1 | +80/-20 | -63/+63 | 102 | 0.8 | Copper/Graphite |
| 200 | 2 | +80/-20 | 63/+63 | 102 | 1.6 | Copper/Graphite |
| 250 | 1 | -50/+50 | -50/+50 | 230 | 3.5 | Copper /Graphite |
| 500 | 2 | -50/+50 | -50/+50 | 230 | 7 | Copper /Graphite |
Contact area : 360mm2 &1088 mm2
Shoe Pressure :0.007 k/mm2
Allowed Wearing : 5mm & 8mm
Max Speed: 200 m/min
Spring Load Weight :2.5KG & 8KG

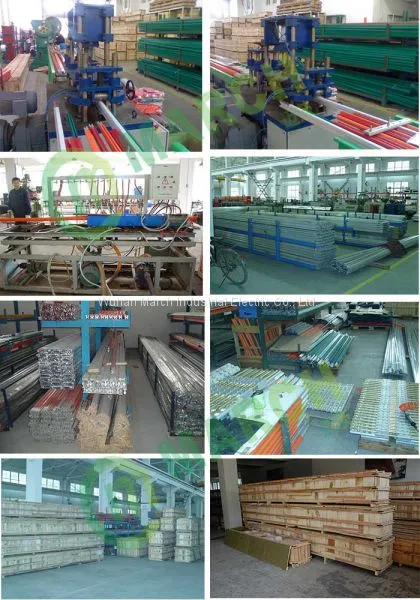

Company information :
