Cylindrical Roller Bearings NN3024 NN3026 NN3028 NN3030 NN3032 NN3034 NN3036 NN3038 NN3040

FOB Price

US$ 1 - 1000 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CHY	Place of Origin	China
Model Number	NN3024 NN3026 NN3028 NN3030 NN3032 NN3034 NN3036 NN3038 NN3040	Number of Row	Single Row
Seals Type	E,EM	Precision Rating	P0,P5
Outside Diameter	47, 720	Bore Size	25, 500

Product Description

Email: bearing@anshu-electromech.com

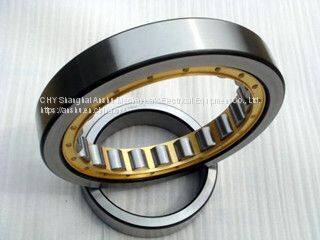

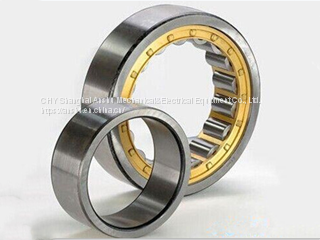

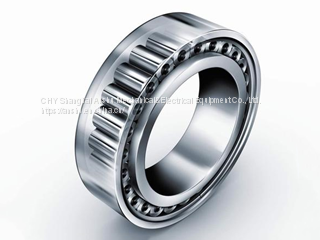

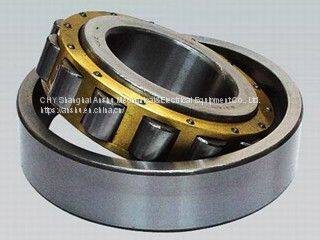

Cylindrical rollers and raceways are line contact bearings. Load capacity, mainly bear radial load. The rolling element has little friction with the ferrule rib and is suitable for high speed rotation. According to the ferrule with or without ribs, it can be divided into single row cylindrical roller bearings such as NU, NJ, NUP, N, NF, and double row cylindrical roller bearings such as NNU and NN. The bearing is a structure in which the inner ring and the outer ring are separable.

Cylindrical roller bearings with no ribs on the inner or outer ring, the inner and outer rings can move relative to the axial direction, so they can be used as free end bearings. A cylindrical roller bearing with a single rib on one side of the inner and outer rings and a single rib on the other side can withstand a certain degree of axial load in one direction. Steel stamping cages or copper alloy solid cages are generally used. However, some use polyamide shaped cages.

model	d	D	B	seal	Accuracy level	weight（kg）
NN3024	120	180	46	K	P5、P4、P2	4.04
NN3026	130	200	52	K	P5、P4、P2	5.88
NN3028	140	210	53	K	P5、P4、P2	6.34
NN3030	150	225	56	K	P5、P4、P2	7.77
NN3032	160	240	60	K	P5、P4、P2	9.41
NN3034	170	260	67	K	P5、P4、P2	12.8
NN3036	180	280	74	K	P5、P4、P2	16.8
NN3038	190	290	75	K	P5、P4、P2	17.8
NN3040	200	310	82	K	P5、P4、P2	22.7
