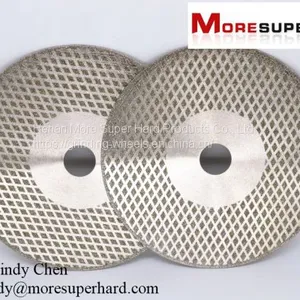

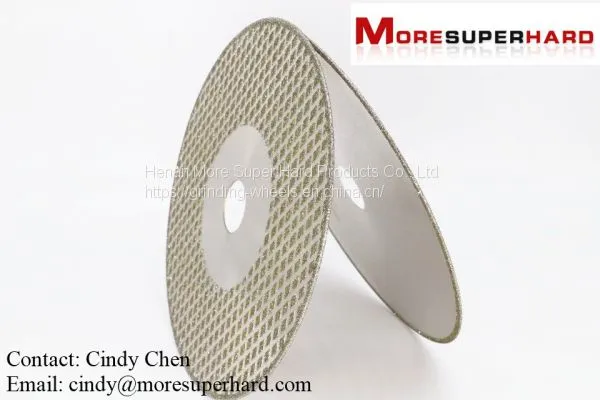

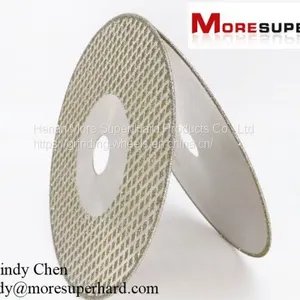

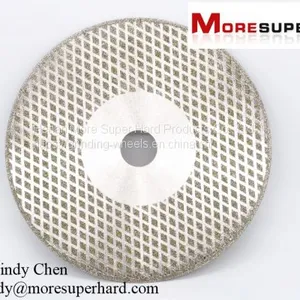

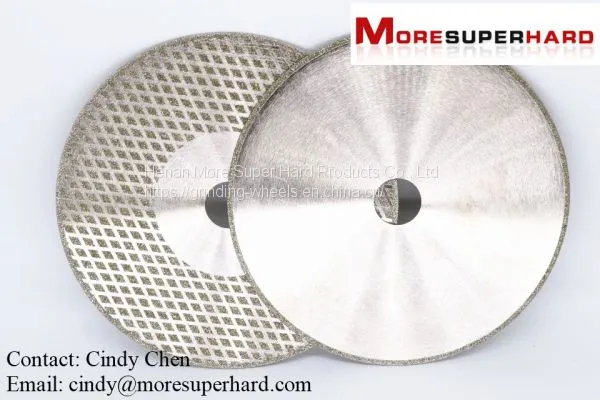

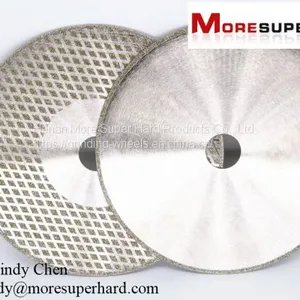

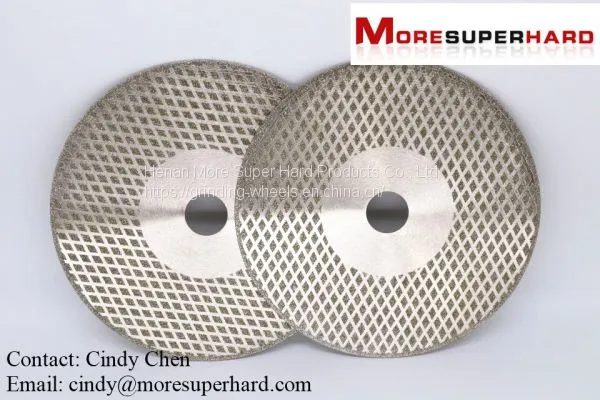

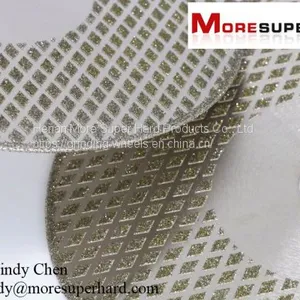

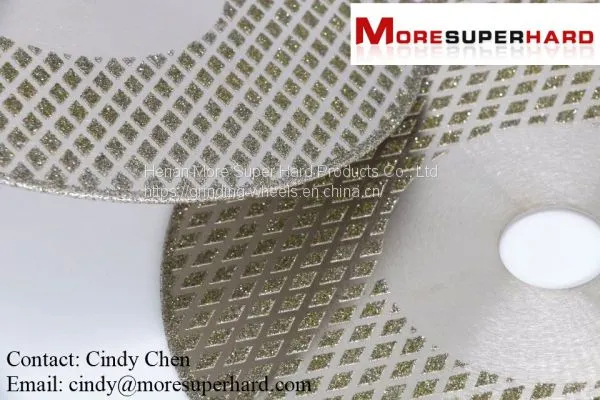

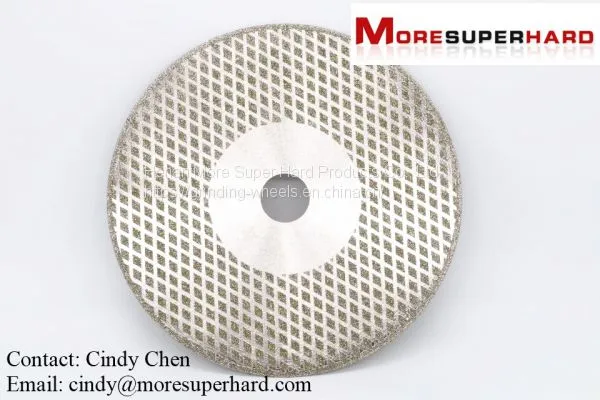

Diamond cutting disc for cutting and grinding marble, granite, thermosetting plastics, GRP, pre-sintered and pre-fired (green) materials, fiber glass, electro carbons, graphite, soft ferrites, PVC and pc boards, etc
DetailsApplications Of Electroplated Diamond Cutting Wheel, Cutting DiscCutting and grinding marble, granite, thermosetting plastics, GRP, pre-sintered and pre-fired (green) materials, fiber glass, electro carbons, graphite, soft ferrites, PVC and pc boards, etc
More SuperHard electroplated diamond saw balds are usually be fixed on angle grinders, circular saws and handheld saws for cutting granite or marble, etc
Advantages Of Electroplated Diamond Cutting Disc* The cutting effect is better than sintered small diamond saw blade and won't cause broken edge
* Very sharp cutting performance and generate minimum heat
*Continuous rim cutting discs provide smoother cutting on fiberglass, plastic, ceramic tiles
*Segmented rim cutting discs are more suitable for cutting marble, granite and abrasive materials
* Key hole” and “U” shape slots are common slot types of segmented rim
Specifications Of Diamond Cutting Disc
Outer Diameter |
Arbor hole (mm) |
Thickness of steel core |
Rim |
|
12" |
300 mm |
25.4 30 50 |
1.8mm 2mm |
Continuous Segment |
14" |
350 mm |
25.4 30 50 |
1.8mm 2mm |
Continuous Segment |
16" |
400 mm |
25.4 30 50 |
1.8mm 2mm |
Continuous Segment |
18" |
450 mm |
25.4 30 50 |
1.8mm 3mm |
Continuous Segment |
20" |
500 mm |
25.4 30 50 |
3.0mm |
Continuous Segment |
Outer Diameter |
Arbor hole (mm) |
Thickness of steel core |
Rim |
|
4" |
100 mm |
5/8"-11 Flange |
1.4mm |
Continuous Segment |
4.5" |
115 mm |
5/8"-11 Flange |
1.4mm |
Continuous Segment |
5" |
125 mm |
5/8"-11 Flange |
1.4mm |
Continuous Segment |
6" |
150 mm |
5/8"-11 Flange |
1.4mm |
Continuous Segment |
7" |
180mm |
5/8"-11 Flange |
1.6mm |
Continuous Segment |
9" |
230 mm |
5/8"-11 Flange |
1.6mm |
Continuous Segment |
|
| ||||
Outer Diameter |
Arbor hole (mm) |
Thickness of steel core |
Rim |
|
4" |
100 mm |
22.23 |
1.4mm |
Continuous Segment |
4.5" |
115 mm |
22.23 |
1.4mm |
Continuous Segment |
5" |
125 mm |
22.23 |
1.4mm |
Continuous Segment |
6" |
150 mm |
22.23 |
1.4mm |
Continuous Segment |
7" |
180mm |
22.23 |
1.6mm |
Continuous Segment |
9" |
230 mm |
22.23 |
1.6mm |
Continuous Segment |
Other size and type of diamond cutting disc can be made according to customers' requirement. Email: sales@moresuperhard.com | ||||
For the environmental protection, vacuum brazed diamond blade will take the place of electroplated diamond cutting disc to avoid pollution during production. We can supply vacuum brazed diamond blade
