Product Description
High-speed hydraulic riveting machine is generally applied in heavy truck, bus, car, motorcycle, train, agricultural vehicle, mine-vehicle, aeroplane, bridge structure etc.
Product Features
1. The low noise
2. The low labor intensity
3. The high riveting speed about 1/3(s)
4. The high riveting force is used in cold or hot riveting
5. The equal riveting force and high quality which can partly correct vehicles’ frame.

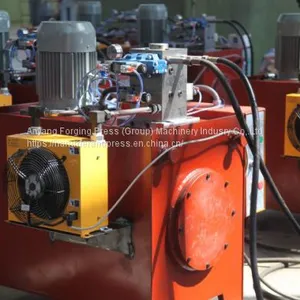

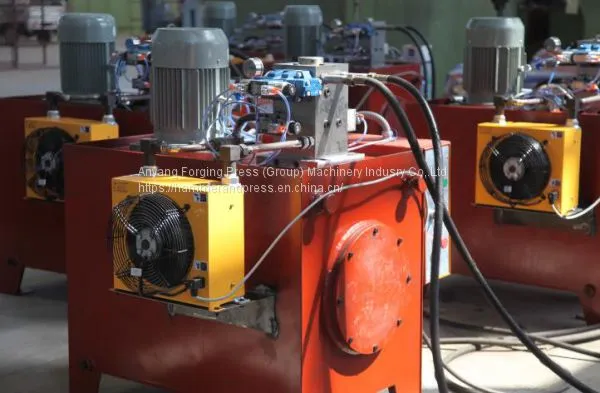

| The main technical parameter of hydraulic riveting machine pump station | ||||||
| Model | T92Y-8 | T92Y-30 | T92Y-40 | T92Y-50 | T92Y-63 | |
| Riveting force(KN) | 80 | 300 | 400 | 500 | 630 | |
| System Pressure force(mpa) | 16 | 7.5 | 7.5 | 7.5 | 7 | |
| Riveting Rate (min-1) | 20-25 | 20-25 | 20-25 | 15-20 | 10-12 | |
| Max-Riveting Diameter | Cold | 6 | 12 | 14 | 16 | 16 |
| Heat | 10 | Ø18-20 | Ø20-24 | Ø24-28 | Ø24-28 | |
| Pump Displacement (ml/r) | 18 | 37 | 45 | 56 | 60 | |
| Motor Power (kw) | 4 | 5.5 | 7.5 | 11 | 11 | |
| Oil tank volume(L) | 240 | 450 | 550 | 650 | 650 | |
| Oil pipe joint(mmxmm) | M27x1.5 | M27x1.5 | M33x2 | M36x2 | M36x2 | |
| The specification and outside size of pump station | ||||||
| Type | A(mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (KG) |
| T92Y-8 | 1020 | 800 | 1080 | 1200 | 500 | 700 |
| T92Y-30 | 1110 | 1010 | 1300 | 1250 | 650 | 550 |
| T92Y-40 | 1110 | 1010 | 1300 | 1350 | 650 | 550 |
| T92Y-50 | 1110 | 1010 | 1550 | 1400 | 700 | 680 |
| T92Y-63 | 1250 | 1150 | 1430 | 1400 | 700 | 700 |
| The hanging riveting clamp specification table | |||||||
| Item | Unit | WB-20-H | WB-30-H | WB-40-H | WB-50-H | WB-63-H | |
| Nominal riveting force | Ton | 20 | 30 | 40 | 50 | 63 | |
| ID of oil cylinder | mm | 90 | 110 | 125 | 140 | 160 | |
| Stroke | mm | 80 | 80 | 90 | 120 | 150 | |
| Diameter of piston rod | mm | 40 | 50 | 50 | 60 | 60 | |
| Riveting die mounting hole | mm | 20 | 20 | 20 | 25 | 30 | |
| The neck diameter of oil cylinder | mm | 64 | 80 | 80 | 90 | 90 | |
| The length of neck | mm | 105 | 115 | 115 | 145 | 145 | |
| The diameter of rivet |
cold riveting | mm | 10 | 12 | 14 | 16 | 16 |
| hot riveting | mm | 16 | 20 | 22 | 24 | 27 | |
| Hydraulic generator | T92Y-30 | T92Y-40 | T92Y-50 | T92Y-63 | |||
Company Profile
Anyang Forging Press (Group) Machinery Industry Co.,Ltd company is the biggest and the best manufacturer of forging equipments and forging auxiliary machines in China. Besides, we also specialized in manufacturing hydraulic briquette presses, baling presses for metal scrap processing and Hydraulic Riveting Machines in truck/bus chassis riveting field. Our company now covers an area of about 80 acres. We have 1600 staff members, among whom there are 210 technicians. Our workshops have more than 300 sets of excellent manufacturing equipments. Our company has small part machining workshops, large part machining workshops, heat treatment workshops, riveting and forging workshops, assembly workshops and so on 16 departments.
Our main products include CNC Fully Hydraulic Die Forging Hammers, Electro Hydraulic Open die Forging Hammers, Electro Hydraulic Die Forging Hammers, Hydraulic Open die Forging Press, Pneumatic Forging Hammers, Forging Manipulators, Forging Chargers, Ring Rolling Machines, Hydraulic Briquette Presses, Hydraulic Baling Presses and Hydraulic Riveting Machines.
