SZADP Brand Spot Network Cable UTP CAT5E 24AWG High Quality 305m

Product Description

SZADP Brand Spot Network Cable UTP CAT5E 24AWG High Quality 305m

1.Conductor:

material: solid Copper Clad Aluminum

diameter: 24AWG

construction 1/0.50±0.02mm

2.Insulator

material: HDPE

thickness: 0.24±0.05mm

diameter: 1.04±0.06mm

color: optional

elongation rate: Min.300%

tensile strength: Min.1.22kg/mm2

3.Jacket

material: PVC

thickness: average:0.50mm Min. at any point:0.40mm

diameter: 5.1±0.2mm

color: to your option

elongation rate: Min.125%

tensile strength: Min.1.41kg/mm2

flammability grade: CMX, CM

4. Rip cord& meter mark: optional

5. Standards: CE,  ROHS, ISO 9001:2000, SGS verified

6. Application: 100 Base-TX, 100VG-AnyLAN, 1000 Base-T, 155Mbps ATM, 622Mbps ATM, Noisy Environment

7.Electrical function:

1. DC resistance ≤5.8 Ω/100m

2. Resistance imbalance≤2.5%

3. Insulation resistance≥5000MΩ.Km

5. Dielectric strength (DC)

Conductor-conductor 2.5KV/2s

Conductor-shield 6.3KV/2s

8.Working temperature:  -20~+70

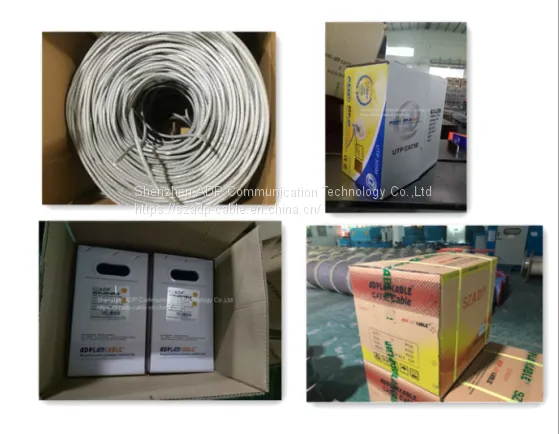

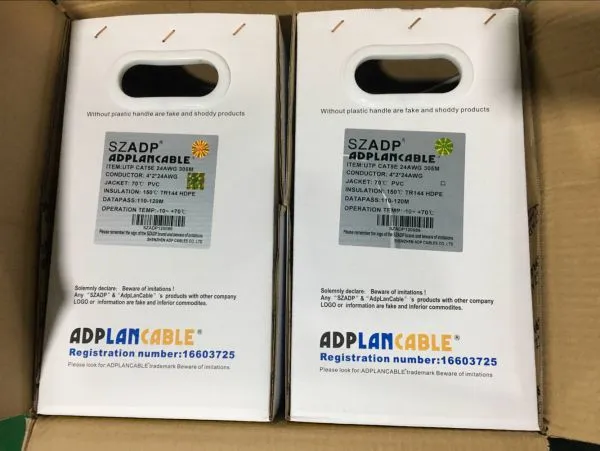

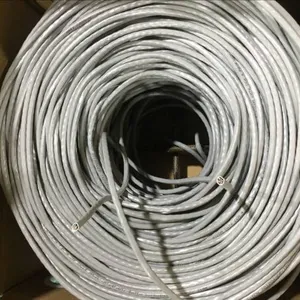

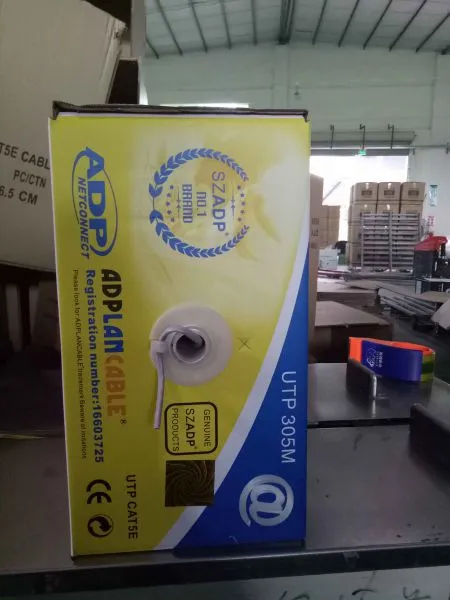

Detailed Images

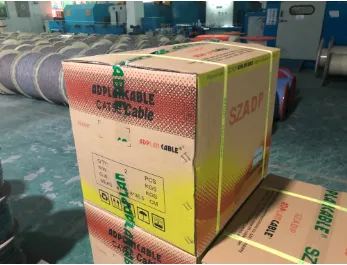

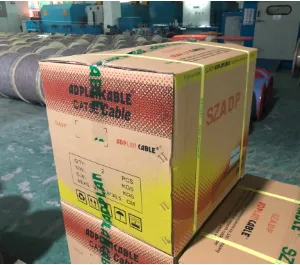

Packing & Delivery
