CAT-5 UTP Lan Cable/network cable: Conductor: Material: Solid Bare Copper Number of pairs: 4 pairs AWG: 23AWG Conductor diameter: 0.5 ±0.003mm Sheath: Material: PVC or LSZH Nominal diameter: 5.0 ±0.2mm Average thickness: 0.55mm Minimum point thickness: 0.545mm Includes: Central Cross Frame Jacket:PVC / LSZH Standard: YD/T1019-2001, TIA/EIA-568B, ISO/IEC11801,ISO/IEC61156 Application : Horizontal cabling in working area.Used in voice system,ISDN, ATM-25/51/155Mbps,10BASE-T,100BASE-TX...
· FOB Price:unknow
· Min.Order Quantity:5000pcs
· Supply Ability:500000pcs/month
· Port:Shanghai
· Payment Terms:L/C,D/A,D/P,T/T

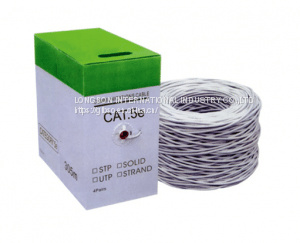

CAT-5 UTP Lan Cable/network cable:
Conductor:
Material: Solid Bare Copper
Number of pairs: 4 pairs
AWG: 23AWG
Conductor diameter: 0.5 ±0.003mm
Sheath:
Material: PVC or LSZH
Nominal diameter: 5.0 ±0.2mm
Average thickness: 0.55mm
Minimum point thickness: 0.545mm
Includes:
Central Cross Frame
Jacket:PVC / LSZH
Standard:
YD/T1019-2001, TIA/EIA-568B, ISO/IEC11801,ISO/IEC61156
Application :
Horizontal cabling in working area.Used in voice system,ISDN,
ATM-25/51/155Mbps,10BASE-T,100BASE-TX/T4,1000BASE-T,etc.
CE, UL, RoHS available

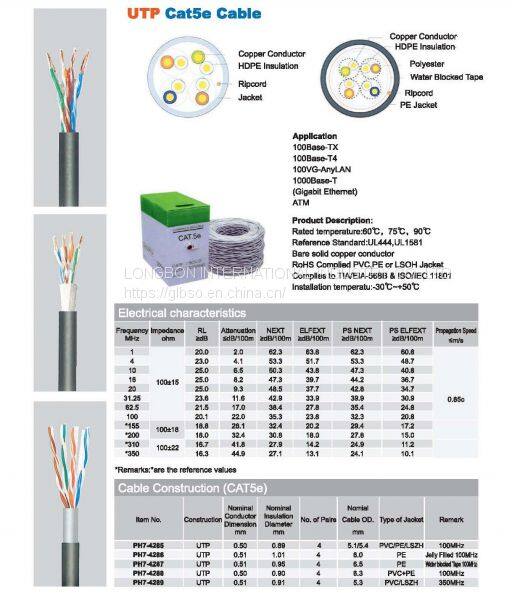

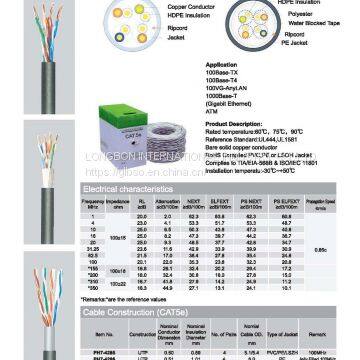

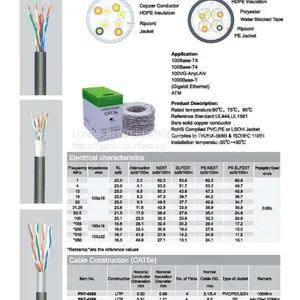

Model |
Indoor Cat6 Cat5 UTP Network. Cable |
Conductor Material |
Copper/CCA |
Conductor Dimension |
0.4mm /0.5mm |
insulation thickness |
0.18mm |
The thickness of Jacket |
0.55mm |
Outer Diameter |
5mm±0.2mm |
Insulation |
HD-PE (High density polyethylene) |
Number of Twisted Pair |
4P |
Shielding |
UTP |
Ripcord yes/no |
Yes |
Jacket |
PVC (Polyvinyl-Chloride) or LSZH (Low Smoke Zero Halogen) |
Color |
different color is available |
