Help CenterLimestone Raymond Mill
Related Products
-
Bauxite Raymond MillUS$ 10000 - 55000MOQ: 1 Set -
Rock Raymond MillUS$ 10000 - 55000MOQ: 1 Set
-
Apophyllite Stone Powder Grinding MillUS$ 42000 - 180000MOQ: 1 Set
-
Stone European Version Coarse Grinding MillUS$ 10000 - 50000MOQ: 1 Set
-
74-5 Micron Stone Powder Making MachineUS$ 42000 - 180000MOQ: 1 Set
Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The Limestone raymond mill,Limestone raymond mill manufacturers is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Raw Material:such as gypsum, talc, calcite, limeOre, marble, barite, dolomite, granite, kaolin, bauxite, fly ash , oxidation iron oxide red, iron ore, etc.
Output:30 - 425 mesh
Introduction of FLimestone raymond mill,Limestone raymond mill manufacturers:
Limestone raymond mill,Limestone raymond mill manufacturers, also known as Raymond Grinder or Pendulum Grinder, is designed by CLIRIK Machinery with Germany technology. The Limestone raymond mill,Limestone raymond mill manufacturers is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.
Limestone raymond mill,Limestone raymond mill manufacturers Features :
1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.
Structure of Limestone raymond mill,Limestone raymond mill manufacturers

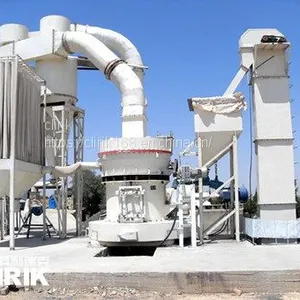

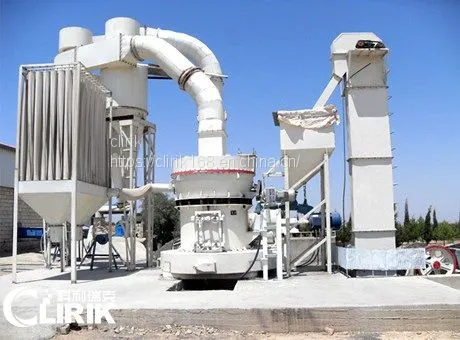

Limestone raymond mill, Limestone raymond mill manufacturers(Rammond roller mill) is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.
Working principle of Limestone raymond mill,Limestone raymond mill manufacturers
The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.
Technical Parameter of Limestone raymond mill,Limestone raymond mill manufacturers
| Type | Roller | Max. feeding size(mm) | Fineness of product(mm) | Output (t/h) | Power of machine(KW) | Size(mm) | ||
| No. | Dimension(mm) | Height(mm) | ||||||
| YGM7815 | 3 | 260 | 150 | 15 | 0.613-0.033 | 1-3 | 18.5 | 4300*3500*5100 |
| YGM8314 | 3 | 270 | 140 | 20 | 0.613-0.033 | 1.2-4.6 | 22 | 5300*4100*5200 |
| YGM9517 | 4 | 310 | 170 | 25 | 0.613-0.033 | 2.1-5.6 | 37 | 7100*5900*7900 |
| YGM4121 | 5 | 410 | 210 | 30 | 0.613-0.033 | 2.8-10.5 | 75 | 9200*7250*9700 |
| MTM1600 | 6 | 440 | 270 | 35 | 0.613-0.033 | 5-20 | 132 | 12550*5700*8350 |
Notice: Any change of Limestone raymond mill,Limestone raymond mill manufacturers technical data shall not be advised additionally.
Should you have any questions, please do not hesitate to contact me.
Phone:+8615993021269
wechat:15993021269
qq:2937596967
