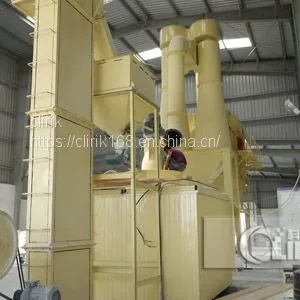

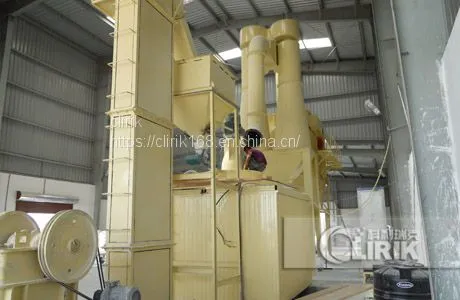

Apophyllite stone powder grinding mill
- 1 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
- Hand wheel operated PTFE Lined Diaphragm Valve
- BS Standard Manual PTFE Lined Diaphragm Valve
- Manual Fluorine Lined Diaphragm Valve
- Stainless Steel Type Pneumatic Ceramic Double Disc Gate Valve
- 5 Inch Class 150 Stainless Steel Pneumatic Ceramic Double Disc Gate Valve
- Anti Corrosive and Abrasive Type Pneumatic Ceramic Double Disc Gate Valve
Product Details
Brand Name: | clirik | Place of Origin: | China | Model Number: | HGM |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Apophyllite stone powder grinding mill has five types: HGM80, HGM90, HGM100, HGM100A, HGM125.The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron. The capacity (ton/hour) ranges from 0.4T/H to 12T/H. Apophyllite stone powder grinding machine is mainly used to produce fine powder.
Features of apophyllite stone powder grinding mill:
l) High efficiency
Under the same finished final size and the same motor power, the capacity of stone grinding mill is twice as much as jet mill, mixing grinder and ball mill.
2)Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.
3)High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4) High fineness and flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 3000 meshes, and the product fineness can reach D97≦5um.
5)Environment-friendly
The application of pulse deduster and muffler greatly alleviates dust pollution and noise.
The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
Technical parameter of apophyllite stone powder grinding mill:
Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
Ring Diameter(mm) | 800 | 930 | 1035 | 1035 | 1300 |
Ring Number (PCS) | 3 | 3-4 | 3 | 4 | 4 |
Roller Number(PCS) | 21 | 24-32 | 27 | 34-36 | 40-44 |
Main Shaft Speed (r. p. min) | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
Input Size (mm) | ≤20 | ||||
Finished Size (um) | 5-47(325-2500) | ||||
Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
Motor powder (KW) | 145-165 | 185-204 | 263 | 263-290 | 380-430 |
Should you have any questions, please do not hesitate to contact me.
Phone:+8615993021269
wechat:15993021269
qq:2937596967
