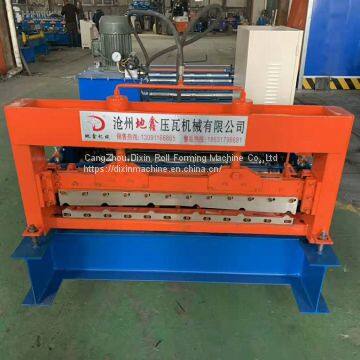

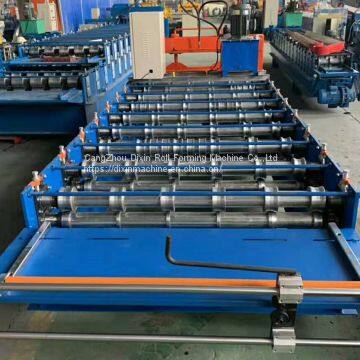

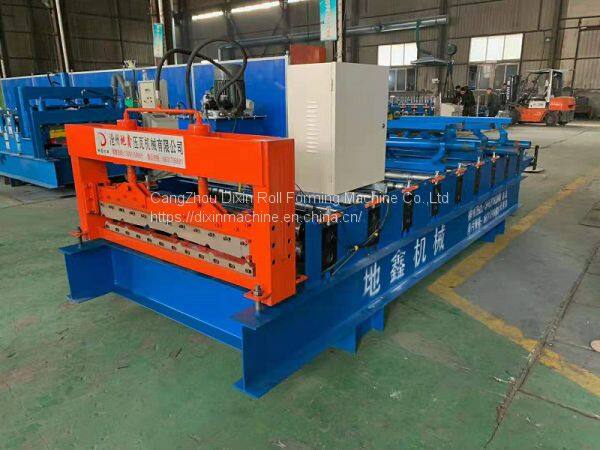

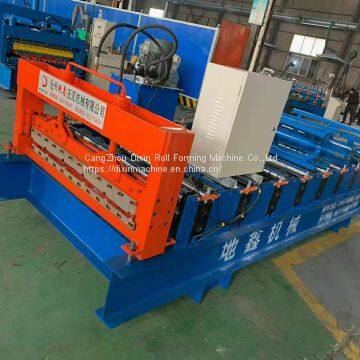

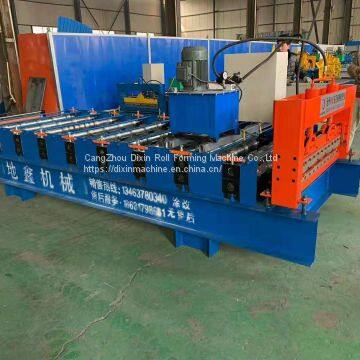

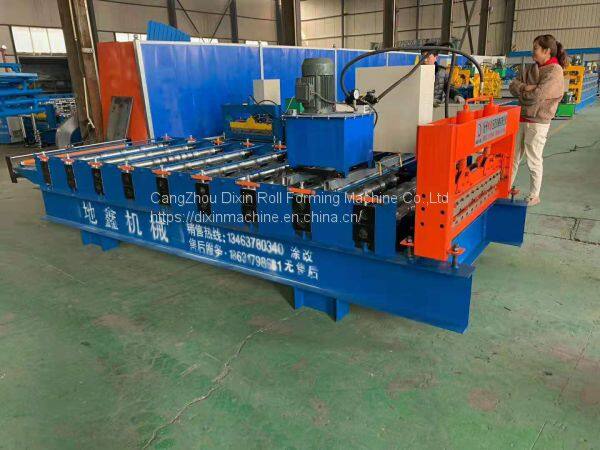

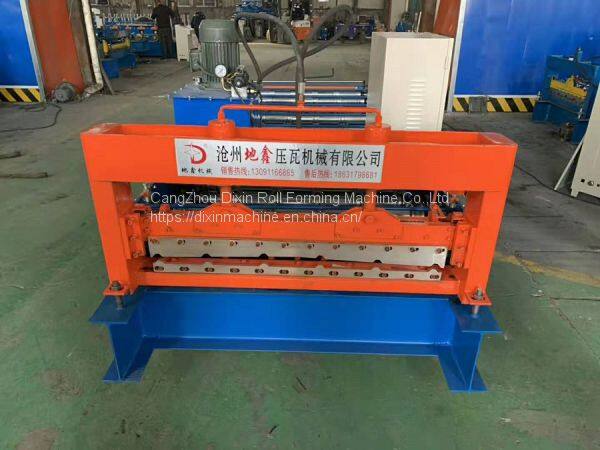

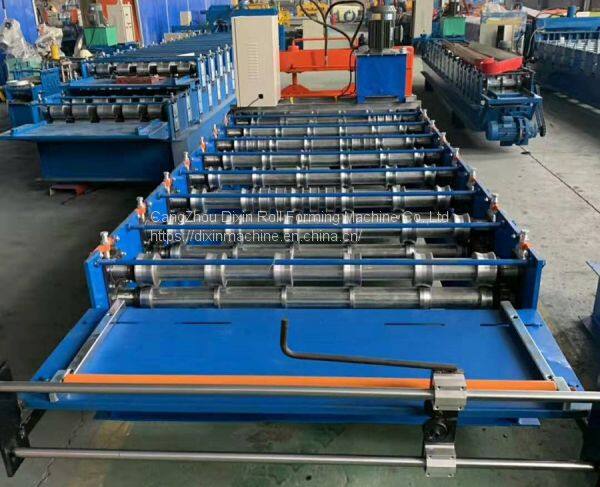

DX-900 trapezoidal roof and wall Fully automatic roll forming machine

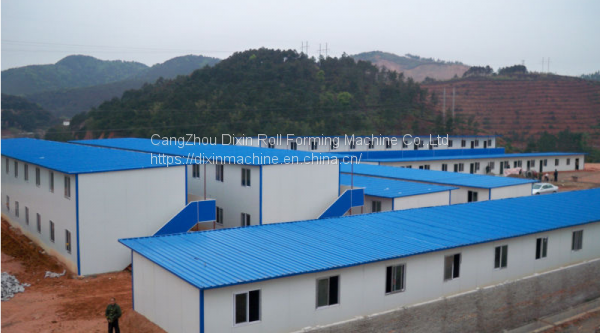

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
| Frame Structure | Steel Plate Welded |
| Roller Flatting System | let the feeding fluently |
| Installation Dimension | 8500mm*1400mm*1500mm |
| Machine Under Frame | 350H-beam |
| Sidewall Plate Thickness | 16mm |
| Roller Stations | 11/16Steps |
| Shaft Diameter | 70mm |
| Main Shaft Material | 45# steel with finish turning ; |
| Roller Material | 45# Forging Steel with Chromium Plate; |
| Chromium Plate Thickness | 0.05mm |
| Motor Power | 3/5.5kw |
| Reducer Type | 8#Cycloidal Planetary Gear Speed Reducer |
| Chain Wheel and Cycle Chain | 1 Inch |
| Roll forming Speed | 15-20m/min (adjusted with frequency changer). |
| Frequency Converter | Delta |
| Voltage | 3phase/380V/50Hz (For confirmation ) |
| Hydraulic Pump Station | 3Kw |
| Cutting Length Tolerance | 10m ±1mm; |
Working flow
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
1. We can produce the specialmachine,send your drawing to us,we can desgin for you.
2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100
4. Engineer available to service machinery overseas.
5. If you come to visit our factory ,we can book the room for you,car pick up to send.
Warm prompt
We can produce too many types roofing panels roll forming machine ,especially according to your request to produce.
you need provide panel drawing,feeding width,effective width,and materials thickness,
then we can send you more machine details.please feel free contact me.
