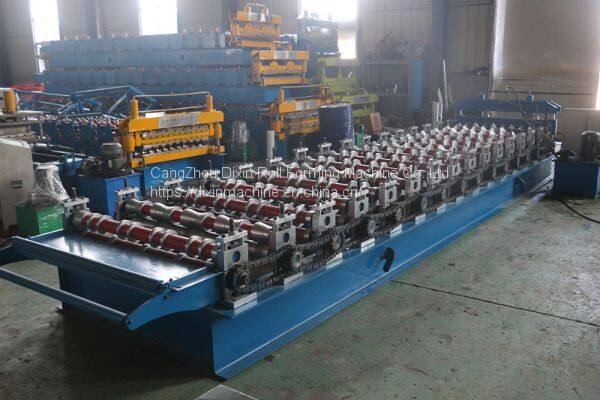

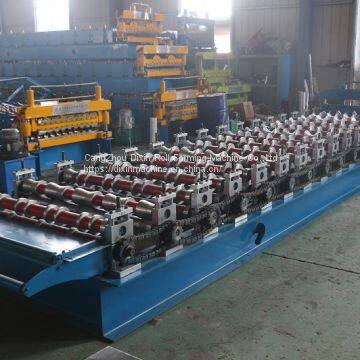

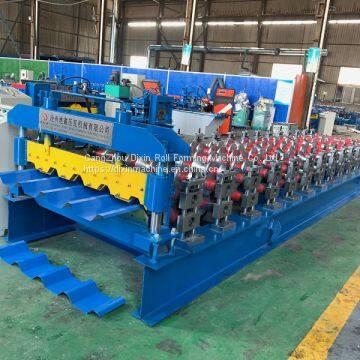

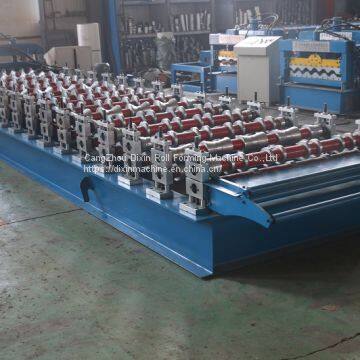

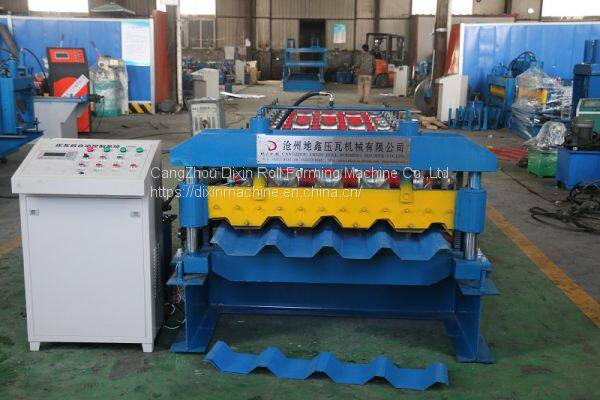

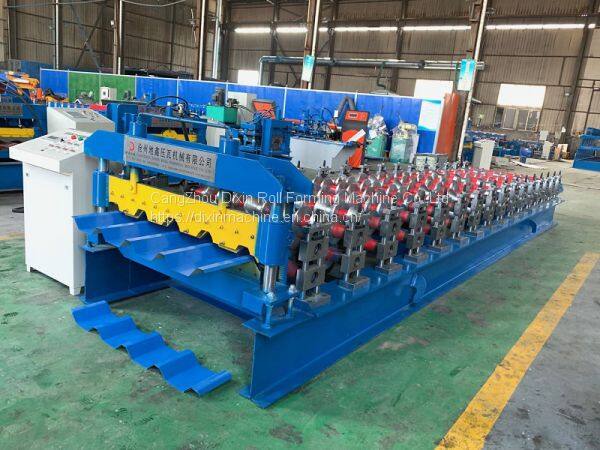

Automatic iron sheet trapezoid roof wall plate cold roll forming machine
Working flow
| Frame Structure | Steel Plate Welded |
| Roller Flatting System | let the feeding fluently |
| Installation Dimension | 8500mm*1400mm*1500mm |
| Machine Under Frame | 350H-beam |
| Sidewall Plate Thickness | 16mm |
| Roller Stations | 11/16Steps |
| Shaft Diameter | 70mm |
| Main Shaft Material | 45# steel with finish turning ; |
| Roller Material | 45# Forging Steel with Chromium Plate; |
| Chromium Plate Thickness | 0.05mm |
| Motor Power | 3/5.5kw |
| Reducer Type | 8#Cycloidal Planetary Gear Speed Reducer |
| Chain Wheel and Cycle Chain | 1 Inch |
| Roll forming Speed | 15-20m/min (adjusted with frequency changer). |
| Frequency Converter | Delta |
| Voltage | 3phase/380V/50Hz (For confirmation ) |
| Hydraulic Pump Station | 3Kw |
| Cutting Length Tolerance | 10m ±1mm; |

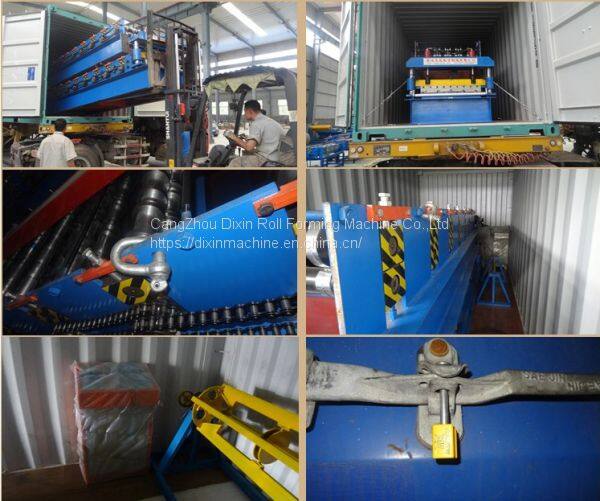

1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
Roll forming machine maintenance for the life of color-coated steel tile roll forming machine use has a very important meaning, if you do not want your device to the problem of premature or should be replaced according to the method given below us maintain and maintenance, so not only can improve the life of your color steel roll forming machine will save all kinds of economic losses due to damage caused by color steel tile press for you.
1. should be strictly in accordance with the requirements of the operating instructions to operate on the ban did not use machines or novice direct induction operation.
2. Each boot time to regularly check the adequacy of lubricating oil, check the oil if there is deterioration of the situation.
3. Color tile press equipment should be kept clean, regular color steel roll forming machine for dust protection.
4. Check the color steel tile press of a variety of connectors or fasteners are loose or dropped off, problems to deal with in a timely manner.
5. Regularly check the repair switch, insurance, handle, to ensure its reliable operation.
6. strict rules for safe working practices standard operating personnel, regular training basics of color steel tile press and prevent personal safety.
