Help CenterHigh Efficiency Crawler Type Hydraulic Drilling Rig
Related Products
-
Full Hydraulic Engineering Crawler Anchor Drilling RigUS$ 40000 - 50000MOQ: 1 Set -
Crawler Pneumatic Rotary Water Well Drilling RigUS$ 13000 - 20000MOQ: 1 Set
-
XY-200 Meters Deep Crawler Mobile Drilling Rig Drill 200m Drilling RigUS$ 3000 - 10000MOQ: 1 Set
-
100m Crawler Mounted Water Boring Borehole Well Drilling Rig MachineUS$ 2500 - 4000MOQ: 1 Set
-
Cheap XY-1A 100 Meters Deep Water Well Drilling Rig MachineUS$ 2000 - 4000MOQ: 1000 Sets

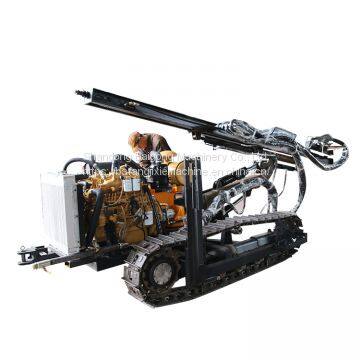

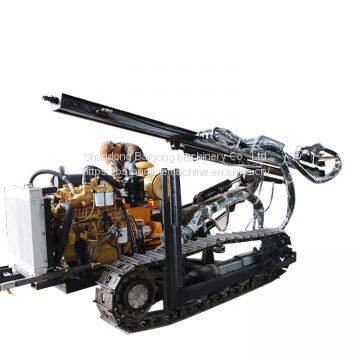

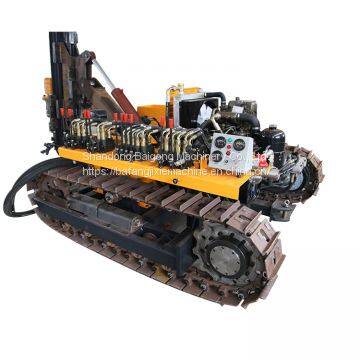

The crawler type DTH drilling rig, also known as the DTH drilling rig, is mainly used for rock drilling work in open pit mining, road construction, water conservancy, power station and other projects. Adopting new hydraulic technology, the air consumption is low, the turning torque is large, the shifting hole is convenient, and the propulsion carriage has the telescopic function. When the drilling is carried out, the carriage is supported on the ground with good stability.
Technical parameters |
Unit |
910B |
920B |
940B |
Applicable rock hardness |
F |
6-20 |
6-20 |
6-20 |
Drilling diameter |
mm |
80-105 |
80-105 |
165 |
Drilling depth |
mm |
25 |
25 |
25 |
Walking speed |
Km/H |
2 |
2 |
2 |
Climbing capacity |
° |
≤30 |
≤30 |
≤30 |
Dimension |
mm |
4100×2030×2020 |
4400×2200×2050 |
5400×2330×2400 |
Total weight |
Kg |
3400 |
4000 |
6800 |
Min ground clearance |
mm |
254 |
290 |
320 |
Luffing Angle of the slide |
° |
Overlook 118.5 look up 23.5 total 142 |
Overlook 135 look up 50 total 185 |
180 |
Maximum swing angle of the carriage |
° |
Left 36.5 Right 11.5 total 48 |
Left 100 Right 45 total 145 |
Left 36 right 89 |
Drill arm pitch angle |
° |
Overlook 20 look up 15 total 35 |
Overlook 50 look up 25 total 75 |
-25-45 |
Drill arm swing angle |
° |
· |
Left 44 right 45 total 89 |
±45 |
Compensation length |
mm |
900 |
900 |
1200 |
One push length |
M |
2 |
3 |
3 |
Working pressure |
MPa |
0.63-1.2 |
0.7-1.7 |
1-2.4 |
Air consumption |
M³/min |
9-13 |
9-13 |
＞15 |
