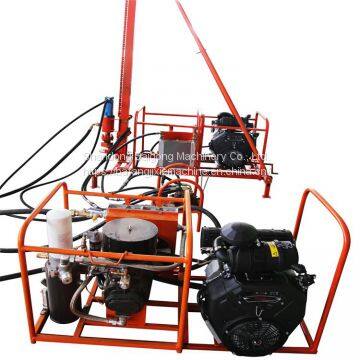

The mountain rig is mainly used for exploration drilling of complex surface such as mountain, loess, hill, Gobi and farmland. The rig is fully hydraulically driven, and the mountain area mainly uses air drilling and air shock drilling. In other areas, the replacement of the drill can achieve spiral drilling, and the addition of a mud pump can achieve mud drilling.
Technical Parameters | Unit | BF-30 | |
Drilling depth | M | 30 | |
Drilling method | Air shock, mud drilling, auger | ||
Drilling diameter | Air shock drilling | mm | 70-90 |
Mud drilling | mm | 75-90 | |
Drill pipe (diameter × length) | Air shock drilling | mm | Ø60×1500 |
Mud drilling | mm | ||
Rated torque | N·M | 800-900 | |
Drilling speed range | r/min | 0-135 | |
Add pressure | KN | 5.5-6 | |
Drill lifting force | KN | 12-16 | |
Drilling tool maximum lifting speed | M/s | 0.71-0.81 | |
Engine power | Kw | 35 | |
Rotating speed | r/min | 3600 | |
flow | L/min | 0-60 | |
Work pressure | MPa | 20 | |
Air compressor unit | model | Fuel injection screw | |
Air volume | M³/min | 3.8 | |
Work pressure | MPa | 0.8 | |
System oil temperature | ℃ | 15-80 | |
