Scotch Professional Grade Vinyl Insulation Electrical Tape

Scotch Professional Grade Vinyl Insulation Electrical Tape photo-1

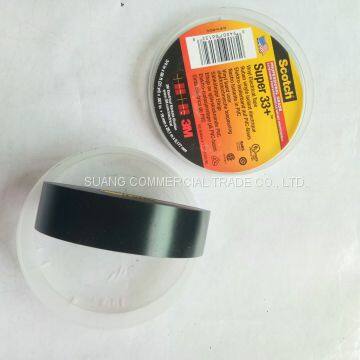

Scotch Professional Grade Vinyl Insulation Electrical Tape photo-2
Scotch Professional Grade Vinyl Insulation Electrical Tape photo-3

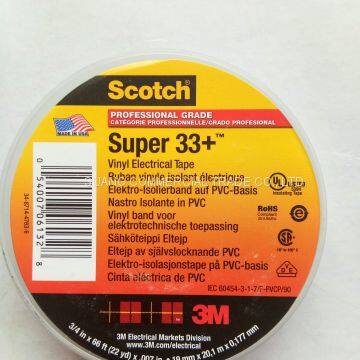

Scotch Professional Grade Vinyl Insulation Electrical Tape photo-4

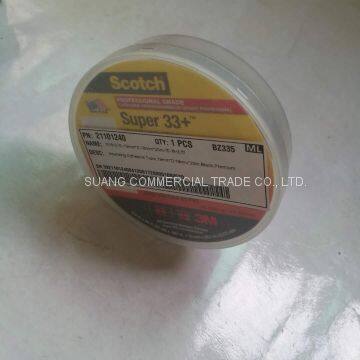

Scotch Professional Grade Vinyl Insulation Electrical Tape photo-5
US$ 5.5 - 6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
3M
Place of Origin:
China
Model Number:
33+
Payment & Shipping
Payment Methods:
Port of Shipment:
Guang Zhou, Tian Jin
Delivery Detail:
3 days
Brand Name 3M
Place of Origin China
Model Number 33+
Product Description

1• Primary electrical insulation for all wire and cable splices rated up to 600 volts and 105°C (220°F).
2• Primary electrical insulation for 600 volt bus applications, and protective jacketing for low and high voltage bus.
3• Protective jacketing for high voltage cable splices and repairs.
4• Harnessing of wires and cables.
5• Compatible with solid dielectric cable insulations.
6• Compatible with rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins.
7• Inhibits corrosion of electrical conductors.
8• For indoor or outdoor applications.
9• Resist: UV ray, abrasion, corrosion, acid, alkalis, moisture
10• It can be used in the cold weather condition (working temperature:-18°C (CSA) ~ 105°C (CSA))
11• Pass SGS test

Product Feature



mechanical features

Typical value

working temperature:

-18°C(CSA) ~ 105°C(CSA)

Color:

black

Thickness:

7 mils (0.18mm)

Maximum tensile:

250%

Breaking strength:

151bs/in





Viscosity to the steel:

28oz./in(22°C, 72°F);  60 oz./in(-18°C, 0°F)

Viscosity to the base:

25oz./in(22°C, 72°F);  60 oz./in(-18°C, 0°F)

FR:

1 sec Max(UL510)

Thermal shock:

pass 168hrs.113°C, non-crackle, non- corrosion afer thermal shock

Cold shock:

pass 2hr,-10°C, non-crackle. non-corrosion after cold shock



Electrical Specification

Typical value

Voltage level:

600V(UL510)

Dielectric strength:

1150v/mm

Dielectric resistence

>10 12 Ω

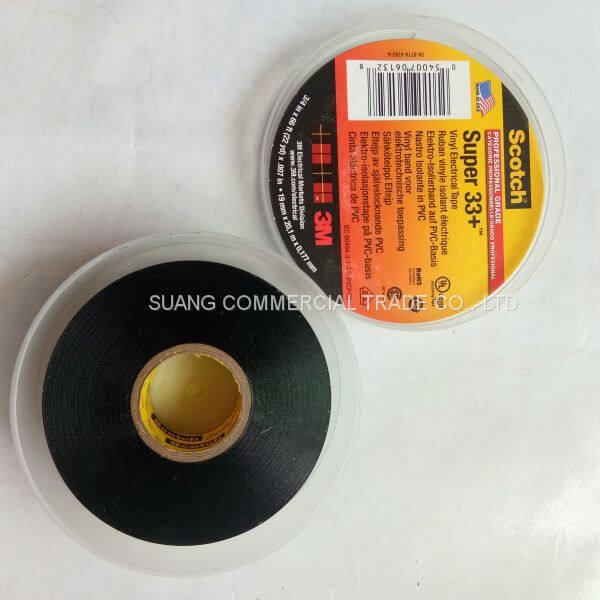

Product Pictures
