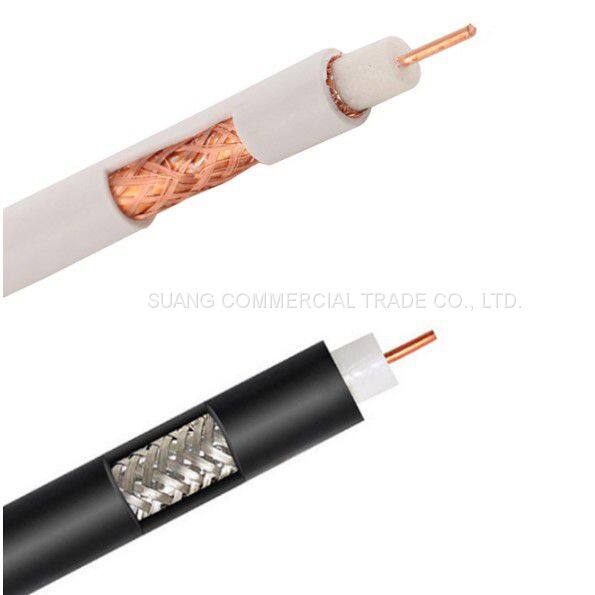

RG8 / RG213/U coaxial cable specifications | |
Material of Inner Conductor |
Bare Copper |
Structure of Inner Conductor |
7/0.724mm |
Material of Insulation |
Solid PE |
Diameter of Insulation |
7.24mm |
Material of Braiding(Shielding) |
CCA, Bare Copper, Tinned Copper |
Structure of Braiding(Shielding) |
168*0.15mm |
Material of Jacket |
PVC |
Diameter of Jacket |
10.30mm |
Working temp |
-40℃/80℃ |
Impedance |
50Ω±2 |
Voltage |
4000V |
Weight |
160KG/KM |
Lead time:
We have a lot of stock ,If the quantity isn't very big , we can send the goods as soon as possible after recieve payment.If big quanity, the lead time need according to the quantity.
Transporting:
If small quantity, usually send by courier (DHL,FEDEX,TNT and so on) . If big quantity, we advice ship by air or by sea. this will use longer time ,but cheaper fees. We are near the port of TianJin.
Our service:
We can offer the sample. If the quality is good, we can offer very very competitive price .And can pack according to customer's requirment.
1. Could i put my own logo on it?
> Sure, of course,we have over 18 years OEM experience,customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2. Should i pay extra for logo printing ?
> If you order amount over out MOQ for OEM package,all OEM fees would be free,if you want to make a trial order,we need to charge a very little fees for the printing and cartons.
3. How about the quality?
We import DU POND brand PA66 nylon raw material from USA,we make sure good quality from the most important factor.
> Acquire the CE & FDA Certification.
> 100% QC in produce process and before package.
4. Could i buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition.
5. How much for 1pc sample ?
> we will send 1 bag for free
6. If i have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7. How long to make a sample?
> 3days which depends on the samples' complexity.
