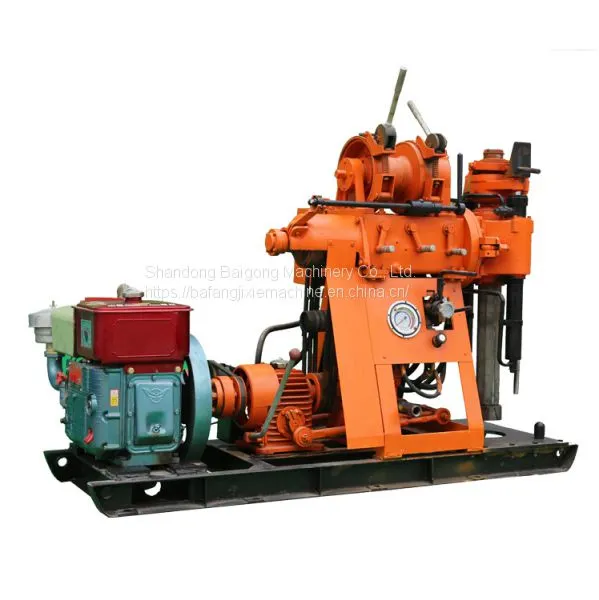

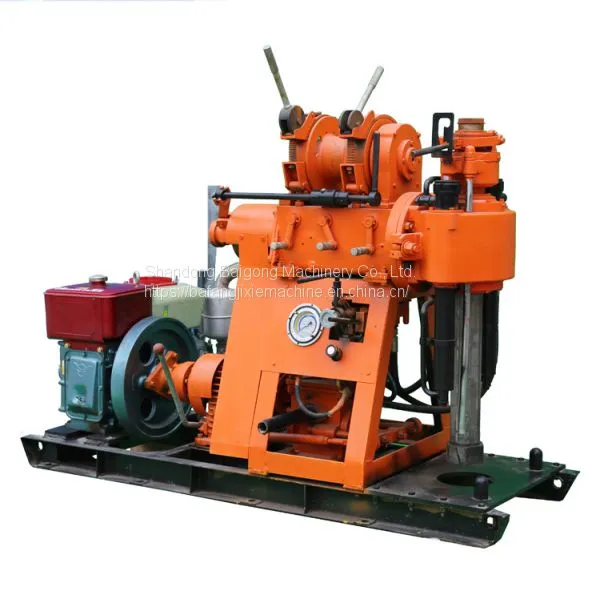

XY-2 Core drilling machine
Product description:
The XY-2 Kilometer is a lightweight shallow hole rig with oil pressure feed. Suitable for census exploration, geophysical exploration, road and building exploration, and small well drilling.
1. It has automatic hydraulic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2, using the ball card type clamping mechanism, can achieve non-stop bar, easy to operate, safe and reliable.
3, the handle is concentrated, easy to operate. It is equipped with a bottom pressure gauge to indicate the pressure, which is convenient for grasping the inside of the hole.
4. Compact structure, the rig, water pump and power machine (diesel or electric motor) are assembled on the same base, occupying a small area of the airport. Light weight, high decomposability and easy to move.
Technical parameters：
Drilling depth |
600 |
Drilling angle |
0-360 |
Vertical shaft stroke mm |
600 |
Through hole diameter mm |
65 |
Through hole diameter KN |
60 |
Vertical shaft maximum pressure |
20KN |
Max. pulling force KN |
70 |
Max. torque KN |
300 |
Winch max. lifting force |
30KN |
Motor power |
22KW |
Diesel engine（kw） |
33 |
Dimension mm |
2150×900×1800 |
Weight (without power) |
950KG |
