U12 Copper Type Conductor Busbar Current Collector for Crane
US$ 8 - 11
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
MARCH
Place of Origin:
China
Model Number:
MCCBII-AL
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan
Delivery Detail:
7 days
Related Products
-
U12 Safe Conductor Bar Current Collector for Hoist Crane Moving MachineUS$ 8 - 11MOQ: 10 Pieces -
Hoist Crane Moving Machine U12 Type Safe Conductor BarUS$ 8 - 11MOQ: 10 Pieces
-
Single Conductor Bar 160a 200a 320a 400a Aluminum Conductor BarUS$ 9.8 - 25.69MOQ: 10 Pieces
-
160a 200a 320a 400a Aluminum Single Conductor Busbar With Current Collector CE CCC ISO CertifictaionUS$ 9.8 - 25.69MOQ: 10 Pieces
-
CE CCC ISO Certifictaion 100A 160A 320A Single Conductor Busbar With Current CollectorUS$ 9.8 - 25.69MOQ: 10 Pieces
Brand Name
MARCH
Place of Origin
China
Model Number
MCCBII-AL

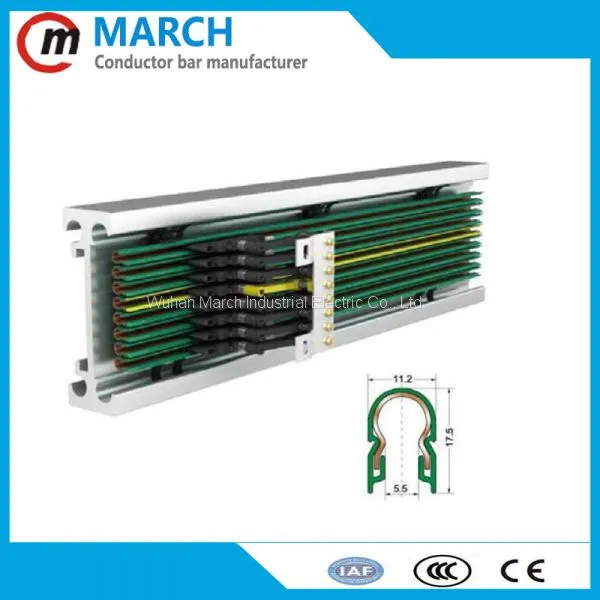

U12 Copper type conductor busbar current collector for crane
Product Description

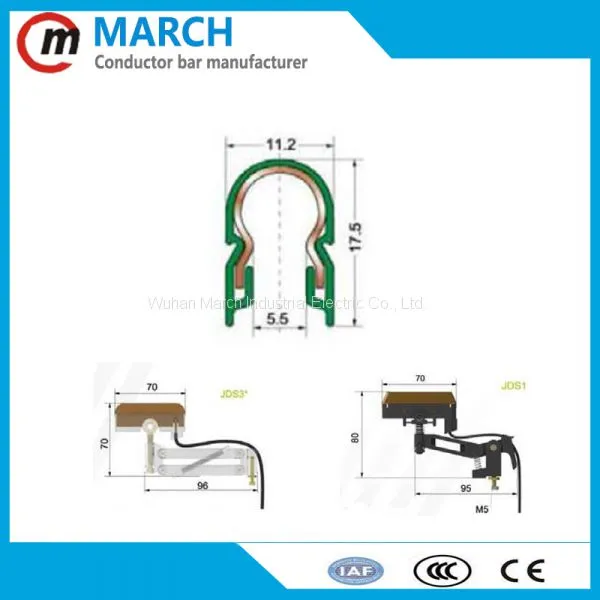

Engineering data
| conductor rail type | Cross sectional area | Leakage distanc of covers | max.voltage | Continuous ampere capacity | resistance |
| U12/25C** | 25 | 30 | 600 | 100 | 0.745 |
| U12/25F** | 25 | 30 | 600 | 40 | 5.415 |
| U12/25E** | 25 | 30 | 600 | 10 | 31.56 |

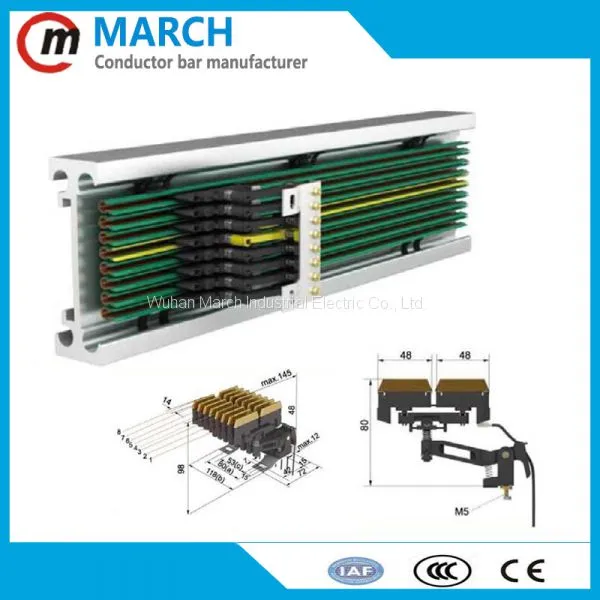

Compact Double collector
1 Plug terminal 20A
2Plug terminal 2×20A
Swivel:±15mm lift:±15mm
contact pressure 3.5N per brush
ground at NO.4, other position on request.
| Type | poles | a | b | c | weight(kg) | Cat.NO. | |
| JDS2-1/40-1 | 1 | 80 | 118 | - | 0.165 | 663201 | |
| JDS2-2/40-2 | 2 | 80 | 118 | - | 0.245 | 663202 | |
| JDS2-3/40-3 | 3 | 80 | 118 | - | 0.325 | 663203 | |
| JDS2-4/40-4 | 4 | 80 | 118 | - | 0.405 | 663204 | |
| JDS2-5/40-5 | 5 | 80 | 118 | - | 0.495 | 663205 | |
| JDS2-6/40-6 | 6 | 80 | 118 | - | 0.575 | 663206 | |
| JDS2-7/40-7 | 7 | 80 | 118 | 53 | 0.735 | 663207 | |
| JDS2-8/40-8 | 8 | 80 | 118 | 53 | 0.825 | 663208 | |
| JDS2-9/40-9 | 9 | 80 | 146 | 53 | 0.925 | 663209 | |
| JDS2-10/40-10 | 10 | 80 | 146 | 53 | 1.005 | 663210 | |
| JDS2-11/40-11 | 11 | 120 | 174 | 80 | 1.125 | 663211 | |
| JDS2-12/40-12 | 12 | 120 | 174 | 80 | 1.205 | 663212 |
Compact collector
1, 1Plug terminal 40A
2, Swivel: ±15mm lift:±15mm
3, contact pressure 3.5N per brush
4, ground at NO.4, other position on request.
Packaging & Shipping
Payment : T/T, L/C, paypal
Packing :Wooden case or carton
Delivery time: 7-15 Working days after confirm the order
