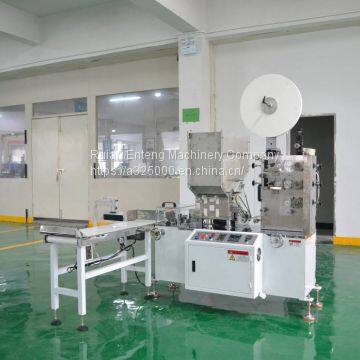

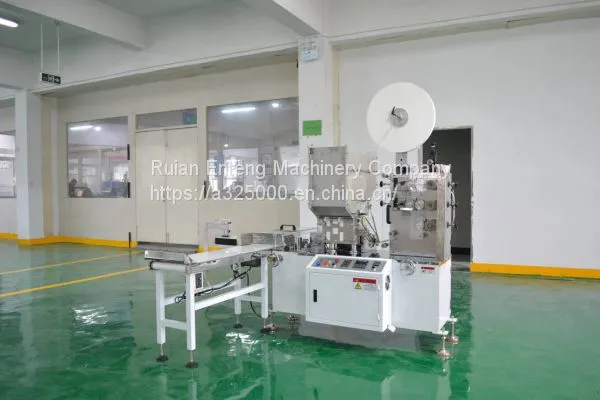

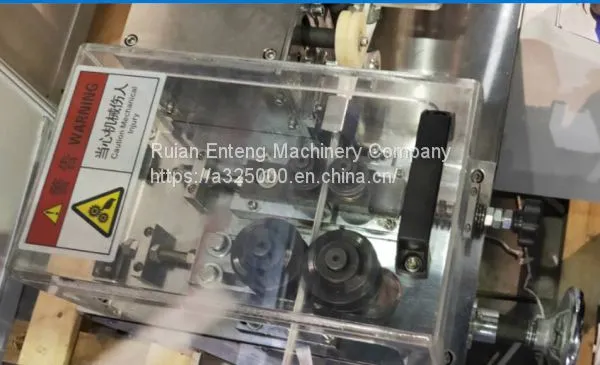

Straw Single Packing Machine with 2 Colors Printer
- 2147483647 Bag / Bags per Month
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Description

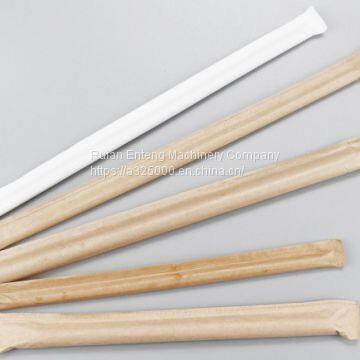

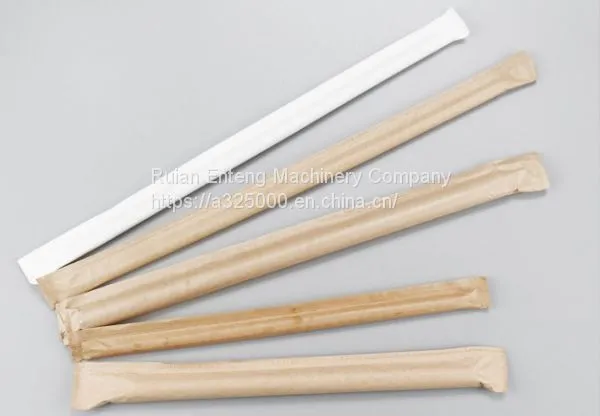

This machine is used to packing drinking straws in three sides sealing bag, printing function is available when using paper as packing material.
Characteristics:
1.Having two colors printing device can be chosen
2.With automatic product counting function, product quantity may pre-set, once the pre-set value is reached. the machine will give an alarm. And the dam-brush will separate each set quantity packaged straw.
3.Printing, feeding, and packing can complete in one processing.
4.Packing straw length is adjustable within a certain range.
Specification
Drink Straw Diameter(mm) | 5-12mm Need change some parts. |
Straw Length(mm) | Standard: 190-210mm Extra mould: 170-260mm By change the sealing and cutting mold, printing cylinder |
Packing Model | Paper type: wrap paper Sealing type: 3 side sealing 25-30mm;Paper width: 25-30mm |
Production Speed | With printing:300pcs/min Without printing>400pcs/min |
Printing | Printing Color:Double Colour Printing type: flexographic 2.38mm; Thickness of plate (Including Two-sides Glue Paper): 2.28mm+double-sided adhesive 0.1mm(3M Brand)=2.38mm |
Paper Unwinding Frame | 1SET Tension adjust:Mechanical tension device, adjusted by manual Wrap paper roller core size:3inch,4.7inch |
Straw feeding hopper | Material :Stainless steel frame, Plexiglass: Adjustable to match straw length Straw down device:induction and swing arm Feeding model:by chain feeding |

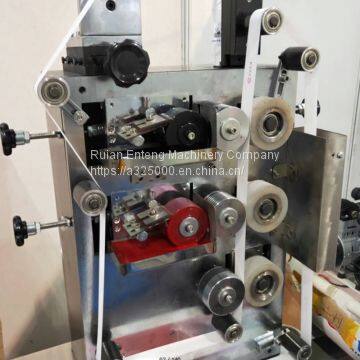

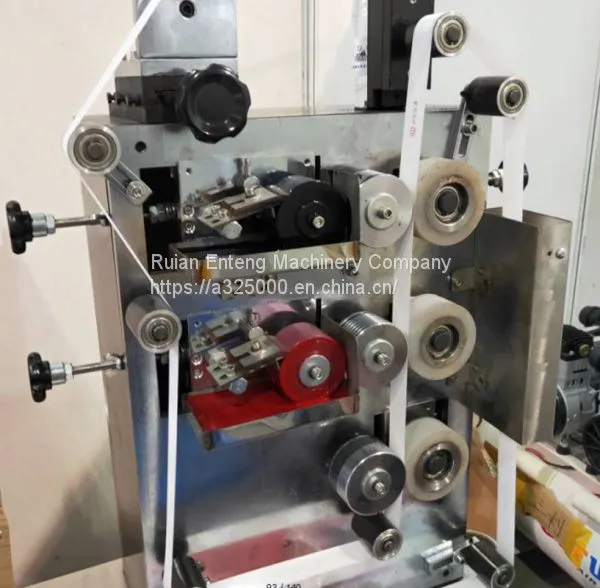

Printing Unit |
Single/Double Color Power transmission :By chain Between printing unit: By gear Traction unit:1sets, rubber roller and chrome plated roller Printing unit:Ink container, anilox roller, doctor blade, printing cylinder, rubber roller Dry unit:1SET , by hot air, with temperature color register:By manual |

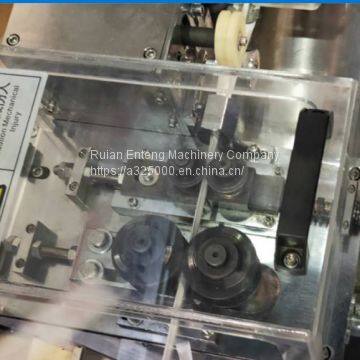

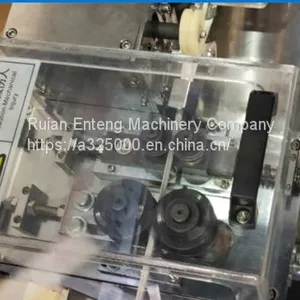

Sealing and Cutting Parts | Lengthways sealing:Sealing roller-on couple,pressure adjusted by manual Horizontal:Sealing roller-on couple,pressure adjusted by manual, with cutting knife-one couple Material:mould steel |
Conveyor Belt | 1set, Synchronous reduction motor+ controller Counter dam-brush: one set, lifting by pneumatic cylinder |
Controller | Counter and buzzers:1set,HUALI Brand Controlling inverter: 1.1KW Schneider Temperature controller:1set,KEQIANG Brand Low-voltage electric parts: Schneider |
Total Power (Kw) | 1.5 (220V) |
Over size (mm) | 1900×1000×1600 (L×W×H) |
Weight (Kg) | 400 |
