Product Introduction

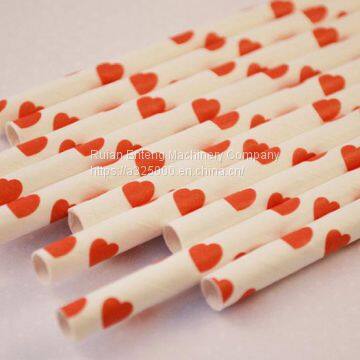

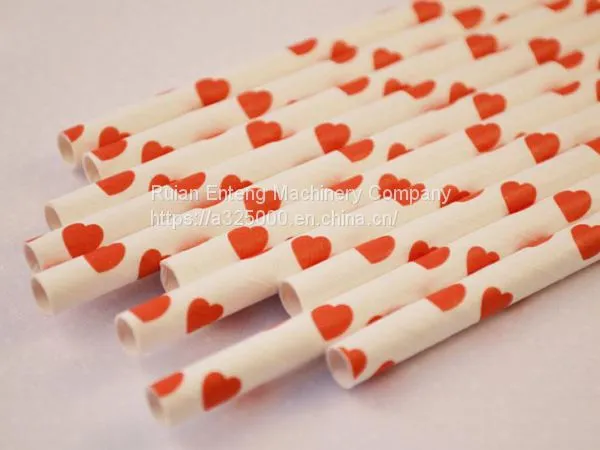

   This Machine is suitable for producing different sizes ofpaper straws, such as 5mm; 6mm; 8mm, 10mm etc.

  1. Adopted with PLC controller, main motor is equipped with variable frequency speed regulation, touch screen man-machine interface.Easy for parameters setting & operating.

  2. Cutting section adopted with numerical multi-blades cutting system.Servo synchronous tracking cutting system makes it higher precisionand multi-blades cutting makes it higher efficiency

  3. Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.



                 Technical Parameter

                   Control System

Paper Layer

3 layers

Motor

3.0kw (1.5kw * 2pcs)

Inner Diameter

5-12mm

Motion Controller

Panel Master

Wall Thickness

0.3-1mm

Operating Panel

Panel Master

Stable Speed

1-40m/min.

Language

English

Winding Nose

Two noses single belt

Inverter

3.7kw Schneider

Machine & parts

Painting

Electric Components

Schneider

Length fixing

Encoder

Pneumatic Components

Jingwei

Speed Control

By Inverter

Servo Motor

Schneider

Cutting System

Multi-blades; 5 pcs online

Servo Driver

Schneider

Synchronism tracking cutting system

Servo motor synchronism tracking

Screw Rod

Shangyin


Slider

Shangyin

Paper straw collecting

Manually

Bearing

Haerbin

Operator

1-2 person

Configuration

Working Air Pressure

0.6Mpa

Paper Reel Stand

3 Layers

Power Supply

380V / 3phases / 50 Hz

Gluing Unit

3 Layers

Measurement & Weight

Belt

5 Pieces

Measurement

3500*1500*1200mm

Mandrel Shaft

2 Pieces

Working Space

7000*5000mm

Extra blades

5 Pieces

Weight

1300kgs

Useful Tool

1 Set








Our service

1. One year guarantee time.

2. Present a set of wearing parts in wooden case before delivering the machine for free.

 If parts (except wearing parts) are broken within guarantee time they will be changed for free.
 (it is not caused by human factor)

The client should pay for the cost following:



     1. Visa fee

     2. Air ticket

     3. Diet

     4. Accommodation

     5. Labor fee:50 USD/day (within guarantee time)

        100 USD/day (without guarantee time)
