Halnn BNK30 Brazed CBN Turning Inserts Continuous Machining Brake Disc With High Speed

Halnn BNK30 Brazed CBN Turning Inserts Continuous Machining Brake Disc With High Speed.

1. Advantages of BNK30 grade CBN inserts processing brake disc.

(1) BNK30 grades have high hardness and good wear resistance, which is 15 times to 20 times that of cemented carbide tools.

(2) Can withstand high-speed cutting, the highest line speed can reach 2000m / min, improve production efficiency

(3) The CBN tool adopts the method of dry cutting. It does not add cutting fluid, and the chip is easy to be recycled, which is more in line with “green manufacturing”.

2. CBN grade finishing gray cast iron brake disc end face.

Machining workpiece: brake disc(GG25)

Processing: Finishing

Processing part: end face (brake surface)

Tool number: BN-S300 SCGN090408

Machining method: double CBN inserts processing end face at the same time

Cutting parameters: Cutting depth (ap)=0.25mm,

Feed rate(Fr)=0.2mm/r,

Cutting speed(Vc)=800m/min

Processing method: dry cutting

Tool material

Inserts type

Line speed

Single edge life

3. Cutting parameters for BNK30 graded brake discs.

Machining workpiece

Cutting speed

 Vc（m/min）

Cutting depth

Ap (mm)

Feed rate

Fr（mm/r）

CBN inserts grade

brake disc

200-700

(Roughing)

1-10

0.2-1

BNK30

300-2000

(Finishing)

≤1

0.05-0.3

BNK30

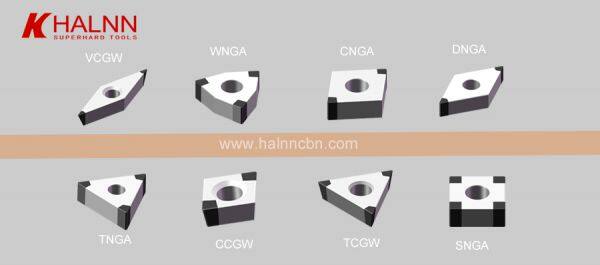

4. Pictures
