Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Large Diameter Grinding Disc Water Well Drilling Rig

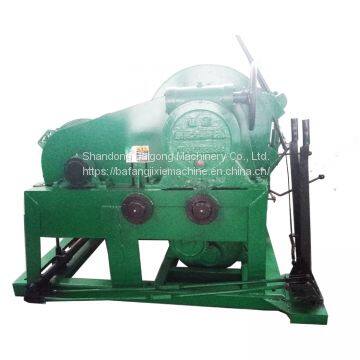

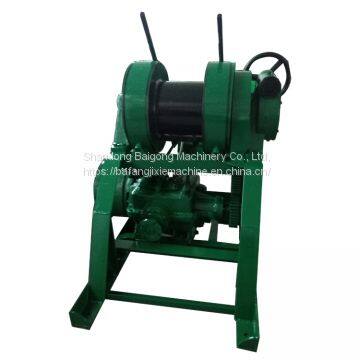

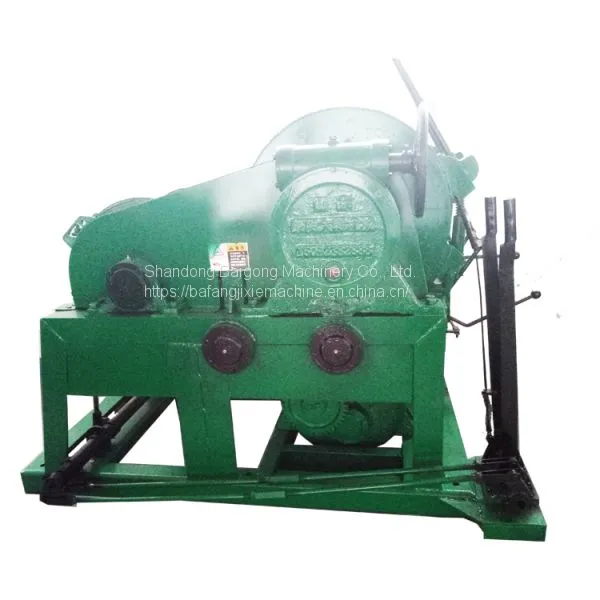

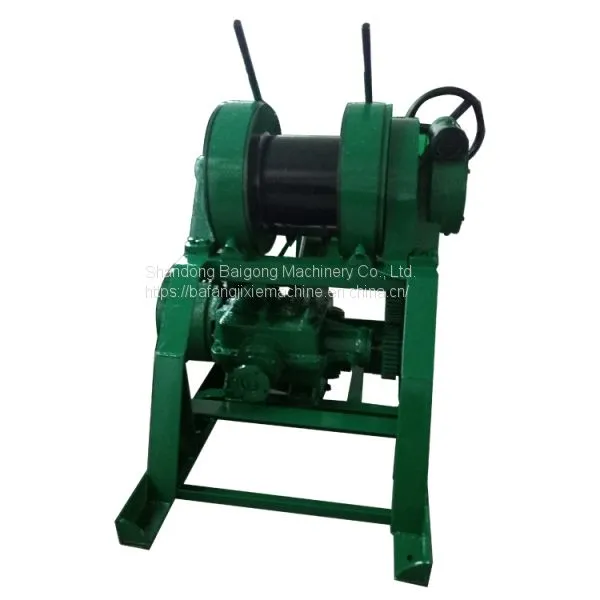

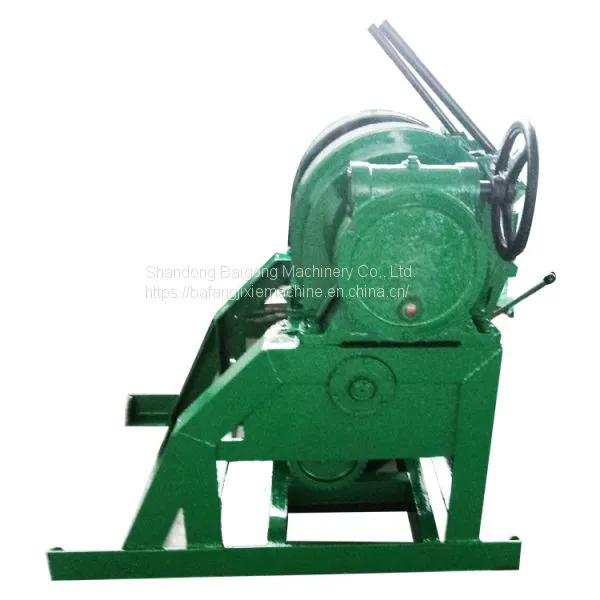

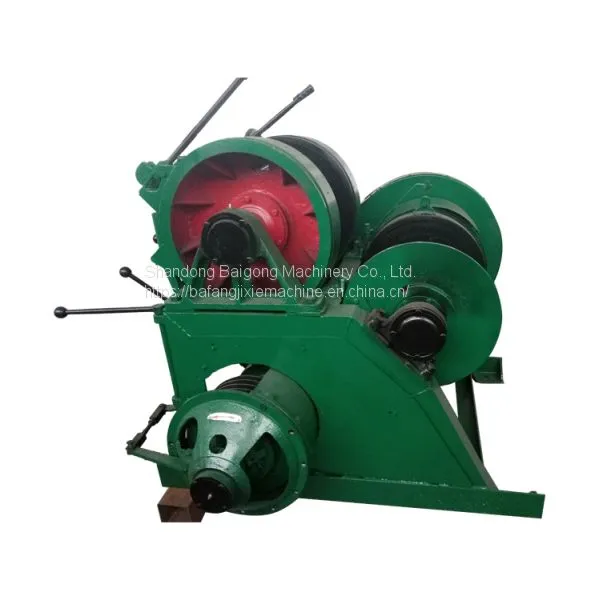

Large Diameter Grinding Disc Water Well Drilling Rig
US$ 10000 - 150000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Bai Gong
Place of Origin:
China
Model Number:
SPJ-400
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Crawler Type Open-air Drilling Rig / Hydraulic Drilling Rig Supports Various ModelsUS$ 1400 - 2400MOQ: 1 Set -
XY-200 China Supply Mounted Water Well Drilling Rig MachineUS$ 1000 - 5000MOQ: 1 Set
-
Backpack Core Sampling Drill Rig- Portable Drilling RigUS$ 3000 - 5000MOQ: 1 Set
-
100m Folding Hydraulic Diesel Motor Well Drilling RigUS$ 1500 - 2000MOQ: 1 Set
-
High Quality Small Water Well Drilling Rig Drill 80mUS$ 500 - 1500MOQ: 1 Set
Brand Name
Bai Gong
Place of Origin
China
Model Number
SPJ-400
Type
Core Drilling Rig
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
6500kg
Dimension(L*W*H)
8400*2050*8000mm
Power Type
Electric
Voltage
220v
Usage
Coal
Condition
New
Power(W)
13w
SPJ-400 engineering drilling rig, also known as grinding disc drilling machine, is suitable for drilling operations in water conservancy projects, pile foundation engineering and bridge tunnel engineering.
Technical parameters |
Unit |
SPJ-400 |
Drilling diameter |
mm |
500-1800 |
Drilling depth |
M |
400\50 |
Max. output torque |
KN·M |
18 |
Main drill pipe |
mm |
108×108×4000 |
Drill pipe |
mm |
89×4200、127×108×4200 |
Lifting capacity of main hoist |
KN |
30 |
Lifting capacity of Secondary hoist |
KN |
20 |
|
Spindle inner diameter
|
mm |
500-1200 |
rotary speed |
r/min |
40、70、128 |
|
The vertical height of tower
|
M |
8.6 |
Weight |
T |
6.5 |
Dimension |
mm |
8400×2050×8000 |
