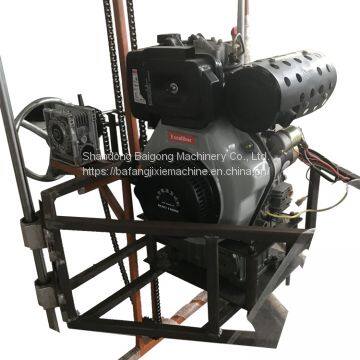

Efficient and Practical Tree-planting Digging Machine Tripod
Application
(1) The ground auger is widely used for planting digging in the seedling garden greening projects on slope, sand, and hard land, the peripheral unearthed of digging up big trees, digging holes of fence buried pile, fertilization burrowed of fruit trees, intertilling and weeding of landscaping projects, etc.
(2) The ground auger digs not less than 80 pits/h, and can dig 640 pits one day counted by 8 working hours, that is, it works more than 30 times as much as manual work.
(3) For intertilling and weeding, the digging width is greater than 50 centimeters, and the area is not less than 800 square meters/h, really accomplishing full automatic operation process.
Technical Parameter
Parameter |
unit |
JZ-2500 |
|
Drilling depth |
mm |
2500-2650 |
|
Drilling tower height |
mm |
2200-2500 |
|
Max drilling diameter |
mm |
400 |
|
Optic axis diameter |
mm |
25 |
|
Optic axis quantity |
pc |
3 |
|
Gasoline engine model |
170F |
190F |
|
displacement |
Ml |
212 |
420 |
Power |
Kw |
4 |
8.5 |
Gasoline engine type |
Single cylinder 4 stroke |
||
Cool type |
Air cool |
||
Rated speed |
r/min |
3600 |
|
Max torque |
N·M |
||
Fuel tank capacity |
L |
3.6 |
6 |
Gasoline |
92# |
||
Weight |
Kg |
180 |
200 |
Reduction box ratio |
1:10 |
||
Reduction box weight |
Kg |
17 |
|
Start type |
Hand start |
||
Transfer motion type |
Reducer optical axis chain drive |
||
Gasoline packing size |
mm |
510×410×470 |
660×600×970 |
Drilling machine packing type |
Thickening thin film |
||
Advantage
High efficiencyJZT-2500 Tripod Earth Auger is very powerful, a hole of 10-40cm in diameter and 80-250cm in depth can be finished digging in 10 seconds -5 minutes, which means the efficiency is hundreds times more than traditional manual digging.
High operating qualityAnti-tensile tripod positioning drill rod equipped with high strength drill bit, maximum drilling depth can reach 2.5m, and the drilling hole is straight, solid with less soil left inside.
Easy to operateAll digging works can be done by a single operator.The tripod hole digger is small in size, easy to operate at narrow space
High practicabilityCan be well used to drill holes on hills, mountains and other complex terrain areas, applicable for drilling on loess layer, clay layer, soil layer with cobblestone and sand gravel, and other geology.
Wide application scopeIt is widely applied in telecom and electric power project, municipal engineering, landscape works, building operations, solar photovoltaic industry, etc.
