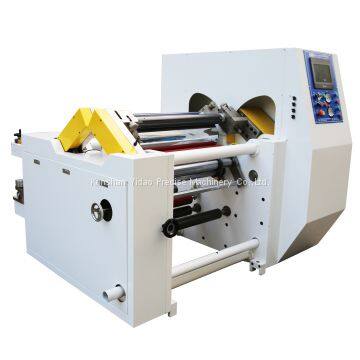

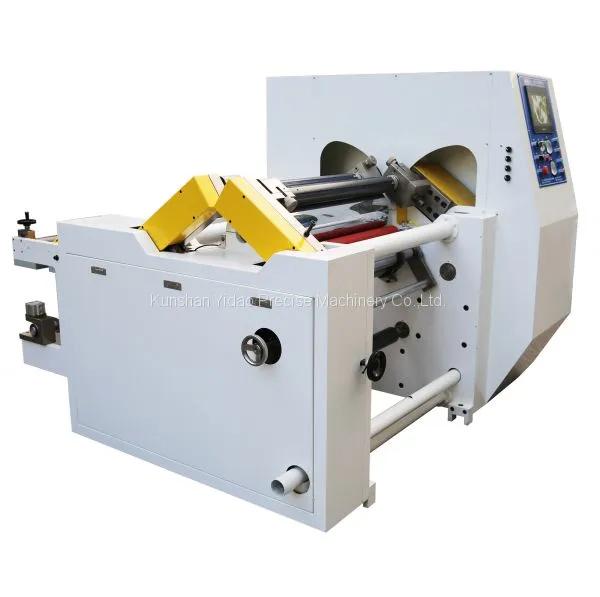

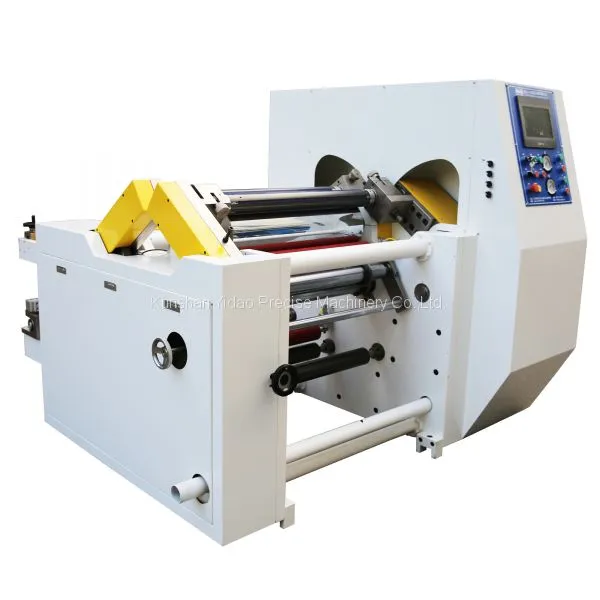

Help CenterYDZX-700F Centre Surface Slitting and Rewinding Machine for Paper,film, Aluminum Foil
Related Products
-
YD-650FQ PET,PP,PVC Film Slitting and Rewinding MachineNegotiableMOQ: 1 Set -
High Speed Paper Big Roll Slitting MachineNegotiableMOQ: 1 Set
-
Precision DT4C Cold Rolled Coil Slitting Machine for Automotive PartsNegotiableMOQ: 1 Ton
-
PUR Hot Melt Adhesive Machine, Pipeline Constant Temperature Insulation, Durable, and Able to Pass Through Pipes With 3 Slits and 4 Slits, Edge Sealing MachineCNY 400 - 500MOQ: 1 Piece
-
Durable Cold Rolled Pure Iron Slitting Compatible With CNC Machines for Accurate Metal FabricationNegotiableMOQ: 1 Ton
Features:
1. The machine is controlled by Mitsubishi PLC and Weinview touch screen, on which working parameters can be preset and operation status can be displayed.
2. Three Mitsubishi servo motors and servo drivers are used for linkage control with high speed and stable tension.
3. Magnetic powder brake is used for unwinding tension.
4. Equipped splice table with pneumatic web clamps .
5. Using the encoder automatic meter counter device, when it reaches the preset length, the machine will automatically stop .
6.The unwind system has EPC/LPC device.
7. The rewind press roller system adopts combined device of discontinuous movement and air pressure auxiliary control to ensure minimum distance between press roller and products, and also to ensure different materials converting.
8. Slitting blade can use upper-lower round knife, razor blade for different material slitting.
9. blower fan for waste collect.
Applications:

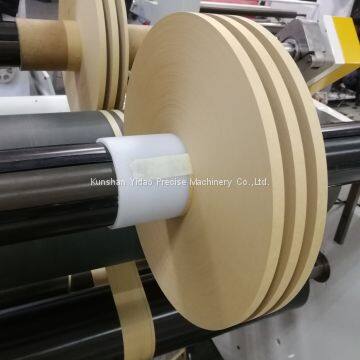

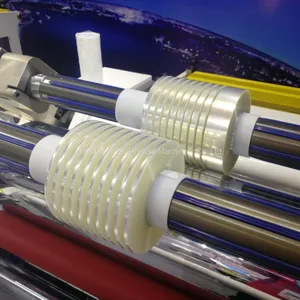

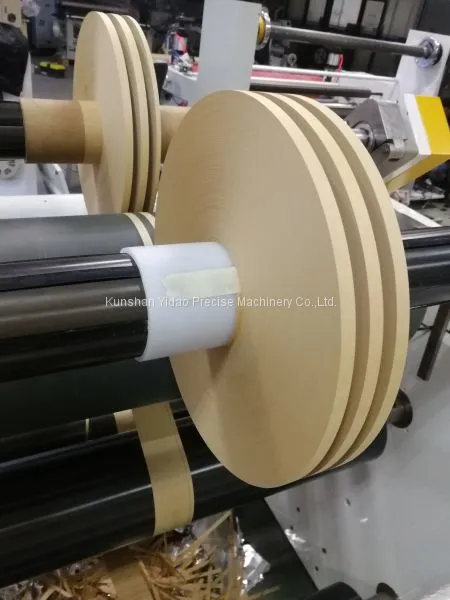

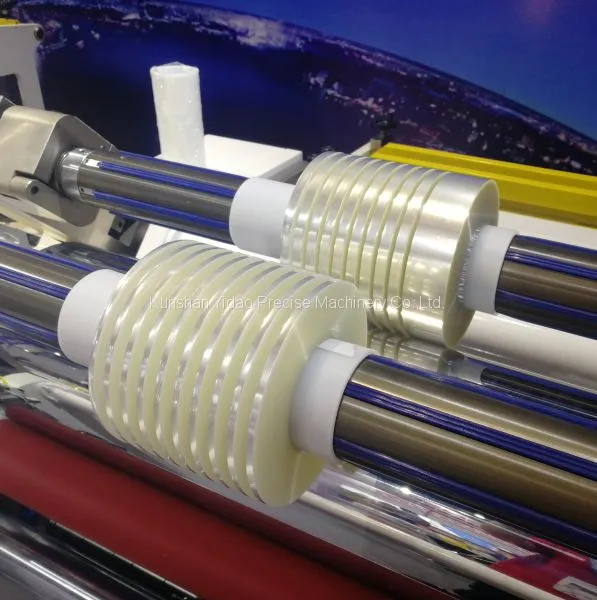

It is suitable for slitting and rewinding all kinds of paper, film, copper foil, aluminum foil and other materials.Such as PVC, PE, PET, adhesive tape,release paper and other materials.
Main technical parameters:
Model No. |
YDZX-700F |
Web working width |
700mm |
Min slitting width |
5mm |
Slitting speed |
0-200m/min |
Inner core size |
3” |
Voltage |
380V 50HZ |
Power |
9KW |
Machine size |
2200*1880*1600mm |
