High Speed Paper Big Roll Slitting Machine

High Speed Paper Big Roll Slitting Machine thumbnail-1
High Speed Paper Big Roll Slitting Machine thumbnail-2
High Speed Paper Big Roll Slitting Machine thumbnail-3
High Speed Paper Big Roll Slitting Machine thumbnail-4
High Speed Paper Big Roll Slitting Machine thumbnail-5
High Speed Paper Big Roll Slitting Machine photo-1
High Speed Paper Big Roll Slitting Machine photo-2
High Speed Paper Big Roll Slitting Machine photo-3
High Speed Paper Big Roll Slitting Machine photo-4
High Speed Paper Big Roll Slitting Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YDCN
Place of Origin:
China
Model Number:
YDGS-1300F
Contact Supplier Request Quote Chat Now
Kunshan Yidao Precise Machinery Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YDCN
Place of Origin China
Model Number YDGS-1300F
Certification CE
Type Slitting Rewinder
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Condition New
Computerized Yes

Features:

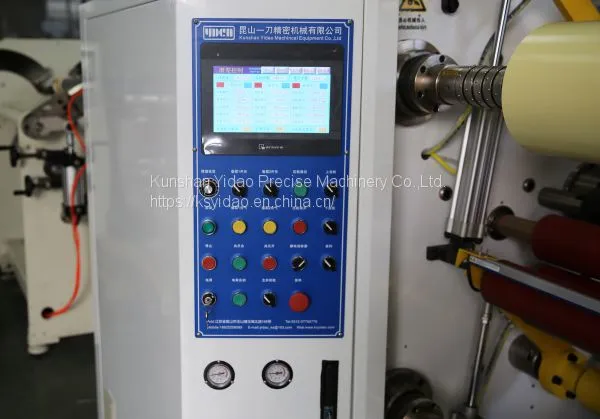

1. The machine is controlled by Mitsubishi PLC and Weinview touch screen, on which working parameters can be preset and operation status can be displayed.

2. Three YASKAWA Variable-frequency Drive and servo motors are used for linkage control with high speed and stable tension.

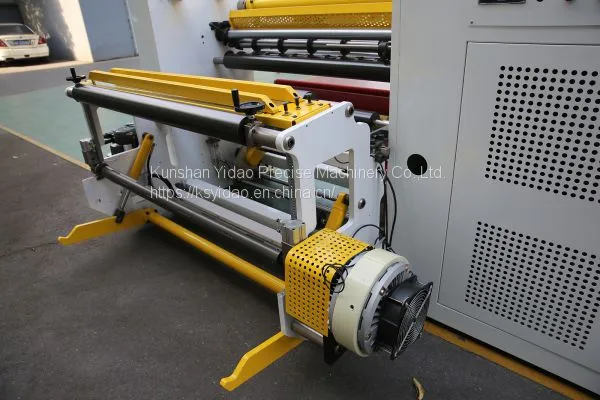

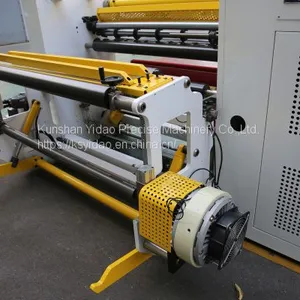

3. Using automatic hydraulic loading system,saving time and labour.The unwinder can stands 1500KG roll materials

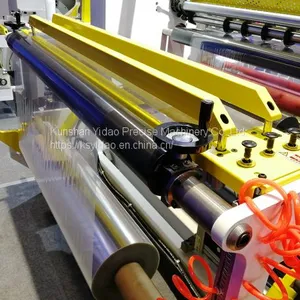

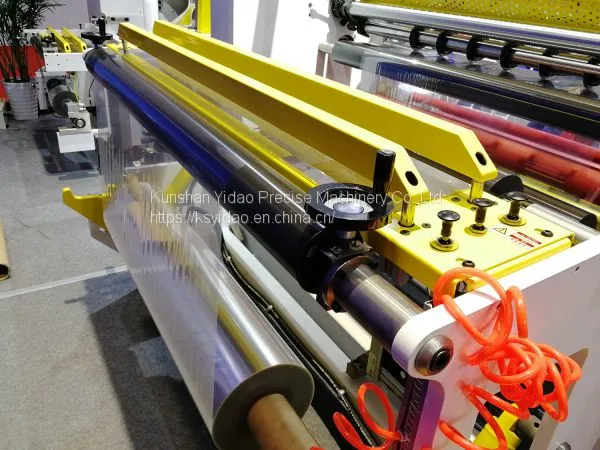

4. Equipped splice table with pneumatic web clamps .

5. Independent servo control system is used for web control

6. Equipped with SMC proportional valve and top reducing valve,the tightness of winding material can be well adjusted during the process of automatic tension of differential slip shaft.

7. All driving shafts are treated with dynamic/static balance to ensure the stability and accuracy of material transfer and slitting process

8. Using the encoder automatic meter counter device, when it reaches the preset length, the machine will automatically stop .

9. The waste is collected by movable 3 inch air shaft.

10. The machine's wallboard and parts are customized by CNC, which ensures the stability of the machine and the accuracy of slitting.


Application:

It is suitable for slitting and rewinding all kinds of plastic film(PVC，OPP，PET，CPP) ,paper,fiberglass, copper foil, aluminum foil ,label,non-woven fabric and other large roll materials.


Main technical parameters:

Model No.

YDGS-1300F

Web working width

1300mm

Max rewinding diameter

450mm

Slitting width

20-1300mm

Slitting speed

0-300m/min

Inner core size

3 inch

Slitting precision

±0.5mm

Power

16KW

Machine Weight

2500kg




Product Tags: slitting machine , paper slitting machine , high speed slitting machine
