BN-H11 Brazing PCBN Cutting Inserts Continuous Turning Hardened Steel Gear Wheels

FOB Price

US$ 10 - 30 / Piece

10 Pieces(Min. Order)

Port Ningbo
Payment TermsT/T L/C PayPal Other Cash
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Halnn tools		Place of Origin	China
Model Number	WNGA & CNGA & CCGW

Product Description

BN-H11 Brazing PCBN Cutting Inserts Continuous Turning Hardened Steel Gear Wheels

1. Why is the gear after quenching difficult to machine?

(1) After hardening, the hardness of the gear is generally about HRC58-62. The traditional cutting tools can't be processed, or the wear is too fast.

(2) Some gears are intermittent, such as oil holes on the end face or grooves in the inner hole are all belong to interrupt cutting, the traditional tool is easy to collapse;

(3) There are a small number of heavy interrupt gears, that is the machining of the gear tooth surface. Only CBN tools are suitable for machiningdes.

2. Halnn CBN tools solutions for hard turning gear.

There are many types of hardened steel. In the face of different workpieces, only the correct cutting tool can be selected to solve the problem better and more effectively, and improve the processing efficiency. Halnn has developed different tool grades for the hardened steel gears. The specific grades are as follows:

CBN grade	Processing	Cutting depth	Cutting condition	Workpiece hardness
BN-H21	finishing	≤0.5mm	Semi-interrupt heavy interrupt	HRC62-HRC68
BN-H20	Semi-finishing	≤1mm	Semi-interrupt	HRC45-HRC63
BN-H11	Semi-finishing	≤1mm	Continuous	HRC45-HRC63
BN-H10	finishing	≤0.5mm	Continuous-Semi interrupt	HRC45-HRC68
BN-H05	finishing	≤0.2mm	Continuous	HRC45-HRC68

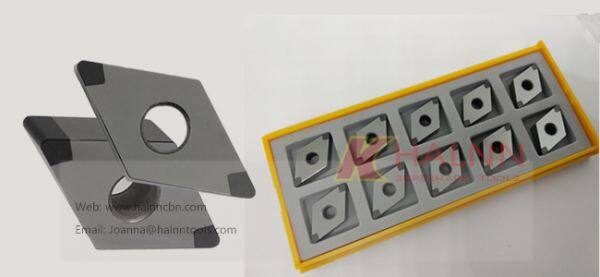

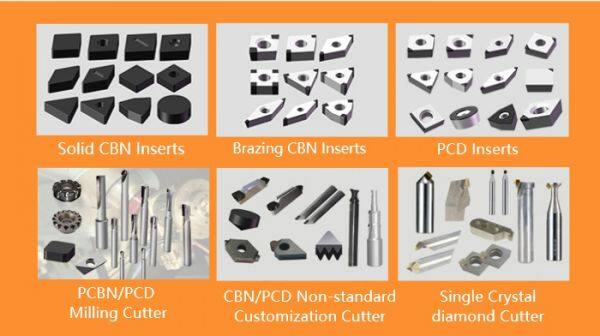

3. Pictures

4. Packing

5. Contact us.

Email: halnnemma@gmail.com

Whatsapp: +86 155 3719 5787

Wechat:155 3719 5787
