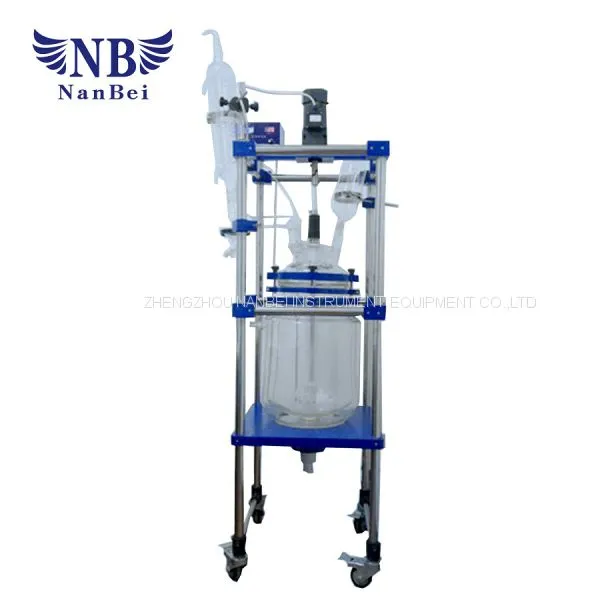

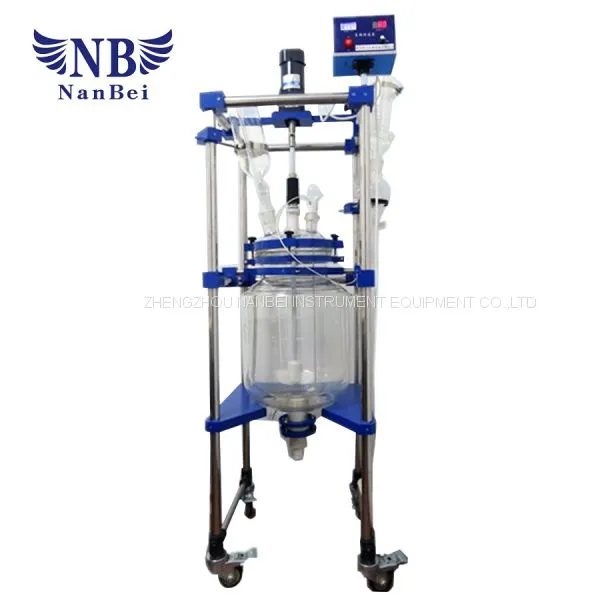

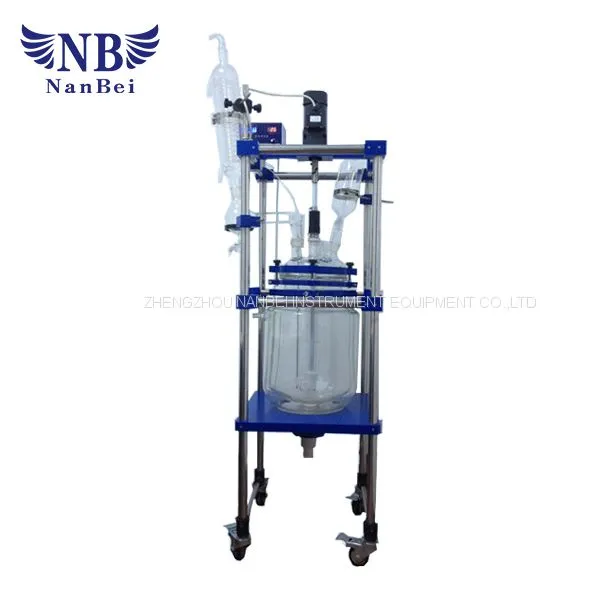

Lab jacketed glass reactor with anti-explosion
Features about glass reactor:
1.A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2.Limit temperature of 250ºC for high temperature experiments, and limit temperature of -60ºC for low temperature experiments.
3.Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4.The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5.Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuouswor.k.
6.Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7.The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.
Parameters about glass reactor:
| Models | NBGR-5L | NBGR-3L | NBGR-2L | NBGR-1L |
| Vocume(L) | 5 | 3 | 2 | 1 |
| Power(w) | 90 | 60 | 60 | 60 |
| Speed(rpm) | 20-600 | |||
| Mixing torque(1300r/min) | 5000g.cm | 5000g.cm | 5000g.cm | 2400g.cm |
| Inside and outside tube diameter | 200*230 | 200*230 | 150*180 | 150*180 |
| Size(cm) | 44*32*84 | 44*32*84 | 44*32*84 | 35*27*65 |
Double glass reactor(10L-100L):
Parameters:
| Models | NBGR-100L | NBGR-50L | NBGR-30L | NBGR-20L | NBGR-10L |
| Volume(L) | 100 | 50 | 30 | 20 | 10 |
| Power(w) | 200 | 120 | 90 | 90 | 90 |
| Speed(rpm) | 20-600 | ||||
| Mixing torque(1300r/min) | 22000g.cm | 22000g.cm | 15000g.cm | 15000g.cm | 7200g.cm |
| Inside and outside tube diameter | 460*500 | 360*405 | 315*360 | 315*360 | 245*260 |
| Size(cm) | 118*110*250 | 100*105*240 | 61*41*190 | 61*41*180 | 50*41*160 |
If you need pump vacuum and heat liquid that circulate in the interlayer,you could choose other two equipments:
water circulating vacuum pump and high temperature circulator.
Standard Configuration
| No. | Name | Qty | Remark |
| 1 | Jacketed glass reactor body |
1 set | For material mixing and reaction |
| 2 | Motor | 1 set | Speed:30~600RPM(adjustable) |
| 3 | Speed governor | 1 set | LCD display, you can read temperature and time directly. |
| 4 | Glass reactor cover | 1pcs | For reactor body |
| 5 | Reactor metal frame | 1 unit | For install reactor |
| 6 | Glass Condenser | 1pcs | For Distillation and condensation |
| 7 | PTFE feeder | 1pcs | Discharge (can be removed) |
| 8 | PT100 thermometer | 1pcs | Test the temperature in the reactor body |
| 9 | Constant pressure funnel |
1pcs | Feeding in a vacuum condition |
| 10 | PTFE mixer shaft | 1pcs | The inner diameter of the material is stainless steel, PTFE material outsourcing |
| 11 | Distillation condensate elbow |
1pcs | Connect cover and Condenser,used for separating and concentrating |
| 12 | Vacuum plugs | 2pcs | For sealing |
| 13 | Vacuum suction head | 1pcs | For extracting the air within the reactor, to obtain a vacuum |
