Laboratory Science Heating Melting Electric Resistance Furnace 12L
Brief introduction of muffle furnace:
Box-type resistance furnace which is also know as muffle furnace; it's the basic heating equipment for laboratory use. Its wide application areas covering industrial & mining enterprises, scientific research institutes, universities, laboratories and other experiments purpose. The resistance furnace is the necessary equipment for sintering, melting and heat treatment of the material and volatile experiments.
Features of NANBEI muffle furnace:
1. The use of modern integrated structure design, elegant, easy to operate.
2. The door structure patented technology (patent number: ZL 2007 2 0028142.4), all-round sealed door. Make sure that the furnace temperature does not leak, to improve the working environment, to extend furnace life, and save energy.
3. The selection of high-purity alumina fiber furnace heating elements use Chinese steel wire wreath furnace, ensure long-term life of the furnace and reliable, stable
4. The enclosure is external double furnace structure, with cavity insulation, ventilation, and many other powerful international advanced design concepts to ensure that the surface temperature of the furnace is far below the national standard
5. The furnace has an exhaust port, an atmosphere favorable sintering process, flue gas recirculation, exhaust
6. Insulation materials imported high-quality ceramic fiber, 60% energy saving than traditional materials, light weight, good insulation effect.
7. The control system consists of 6-inch color LCD touch screen + PLC system components
Bi-lingual interface, man-machine dialogue, easy manipulation,
Has 60 segments and a single point of temperature-programmed heating mode, the heating and cooling curves displayed in real time and the freedom to control the heating rate
Recipe management program to solve the troubles common user settings. 10 raised by a group of independent users recipe editing, the user's convenience
Temperature control system has self-tuning, self-diagnostic functions
8. The temperature sensor is a stainless steel sheathed thermocouple, in line with national standards
9. A door open power protection system that can effectively protect the safety of operating personnel
10. The over-current and furnace surface temperature protection system to ensure safe operation of equipment
11. After having restored power supply line anti-resistance furnace heating continued function to avoid unattended calls heating caused by other accidents
12. The product has anti-tip devices, can effectively ensure the safety of operating personnel and other equipment
13. Door and stove mouth made of high quality 304 stainless steel, has a capacity to engage in oxidation.
Additional Equipment
Flue
The air intake system (for inert gas);
Paperless recorder.
Optional Equipment & Accessories
Crucible;
Crucible tongs;
The furnace bottom plate
Technical parameters
| Name of Section | Model | |||
| SX2-2.5-12TP | SX2-5-12TP | SX2-6-12TP | SX2-8-12TP | |
| Internal Size & Holding Capacity | 200mm*120mm*80mm(2L) | 300mm*200mm*120mm(7.2L) | 300mm*200mm*200mm(12L) | 400mm*300mm*300mm(36L) |
| Design Temperature | 1200ºC | 1200ºC | 1200ºC | 1200ºC |
| Operating temperature | 1100ºC | 1100ºC | 1100ºC | 1100ºC |
| Temperature accuracy | ±1ºC | |||
| Heating rate | ≤40ºC/min | |||
| Temperature Control System | PLC + 6 inches color touch screen (60 / single point temperature programmed heating) |
|||
| Furnace chamber & shell thermocouple index | K/K stainless steel sheathed | |||
| Operating Voltage | AC220V/50Hz | Triphase AC380V/50Hz | ||
| Heating power | 2.5KW | 4KW | 5KW | 8KW |
| Dimensions | 590mm*390mm *640mm |
680mm*520mm *660mm |
680mm*520mm *730mm |
850mm*720mm*920mm |

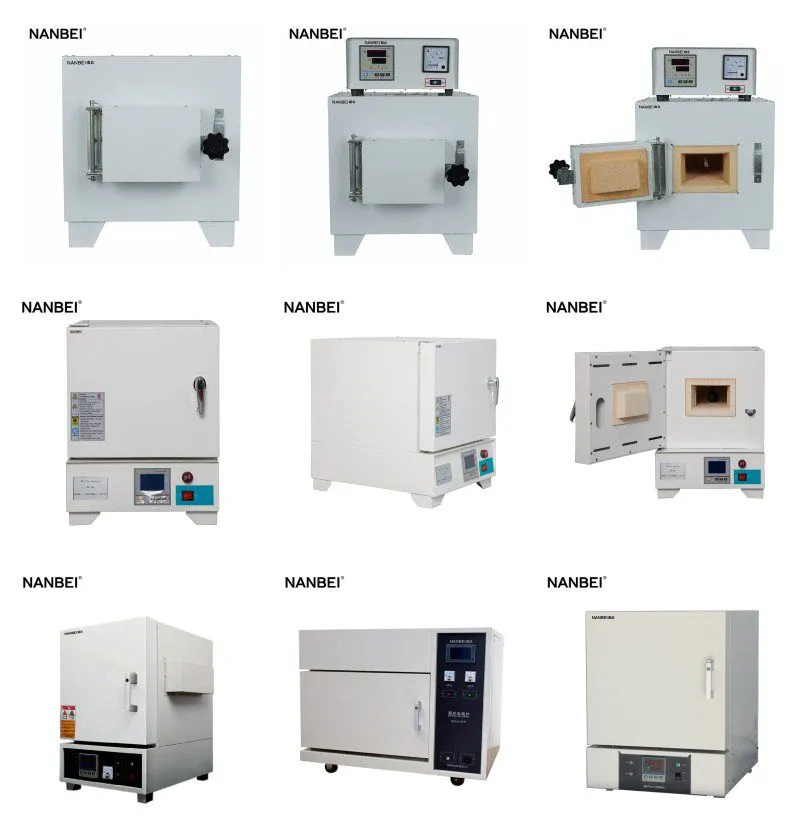

Other types
