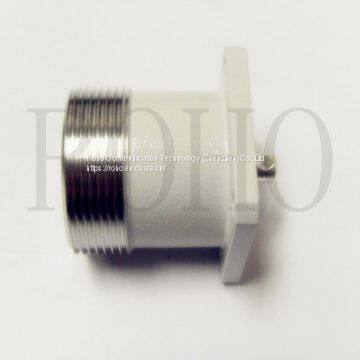

RF Coaxial Female Jack 32mm Sq Flange Mount 7/16 DIN Connector With M*3 Thread Pin
US$ 0.37 - 6.45
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Port of Shipment:
Shenzhen
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
RF Coaxial 7/16 DIN Male to N Type Male Connector AdapterUS$ 0.57 - 6.45MOQ: 100 Pieces -
DIN 7/16 L29 Plug Male to Female Jack RF Coaxial ConnectorUS$ 0.57 - 6.45MOQ: 100 Pieces
-
Male Plug 32mmsq Flange Mount 7/16 DIN Connector With Extended 7mm Insulator and 3mm PinUS$ 0.47 - 4.45MOQ: 100 Pieces
-
F Connector Brass Material L29 7/16 DIN Female Flange ConnectorUS$ 0.47 - 4.45MOQ: 100 Pieces
-
RF Coaxial 7/16 DIN Male/Plug Connector Clamp for Rg213/LMR400/Rg214 CableUS$ 0.47 - 4.45MOQ: 100 Pieces
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency Range | 0-7.5GHz |
| Dielectric withstanding voltage (at sea level) | 4000 V rms,50Hz |
| Working voltage (at sea level) | 2500 V rms,50Hz |
| Insulation resistance | ≥ 100000 mΩ |
| Contact resistance | Inner conductor: ≤0.4mΩ |
| Outer conductor: ≤1.5mΩ | |
| RF leakage (at 1 GHz) | ≥128dB |
| MECHANICAL DATA | |
| Coupling nut torque | Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs |
| Proof torque: 35 Ncm / 310 in.lbs | |
| Coupling nut retention force | ≥1000N / 225.0 lbs |
| Contact captivation | ≥200N / 45.0 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--ternary alloy plating |
| Pin contacts | Brass--Au/Ag plating |
| Socket contacts | Phosphor bronze / Beryllium copper--Ag plated |
| Crimp ferrules | Copper--ternary alloy plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
