Home > Manufacturing & Processing Machinery > Crane > Gantry Crane > Double Beam Gantry Crane

Double Beam Gantry Crane

Name: Double Beam Gantry Crane
Brand: Weihua
SKU: 161178333
Availability: InStock

US$ 80000 - 1000000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Weihua

Place of Origin:

China

Model Number:

Contact Supplier Request Quote Chat Now

Henan Weihua Heavy Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

100 days

Product Details
Company Profile
Contact Us

Brand Name Weihua

Place of Origin China

Model Number WH

Certification ISO9001 BV SGS

Warranty 1 year

Application It is a commonly seed gantry crane used for heavy stuff handling outdoor, at freight yard for example.

Condition New

Max. Lifting Load 800t

Span 6-32m

Rated Lifting Moment 2m/s

Rated Loading Capacity 800t

Max. Lifting Height 6-50m

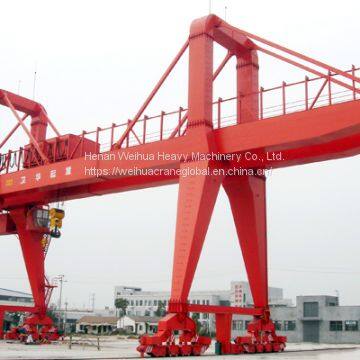

This double beam gantry crane has 2 hooks: main hook and vice hook. It is a commonly seed gantry crane used for heavy stuff handling outdoor, at freight yard for example.

The supporting legs of this gantry crane is A type steel structure made of Q235B/Q345B carbon steel with seamless one-time forming technology, thus it is strong and adapt to adverse weather conditions. Reducer, motors and electrics adopt China or World class brands such as Jiamusi, Nanjing motor, Schneider, Siemens, ABM, SEW etc.

1. CNC cutting for beam web plate with high deflection accuracy.

2. Shot-blasting Sa2.5 for full set girder after welding with stress release.

3. Epoxy zinc rich coating and painting with thickness 2x2 with 140μm.

4. 10.9 class bolts connect girder and legs.

5. Three-in-one motor reducer with vertical gear motor driving.

6. Motors with High protection class IP55, F class, 40% ED.

7. End carriage beam equipped with anti-friction bearings, cellular rubber buffers, and derailment protectors.

Safety and Protection:

Limit switch, overload protection device, height limit device, voltage lower protection, phase sequence protection device, emergency stop, rain cover for outdoor electric hoist, driving units, electrical cable, warning indicator alarming, etc.

600t Gantry Crane for Railway Tunnel Project

MGY7432 Metallurgy Gantry Crane for Yimen Copper, China

250t Explosion-proof Gantry Crane

Crane Parts Packing and inland Transport

/product/Double-Beam-Gantry-Crane.html

E--mail: weihua(at)craneweihua(d ot)com

Product Tags: Double Beam Gantry Crane , Gantry Crane
