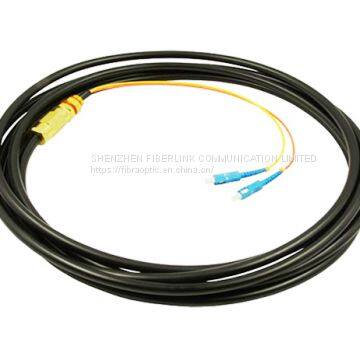

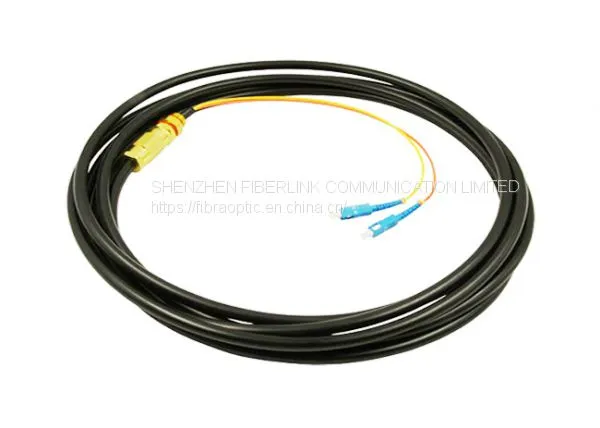

Waterproof fiber optic pigtails is a fiber optic component that has a durable and waterproof fiber optic connector installed on one end and a length of exposed fiber at the other end. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables. Fiber optic pigtails are used to connect the major optical cable lines and the optical receivers in optical fiber communication systems.
Features
100% factory tested assemblies with traceable test data，Low environmental sensitivity
Low insertion loss，High return loss，Stricter than industry standards
Good exchange ability and good durability，Stable optical properties
Waterproof performance and epoxy free waterproof connector
Automatic locking device in waterproof connector
Strict temperature control, testing standard and methods
Standard connector，Various connector option: LC、SC、FC、ST etc.
Compliant with IEC61754，GR-326，TIA/EIA 568 standard1.
Applications
CATV，LANs，WANs
Telecommunication networks
Active device termination
Optical fiber communication networks
Connection of equipment in the open air
Installation and debugging in harsh conditions
FTTx
Specifications
| Fiber Type | SM（9/125um） | MM（50/125um、62.5/125um） | |
| Polish | UPC | APC | UPC |
| Insertion Loss | ≤0.30dB（Max）≤0.20dB（typical） | ≤0.30dB（Max）≤0.10dB（typical） | |
| Return Loss | ≥50dB | ≥60dB | ≥20dB |
| 3D |
Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um High fiber : ±100 nm Angle：8±0.2°(APC） |
||
| Repeatability | 1000 times typical change value ≤ 0.20dB | ||
| Interchangeability | ≤0.20dB | ||
| Branch Diamete(optional) | 2.0 , 3.0mm | ||
| Jacket Material | PE | ||
| Fiber Cores(optional) | 2, 4, 6, 8 and 12 cores | ||
| Fiber Moder(optional) | G652D, G657A, G657B, OM1, OM2, OM3, OM4 | ||
| OperatingTemperature | -20 ~ +70 ℃ | ||
| Storage Temperature | -40 ~ +85 ℃ | ||
Brunch color code sequence
| Brunch Color | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Slate | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Purple | Pink | Aqua |
