350W 0-10V Dimming Constant Voltage 24v 36v Led Driver

Vigenstar Intelligent Technology Co., Ltd.
350W 0-10V Dimming Constant Voltage 24v 36v Led Driver thumbnail-1
350W 0-10V Dimming Constant Voltage 24v 36v Led Driver thumbnail-2
350W 0-10V Dimming Constant Voltage 24v 36v Led Driver thumbnail-3
350W 0-10V Dimming Constant Voltage 24v 36v Led Driver photo-1

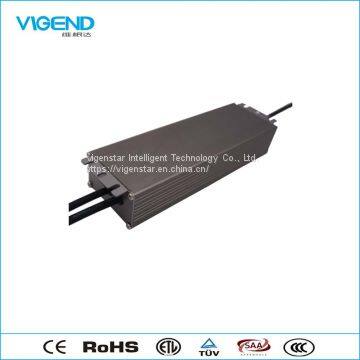

350W 0-10V Dimming Constant Voltage 24v 36v Led Driver photo-2

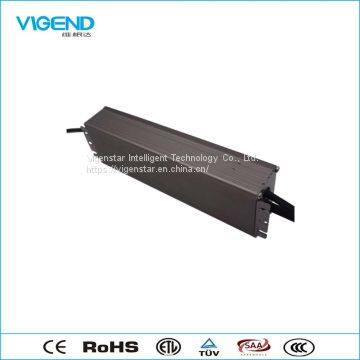

350W 0-10V Dimming Constant Voltage 24v 36v Led Driver photo-3
US$ 50 - 60 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
VGD
Place of Origin:
China
Model Number:
VGD-0/10V-CV-350W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VGD
Place of Origin China
Model Number VGD-0/10V-CV-350W
Output Power 350W
Output Current 1460mA / 970mA
Output Frequency 50/60Hz
Output Voltage 24VDC / 36VDC
Input Voltage 100-277V/AC

350W 0-10V dimming constant voltage 24v 36v led driver
1. The features of 350W 0-10V dimming constant voltage 24v 36v led driver:

The output mode: Constant voltage;
Design:Noise free & flicker free ;
Technology:Using active built-in PFC technology;
Effiency:>90%;
Power factor>0.95;
Protection:Short Circuit Protection / Over Voltage Protection;
Waterproof ProtectionAluminum silicone gel potted  waterproof IP67 protection;
Dimming mode0/1-10V/PWM/potentiometer(3 in 1 dimming);
Input voltage:Full input voltage 90-265V AC;
Certificates:CE/ROHS/ETL/SAA/TUV passed.


0-10V Dimmable LED Driver 300W with IP67 Waterproof Use for Outdoor LED Light

2. Specifications of 350W 0-10V dimming constant voltage 24v 36v led driver
(1) Basic parameters

Model VGD-0/10V-CV-350W
Output Voltage24VDC / 36VDC
Voltage Precision ±0.5V
Output Current1460mA / 970mA
Output Power 350W(Max)
Line Regulation 1%
Input Voltage Range90-265V/AC(standard) 85VAC(min)305V/AC(max)
AC Current(Typ) 0.71A@100VAC 0.62A@110VAC 0.32A@220VAC 0.26A@264VAC
Frequency Range 50/60Hz
PFC(Typ) >0.95@230V
Full-loading Efficiency >88%



(2) Protection of 350W 0-10V dimming constant voltage 24v 36v led driver

Short CircuitShort circuit protection / Over voltage protection
Over Voltage<305VAC


(3) Environment of 350W 0-10V dimming constant voltage 24v 36v led driver

Operation Temperature-20~+60 ºC
Operation Humidity20~90%
Storage-40~ +85 ºC, 10~95%RH
Temperature Coefficient±0.03%/ ºC (-45~50 ºC )
Vibration Resistance10~500HZ,2G 10Min/period,X , Y , Z line per 60 mins


(4) Safety&EMC of 350W 0-10V dimming constant voltage 24v 36v led driver

StandardRefer to EN 61347-1;EN 61347-2-13; EN 62493
Withstand VoltageI/P-O/P:3.75KVAC
Insulating StrengthI/P-O/P:400M Ω /500 VDC/25 ºC /70%RH
EMC EmissionTo Correspond EN55015,EN61000-3-2( >= 50% load)
EMC ImmunityTo Correspomd EN55015,EX61000-4-2,3,4,5,6,8,11,A Level of light industry standard(Surge 4KV)


(5) Other information of 350W 0-10V dimming constant voltage 24v 36v led driver

Weight2500G
Dimension285*95*50mm ( L*W*H)
PCB94V-0 PC fire retardant
ColorDark Grey
Packing44.5*28.5*17cm/6pcs


(6) Note
All parameters are measured at normal temperture(25-28 ºC )
1. Ripple & Noise are measured at 20KHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1 uf & 47uf parallel capacitor(@ full load).

2.  The efficiency measured at Max output voltage,and 230VAC with full load,if with 110VAC the efficiency will be lowered 0.5%~1.5%;Working 1~2 hours,efficiency will be higher 1.5%~1%than the initial stage.

3. Mechanical Specification of 350W 0-10V dimming constant voltage 24v 36v led driver
0-10V Dimmable LED Driver 300W with IP67 Waterproof Use for Outdoor LED Light



4. Power Factor Characterisics & Efficiency & Load of (110VAC / 230VAC) of 350W 0-10V dimming constant voltage 24v 36v led driver
0-10V Dimmable LED Driver 300W with IP67 Waterproof Use for Outdoor LED Light

5. Wiring diagram of 0-10v dimmable led driver
0-10V Dimmable LED Driver 300W with IP67 Waterproof Use for Outdoor LED Light

6. Certificates of 0-10V dimming led driver

0-10V Dimmable LED Driver 300W with IP67 Waterproof Use for Outdoor LED Light



7. The picture of production workshop & production line
0-10V Dimmable LED Driver 300W with IP67 Waterproof Use for Outdoor LED Light

8. The application of LED drivers
0-10V Dimmable LED Driver 300W with IP67 Waterproof Use for Outdoor LED Light



Welcome your visiting to our factory.
