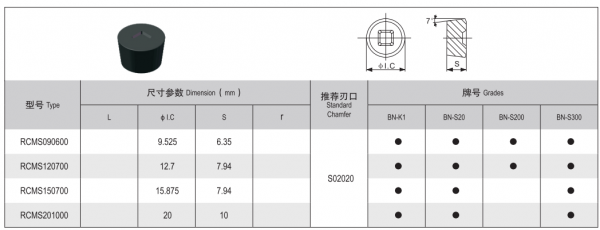

Help CenterRoughing Forged Steel Cold Rolls BN-S20 RCMS Solid CBN Inserts With Durable CBN Insert
Related Products
-
Rough Machining Nickel-based Alloy Surfacing Rolls With Solid CBN InsertsUS$ 20 - 30MOQ: 10 Pieces -
Turning Repaired Casting High Speed Steel Rolls BN-S300 RCMS Solid CBN Inserts With Better PriceUS$ 15 - 30MOQ: 10 Pieces
-
Turning High Speed Steel Rolls BN-S300 RNMN Solid CBN Insert With High QualityUS$ 15 - 30MOQ: 10 Pieces
-
Turning Tungsten Carbide Rings Solid CBN Insert BN-S300 RCMS With Better Wear ResistanceUS$ 15 - 30MOQ: 10 Pieces
-
Processing Rolls High Speed Steel Full From CBN Insert With High EfficiencyUS$ 20 - 30MOQ: 10 Pieces
Why choose Halnn CBN inserts to process rolls?
Mill Rolls can be divided into casting rolls and forging rolls, both of them have high hardness and large allowance, and are difficult to process. Especially for the large casting rolls with the casting defects such as sand, stomata and hard spot , it will required very high on the cutting tools.
Advantage
For high-hardness rolls, Halnn recommends solid CBN tools that can withstand large margin cutting. It is more stable than traditional cutting tools, and the production cost is increased. The application of dry cutting greatly reduces the production cost. As following about parameter.
No. |
Rolls Materials |
Hardness |
Select CBN Insert |
Recommend Cutting Condition |
||
Vc(m/min) |
ap(mm) |
Fr(mm/r) |
||||
1 |
High Ni-Cr Cast Iron Rolls/Hi-Cr Cast Iron Rolls |
HSD60~80 |
BN-K1 |
40~60 |
2~10 |
0.5~1.5 |
60~90 |
1 |
0.5~1.0 |
||||
2 |
Cast Semi-SteeRolls |
30~60 |
1~10 |
0.5~1.5 |
||
50~80 |
1 |
0.5~1.0 |
||||
3 |
High Carbon Semi-Steel Rolls |
35~50 |
3 |
0.5~1.5 |
||
4 |
Chilled Cast Iron Rolls |
25~50 |
1~10 |
0.5~1.5 |
||
3 |
High Speed Steel/HSSRolls |
HSD85~92 |
BN-S20 |
20~45 |
4 |
0.5~1.5 |
8 |
Tungsten Carbide Ring |
HRA88 |
BN-S30 |
10~15 |
1 |
0.3~0.7 |
9 |
Forged Steel Cold Rolls |
HRC65 |
BN-S20 |
10~25 |
0.2~7 |
/ |
Note：Tool Holder belong to customized.
Application
BN-S20 rough machining forged steel cold rolls | ||
|
Materials & Hardness |
Forged steel cold rolls, HRC60 |
Selected Insert |
Halnn BN-S20 |
|
Cutting Condition |
Ap=2mm, Fr=0.5mm/r,Vc=66m/min |
|
Selected Insert |
Efficiency |
|
BN-S20 |
Improved 2 times |
|
Carbide Insert |
/ |
|
