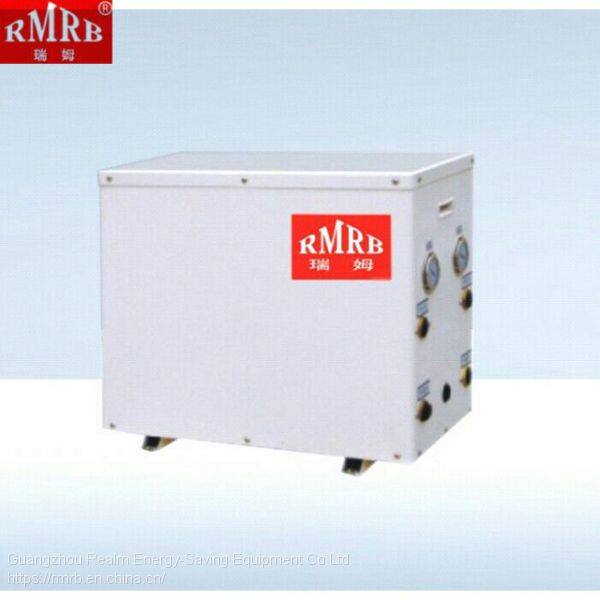

RMRB- 03SSR OEM good technical HVAC heat pump 11.5kw combine cooling heating hot heat pump
Technical parameter of combine cooling heating hot heat pump
| Model | RMRB- 02SSR | RMRB- 03SSR | RMRB- 05SSR | RMRB- 10SSR |
RMRB- 12SSR |
RMRB- 20SSR | RMRB- 25SSR | RMRB- 50SSR | ||
| Rated heating output KW | 7.6 | 11.5 | 19.8 | 39.6 | 48.8 | 81 | 94.5 | 189 | ||
| Rated heating input KW | 1.7 | 2.6 | 4.4 | 8.8 | 10.5 | 18 | 21 | 42 | ||
| Rated refrigeration quantity KW | 6 | 9 | 16 | 31 | 40 | 68 | 80 | 158 | ||
| Refrigeration input power KW | 1.6 | 2.5 | 4.3 | 8.7 | 10.2 | 17.6 | 20.5 | 41.5 | ||
| Voltage V | 220/380V-50HZ | 380V-50HZ | ||||||||
| Hot water temperature | 55-60ºC | |||||||||
| Cold water/return water temperature | 7-12ºC | |||||||||
| Rated output water quantity L | 160 | 230 | 400 | 800 | 1020 | 1600 | 2000 | 4000 | ||
| Freon Feed KG | 1.5 | 2.1 | 3 | 6 | 6.8 | 12 | 14.8 | 29.6 | ||
| Compressor | From | Rotation Type | Scroll Type | |||||||
| Quantity | 1 or 2 | 1 or 2 | 1 or 2 | 2 | 2 | 2 | 2 | 2 | ||
| Brand | Panasonic | Copeland/ Panasonic | Copeland | |||||||
| Max working pressure | 2.8Mpa | |||||||||
| Condenser | Form | Panel or spiral pipe | ||||||||
| Pressure Drop | 50Kpa | |||||||||
| Pipe Diameter DN | 25 | 32 | 65 | 100 | ||||||
| Flow Rate m³ | 1.5 | 1.8 | 3.8 | 3.8 | 9.6 | 15.6 | 17.3 | 34 | ||
| Evaporator | Form | Panel or spiral pipe | ||||||||
| Pressure loss | 50Kpa | |||||||||
| Pipe Diameter DN | 25 | 32 | 65 | 100 | ||||||
| Flow Rate m³ | 1.5 | 1.8 | 3.8 | 3.8 | 9.6 | 15.6 | 17.3 | 34 | ||
| Weight KG | 60 | 86 | 160 | 250 | 260 | 580 | 620 | 1200 | ||
| Protection function | High pressure, Low pressure, Overload, High temperature, Freeze | |||||||||
|
Notice: Refrigerating Work Conditions: freezing water input temperature 12ºC, output temperature 7ºC; cooling water input temperature 15ºC; output temperature 20ºC. Heating Work Conditions: heating water input temperature 40ºC, output temperature 45ºC,cooling water input temperature 15ºC, output temperature 10ºC. Hot Water Work Conditions: cold water temperature 15ºC, hot water temperature 55ºC, water source temperature 20ºC. If the temperature of water source or fed water changes, then relative parameters will also change. Specifications are subject to change without prior notice. The appearance is only for reference, please see the real product for detailed information. | ||||||||||
Performance characteristic of combine cooling heating hot units
· The machine won't be influenced by the environment, and can work effectively at any time.
· Apply microcomputer fully automatic control, power off memory function, reliable use.
· Complete self-inspection and protection functions, stable performance.
· Apply effective heat exchanger, higher energy saving performance save cost.
· Apply world famous parts, Longer service life.
Combine cooling heating hot units application
· Student dormitory, worker dormitory, office building, hospital, hotel, entertainment center, big chamber constant temperature pool, laundry shop, restaurant, shopping store and culture farm etc.
Comprehensive Comparison
| Hot water equipment | Safty | Evironment Friendly | Convenience | Maintenance cost | Service Life | Installation condition |
| Heat pump unit | Higher | Higher | Higher | Low | 10-15years | Less limit |
| Gas hot water boiler | Low | Low | Low | Higher | 6-8years | More limit |
| Fuel hot water boiler | Low | Low | Low | Higher | 6-8years | More limit |
| Solar+Electric auxiliary | Ordinary | Higher | Higher | Low | 5-6years | More limit |
Comprehensive Comparison:
| Hot water equipment | Safty | Evironment Friendly | Convenience | Maintenance cost | Service Life | Installation condition |
| Heat pump unit | Higher | Higher | Higher | Low | 10-15years | Less limit |
| Gas hot water boiler | Low | Low | Low | Higher | 6-8years | More limit |
| Fuel hot water boiler | Low | Low | Low | Higher | 6-8years | More limit |
| Solar+Electric auxiliary | Ordinary | Higher | Higher | Low | 5-6years | More limit |
More other products for reference:
Guangzhou RMRB Energy-Saving Equipment Co., Ltd (RMRB), started from year 2002, make production from 2004, registered its own brand RMRB HEAT PUMP from May 2005. As a manufacturer who proffessional produce heat pump. Near Baiyun Airport. It located at No. 1-3, Building58 Back Seat, Zhuliao Avenue, Zhongluotan Town, Baiyun District, Guangzhou City, Guangdong Province, China.
RMRB major in producing all kinds of heat pump. Such as, hot water system heat pump (air to water heat pump, water to water heat pump), heat pump combined system provide Cooling / heating & hot water, Air-cooled modular heat pump cooling/heating unit, water-cooled modular heat pump cooling/heating unit, and geothermal Source heat pumps, for both household and industrial /business projects use.
RMRB RMRB Products serials including:
1). Swimming pool heat pump;
2). Air Source Heat Pump Combine Cooling, Heating and Hot water Units (CCHH Series);
3). Industrial / Business heat pump hot water system;
4). Air-cooled modular heat pump cooling/heating unit;
5). Water-cooled modular heat pump cooling/heating unit;
6). Water source heat pump combined system;
7). Geothermal source heat pumps;
8). Direct Air-source heat pump hot water units;
9). Domestic air source heat pump hot water system (both split style and all-in-one type).
The energy saving times requires us to select energy source products which can meet the development of the society better. RMRB heat pump, as the leading in the industry, provide the best selection due to advanced technology and market management.
RMRB heat pumps are manufactured strictly following USA ATSE quality control system and technique requirements, and Have passed ISO2008, ISO9001 certification, USA EMC member certification, Germany SGS authority, China CCC certification, CE, CB and other energy saving certificates. Guangzhou RMRB Energy-Saving Equipment Co., Ltd possesses top R&D team, advanced equipments and outstanding development environment, be capable of constantly promoting quality products. What is more important: After constant development, with profound knowledge to the marker, the company has summarized the practical and effective strategy with complete and systematic solutions and rich engineering experience.
The most important is, RMRB offer Dedicated Lifelong Service.
Contract Manufacturing:
OEM Service: Offered
Design Service: Offered
Buyer Label: Offered
RMRB Heat Pump
widely application to : Student dormitory, worker dormitory, guest house, village, settlements living area, hotel, hospital, entertainment center, super market, small and big chamber, constant temperature pool, spa center, house, villa, beauty salon, laundry shop, restaurant, culture farm, army department, and so on.
Our Target: Develop international famous brand on energy saving. Set up the worldwide RMRB heat pump chain stores and warranty service systems.
Our Service and Guarantee: The entire machine enjoys one or two years of warranty service, the defective parts enjoy replacement service within two year; Nomal service life of our products reaches 10 to 15 years or more; Free patrol inspection service once a year within China; Products are insured by PICC.
