12000rpm Medical Device Single Channel Fiber Optic Slip Ring Dedicated For OTC
Feature:
1.Low weight components
2.EMI free signal transmission
3.Low insertion loss
4.High return loss values
5.High speed,low variation over rotation
Quick Details:
| Model Number: | JSR-FO-HS0122 | Channnel: | 1 |
| Insertion loss ripple: | <+/-0.25 dB | Wavelength range: | 1310-1550nm |
| Return loss (SM&MM): | >40 dB(RPT), | Insertion loss: | <1.0dB |
| Housing Material: | Stainless Steel | Protection: | IP54 |
Benefits

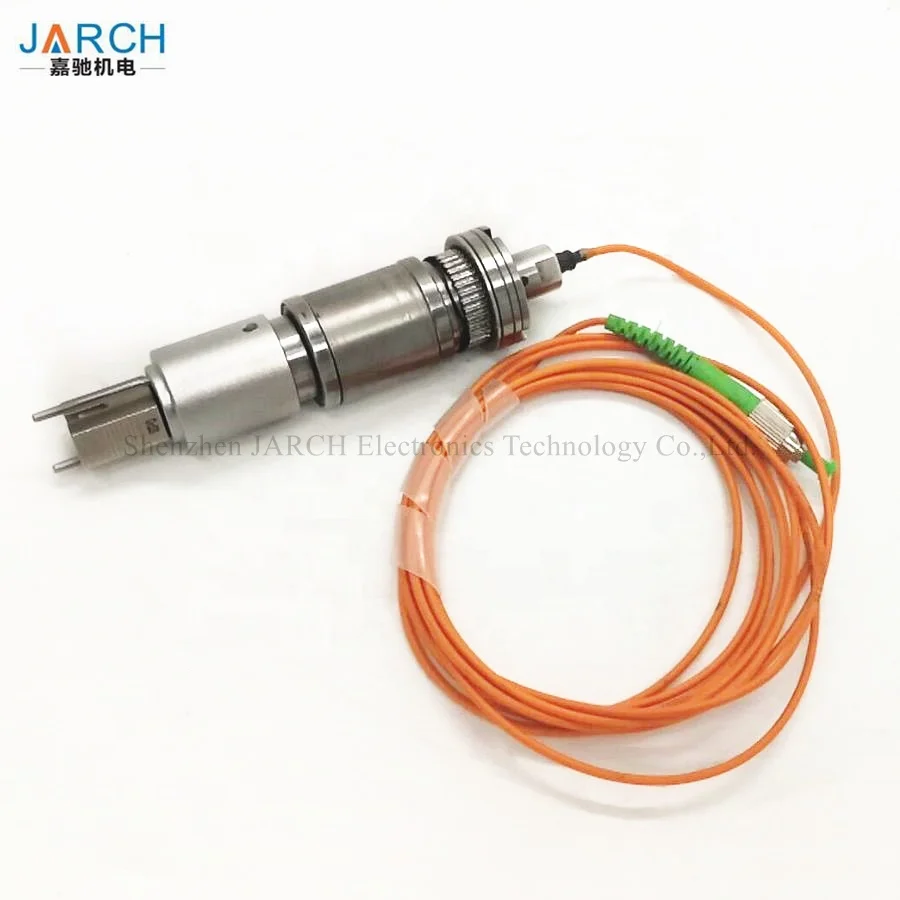

12000rpm Single Channel Medical Device Fiber Optic Slip Ring Rotary Joint Dedicated For OTC
Using light signal transmission, no electromagnetic leakage.
Good sealing.
Resistance to electromagnetic interference
No contact transmission, no wear and tear.
Long life, can be up to 10 million RPM.
No friction, can be used in inflammable and explosive environment.
Can be used in extreme natural environment.
High magnetic current interference, also can work normally.

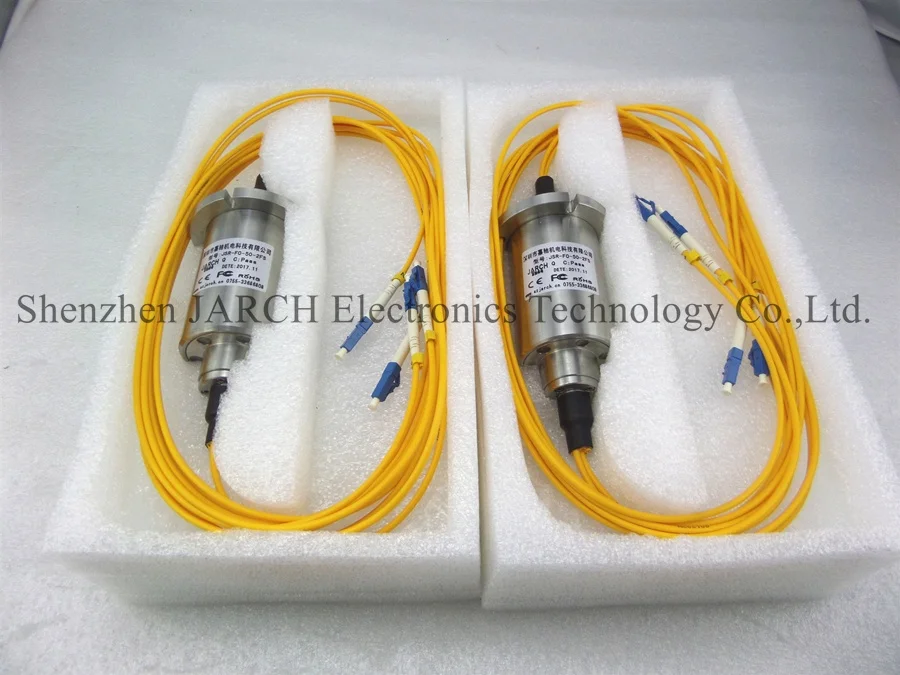

12000rpm Single Channel Medical Device Fiber Optic Slip Ring Rotary Joint Dedicated For OTC
Specifications:
| Wavelength range | 1310-1550nm | Insertion loss | ≤1.0dB |
| Insertion loss ripple | <+/-0.25 dB | Return loss (SM) | ≥40 dB |
| Maximum speed | 12000 rpm | Pulling strength | 10 N |
| Start up torque | <0.01 Nm | Estimated life cycle | 200-400 million revolutions |
| Optical power handling | 23 dBm | Working temperature | -40°C to 85 °C |
| Storage temperature | -50°C to 85 C°C | Package style | Pigtails on both ends |
| Housing material | Stainless steel | Fiber types | Single w/3 mm jacket (Kevlar/PVC) |

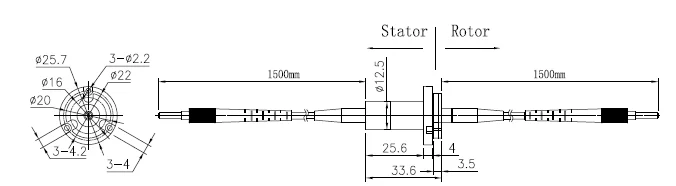

| Connector types | FC, SC, ST, | Dimensions | 25.4mm dia. |
| Weight | 150 g | IP rating | IP54 |
| Vibration | MIL-STD-167-1A | Mechanical shock | MIL-STD-810G |
Applications:
OTC
Aerospace/Defense
• Armored vehicle turrets, IR and EO systems
• Missile seeker gimbals and inertial systems
• Helicopter de-ice systems, EO / IR trackers and target systems
• Fixed-wing aircraft - EO/IR trackers, fire control systems, surveillance systems and targeting systems
• Missile counter measures
• Space - solar array mechanisms
• Shipboard/submersible - navigation systems and fire control radar
• Surveillance systems
Industrial
• Medical equipment and devices
• Robotics
• Index tables
• Semiconductor handling
• Pan tilt cameras
• Packaging and processing equipment
• Cable reels
• Wind energy
• CT scanners
Marine
• Remote operated vehicles (ROV)
• Seismic surveying
• Oceanographic winches
• Subsea communications and control
• Floating production, storage and offshore loading (FPSO)
• Diving
• Marine instrumentation
• Down hole/wire logging and drilling

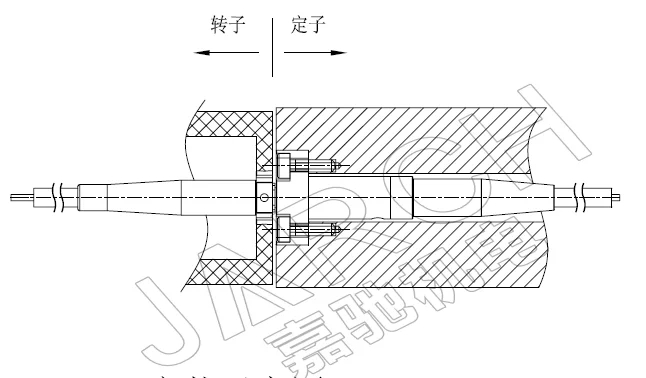

Installation Instructions
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department
JARCH Company is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time:15 days after got the payment Shipping:BY DHL, FedEx, UPS or TNT...... |
A:
If you want to costomize the special slip ring model, you need provide details as below:
a. Operatring speed(RPM)
b. The type of installation
c. Outline size
d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings
f. The signal type and related parameters(very important)
g. Operating temperature h.IP(sealing requirements)
2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
If you have any questions, please contact us without any hesitation.
Shenzhen JARCH Electronics Technology Co.,Ltd.
Main Item list: slip ring,rotary union,fiber optic rotary joint(FORJ),hose reel/cable reel,carbon brush,brush holder...
Customer Service: ATTN: Ms.Kris Yao E-mail: kris Phone&WhatsApp:86-13929708571 Skype/Kakao: krisyao313 Wechat: laoyao313 QQ: 3003854385
|
|
