JARCH Factory direct photoelectric combination slip ring optical fiber circuit hybrid slip ring through optical fiber optic electricity combination slip ring
SM FORJ / 100MM HOLLOW SLIP RING / THINNESS PANCAKE SLIP RING / CARBON BRUSHES
The photoelectric hybrid rotating combination slip ring is composed of the conductive slip ring which can transmit the power supply, control signal power supply, instrument and micro electric signal required by computer automatic control and the smooth ring which can transmit the multi-mode single-mode optical fiber signal. It can solve the problem of 360 ° rotating optical signal and electrical signal transmission at the same time. It is suitable for applications where unlimited, continuous or intermittent rotation is required, and large capacity data and signals need to be transmitted from the fixed position to the rotating position. It can improve the mechanical performance, simplify the system operation, and avoid the damage to the optical fiber due to the rotation of the movable joint. It can be used in combination with the traditional electronic bus ring to form a photoelectric hybrid bus ring to transmit power and high-speed data. Can be customized to meet the needs of the program.
The photoelectric hybrid rotating combination slip ring is composed of the conductive slip ring which can transmit the power supply, control signal power supply, instrument and micro electric signal required by computer automatic control and the smooth ring which can transmit the multi-mode single-mode optical fiber signal. It can solve the problem of 360 ° rotating optical signal and electrical signal transmission at the same time.
| Wavelength range | 650-1650 nm | Insertion loss | ≤2 dB (typical: |
| Insertion loss ripple | Return loss (SM) | ≥40 dB | |
| Maximum speed | 1,000 rpm | Pulling strength | 10 N (900 um buffer) |
| Start up torque | Estimated life cycle | 200-400 million revolutions | |
| Optical power handling | 23 dBm | Working temperature | -40°C to 85 °C |
| Storage temperature | -50°C to 85 C°C | Package style | Pigtails on both ends |
| Housing material | Stainless steel | Fiber types | Single or multimode w/3 mm jacket (Kevlar/PVC) |
| Connector types | FC, SC, ST, SMA, or LC | Dimensions | 6.8 mm dia. x 28 mm length |
| Weight | 10 g | IP rating | IP 68 for all models,IP66 available |
| Vibration | MIL-STD-167-1A | Mechanical shock | MIL-STD-810G |
Benefits
Using light signal transmission, no electromagnetic leakage.
Good sealing.
Resistance to electromagnetic interference
No contact transmission, no wear and tear.
Long life, can be up to 10 million RPM.
No friction, can be used in inflammable and explosive environment.
Can be used in extreme natural environment.
High magnetic current interference, also can work normally.
Installation Instructions

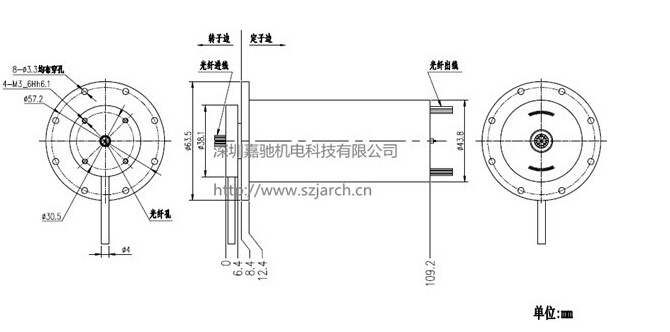

Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery
