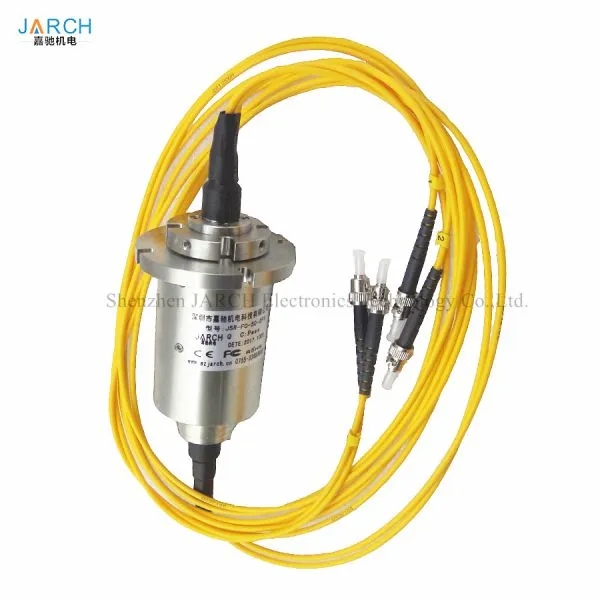

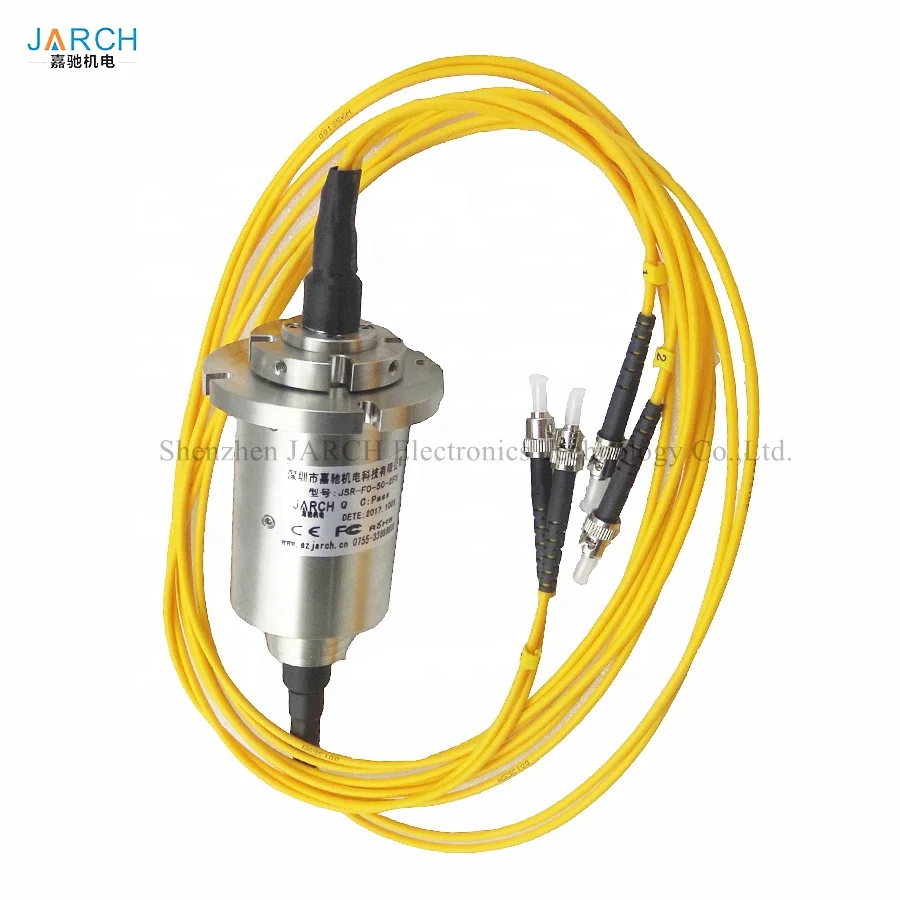

Fiber Optic rotary joint / FORJ with 2 channel for photoelectric theodolite
Feature:
1.light weight,compact
2.Using light signal transmission, no electromagnetic leakage.
3.Channel:2
4.Speed:150rpm
JSR-FO-FC1 fibre optic rotary joints are small and compact FORJ with OD 6.80mm * L 28mm, standard, off-the-shelf, available in stock. It could support 1 channel fiber optics(SM/MM) transmitting on 360° rotating. Single-channel (both Single-Mode and Multiple-Mode) rotary joints(FORJ) are the most versatile designs the market has ever seen. The rugged body allows fiber pigtail, ST, or FC receptacles on either the rotor side or the stator side. One can configure the package to fit his need exactly. features extremely low insertion loss and impressive return loss performance for both single mode and multimode fibers.MJ1 are often used with electronic slip ring, call optical-electrical hybrid slipring, transmit power and high speed data.
Benefits
JARCH 2 channels Fiber Optic rotary joint / FORJ for photoelectric theodolite
Using light signal transmission, no electromagnetic leakage.
Good sealing.
Resistance to electromagnetic interference
No contact transmission, no wear and tear.
Long life, can be up to 10 million RPM.
No friction, can be used in inflammable and explosive environment.
Can be used in extreme natural environment.
High magnetic current interference, also can work normally.
JARCH 2 channels Fiber Optic rotary joint / FORJ for photoelectric theodolite
| Wavelength range | 1310-1550nm | Insertion loss | ≤2 dB (typical: |
| Insertion loss ripple | Return loss (SM) | ≥40 dB | |
| Maximum speed | 150 rpm | Pulling strength | 3 N |
| Start up torque | Estimated life cycle | 200-400 million revolutions | |
| Optical power handling | 23 dBm | Working temperature | -40°C to 85 °C |
| Storage temperature | -50°C to 85 C°C | Package style | Pigtails on both ends |
| Housing material | Stainless steel | Fiber types | Single or multimode w/3 mm jacket (Kevlar/PVC) |
| Connector types | FC, SC, ST, SMA, or LC | Dimensions | 6.8 mm dia. x 28 mm length |
| Weight | 10 g | IP rating | IP 68 for all models/IP66 |
| Vibration | MIL-STD-167-1A | Mechanical shock | MIL-STD-810G |
Applications:
• Between in undersea robot and control ship
• Between in radar antenna and on-board signal processing system
• With the chariot rotating tower car body console
• Between in welding robot and console
• Remote mechanical input and output devices and control
• The photoelectric theodolite
• The connection between the platform and spacecraft tracking
Aerospace/Defense
• Armored vehicle turrets, IR and EO systems
• Missile seeker gimbals and inertial systems
• Helicopter de-ice systems, EO / IR trackers and target systems
• Fixed-wing aircraft - EO/IR trackers, fire control systems, surveillance systems and targeting systems
• Missile counter measures
• Space - solar array mechanisms
• Shipboard/submersible - navigation systems and fire control radar
• Surveillance systems
Industrial
• Medical equipment and devices
• Robotics
• Index tables
• Semiconductor handling
• Pan tilt cameras
• Packaging and processing equipment
• Cable reels
• Wind energy
• CT scanners
Marine
• Remote operated vehicles (ROV)
• Seismic surveying
• Oceanographic winches
• Subsea communications and control
• Floating production, storage and offshore loading (FPSO)
• Diving
• Marine instrumentation
• Down hole/wire logging and drilling
Installation Instructions
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department
