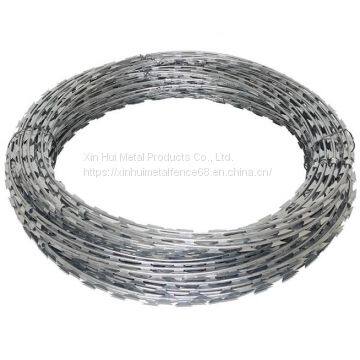

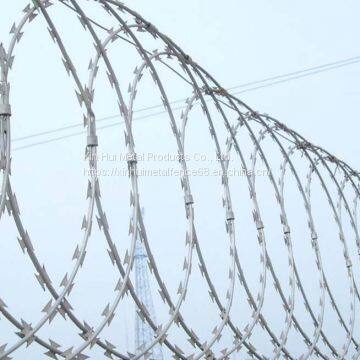

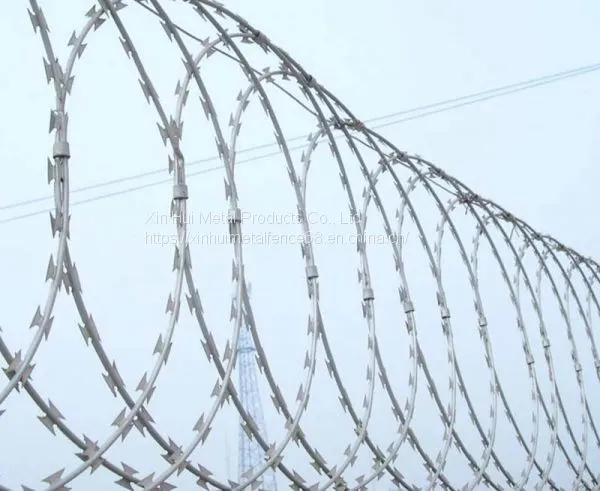

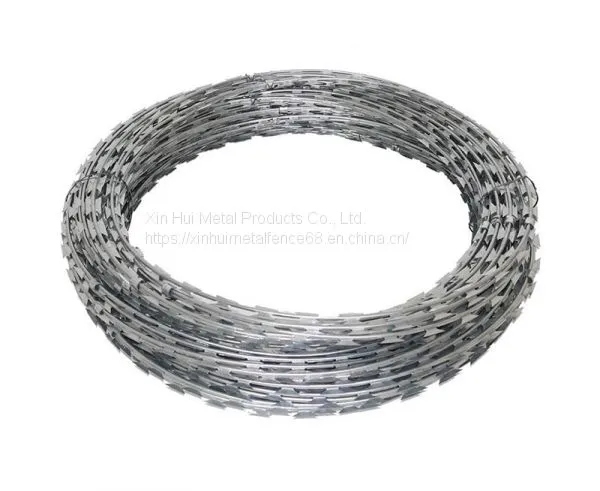

Blade Razor Wire
Concertina wire or Blade Razor Wire is a type of barbed wire, It is also named as concertina coils or razor type barbed wire. It's formed in large coils which can be expanded like a concertina. In conjunction with plain barbed wire (and/or razor wire/tape) and steel pickets, it is most often used to form military-style wire obstacles such as when used in prison barriers, detention camps or riot control. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.
concertina razor wire for sale:Xin Hui Metal Products Co., Ltd.
Barbed Tape Wire Specification | ||||
Loop Outside Diameter |
No.Of Loops |
Standard Length Per Coil |
Type |
Notes |
450mm |
33 |
7-8M |
CBT-60.65 |
Single Coil |
500mm |
56 |
12-13M |
CBT-60.65 |
Single Coil |
700mm |
56 |
13-14M |
CBT-60.65 |
Single Coil |
960mm |
56 |
14-15M |
CBT-60.65 |
Single Coil |
450mm |
56 |
8-9M(3CLIPS) |
BTO-10.12.18.22.28.30 |
Cross Type |
500mm |
56 |
9-10M(3CLIPS) |
BTO-10.12.18.22.28.30 |
Cross Type |
600mm |
56 |
10-11M(3CLIPS) |
BTO-10.12.18.22.28.30 |
Cross Type |
600mm |
56 |
8-10M(5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross Type |
700mm |
56 |
10-12M(5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross Type |
800mm |
56 |
11-13M(5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross Type |
900mm |
56 |
12-14M(5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross Type |
960mm |
56 |
13-15M(5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross Type |
980mm |
56 |
14-16M(5CLIPS) |
BTO-10.12.18.22.28.30 |
Cross Type |
Concertina Coil Specification | |||||||
Coil Diameter |
300mm |
450mm |
730mm |
730mm |
980mm |
980mm |
1250mm |
(12inch) |
(18inch) |
(28inch) |
(36inch) |
(36inch) |
(36inch) |
(50inch) |
|
Recommended Stretch Length |
4m |
10m |
15-20m |
10-12m |
10-15m |
8m |
8m |
Coil Diameter When Stretched |
260mm |
400mm |
600mm |
620mm |
820mm |
850mm |
1150mm |
Spiral Turns Per Coil |
33 |
54/55 |
54/55 |
54/55 |
54/55 |
54/55 |
54/55 |
Clips Per Spiral |
3 |
3 |
3 |
5 |
5 |
7 |
9 |
I. Concertina Wire Materials:
Blade: steel plate by one-time punching moulding or stainless steel plate by one-time punching moulding
Wire: hot dipped galvanized metal wire, hot dipped galvanized steel wire or stainless steel wire
Concertina coils and fence types
1. Single concertina coil
2. Cross concertina coil
3. Concertina wire tape
4. Welded concertina fence
