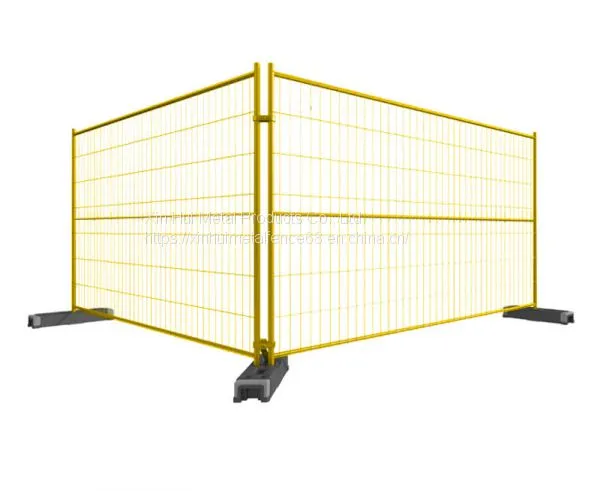

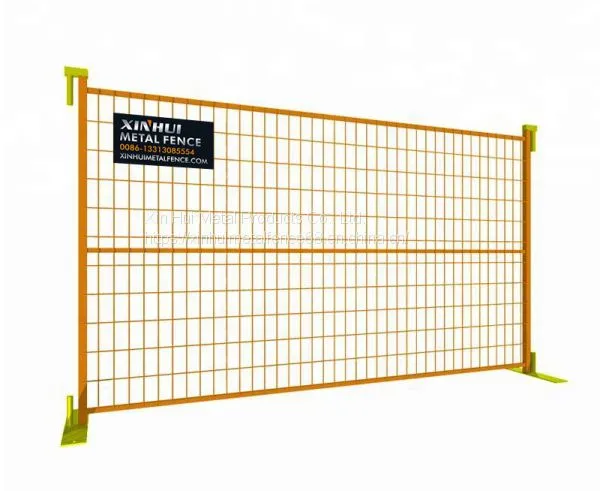

6' × 10' CA Temporary Fencing
6' × 10' CA Temporary Fencing Specifications:
Wire diameter of 6.0 mm
Frame tube size: 30 × 30 mm
Middle horizontal support pipe: 25 × 25 mm
The finished Canada welded temporary fencing is strong enough and durable for any site needing security or privacy.
Product Description :
6' × 10' CA temporary fencing owns 6' height and 10' width. Use high quality mild steel wire and tube as raw material, after welding with high-frequency welding technology. Plus strong corrosion treatment of electric galvanized before powder coated or hot dipped galvanized after welding. Service life can be up to 10 years.
Besides, 6' × 10' CA temporary fencing with wire diameter of 4.0 mm, frame outside diameter of 30 × 30 mm, superadd the middle horizontal pipe outside diameter of 25 × 25 mm, The finished Canada welded temporary fencing is strong enough and durable for any site needing security or privacy.
Panel Specification | |
Dimensions |
6' × 10' (equal to 1.8 × 3 m). |
Wire diameter |
4.0, 6.0 mm optional. |
Mesh opening |
50 × 100, 50 × 150, 75 × 150 mm optional. |
Frame O.D. × TH |
30 × 30 × 2, 40 × 40 × 2 mm optional. |
Frame TH |
2.0–2.5 mm. |
Middle horizontal pipe O.D. |
25 × 25 × 2 mm. |
Surface treatment |
Electric galvanized before powder coated.Hot dipped galvanized after welding. |
Color |
Dark green, yellow, red, blue, other RAL colors. |

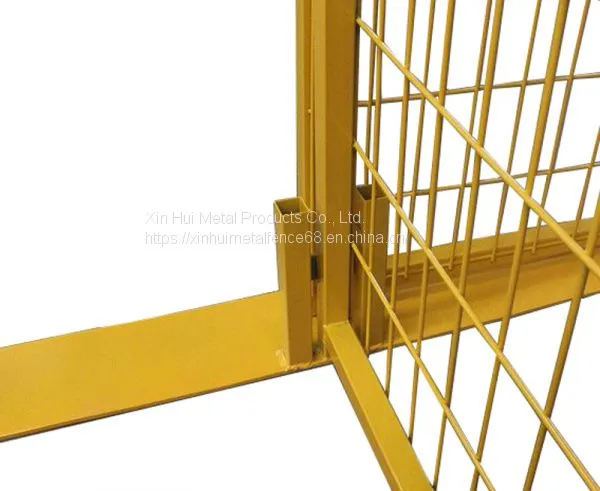

Fence feet Specification | |
Material |
Steel plate, steel solid rod, steel pipe. |
Dimensions |
600 × 110 × 8, 900 × 80 × 7 mm optional. |
Hole size O.D. |
19 mm. |
Interior round steel rod/pipe |
30 mm O.D. × 150 mm H. |
Exterior square steel rod/pipe |
30 × 30 × 150 mm. |
Rod space |
30 mm. |
Surface treatment |
Electric galvanized before powder coated. |
Top Clips Specification | |
Material |
Steel plate, steel solid rod, steel pipe. |
Coupler top plate/pipe |
110 × 40 × 8 mm. |
Left round steel rod/pipe |
30 mm O.D. × 150 mm H. |
Right square steel rod/pipe |
30 × 30 × 150 mm H. |
Surface treatment |
Electric galvanized before powder coated. |
Clamp Specification | |
Clamp center distance |
80, 90, 100 mm optional. |
Applied post O.D. |
25, 28, 32, 38, 40, 42 mm optional. |
Clamp TH |
4 mm. |
Bolt |
Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter. |
Nut |
15.9 mm, 17 mm optional. |
Surface Treatment |
Hot dipped galvanized. |
Weight |
0.42 kg/set. |
Accessory List |
2 pieces clamps with 1 bolt and 1 nut. |
