4-8 8-16 10-20 Mesh Nature Rock Almandine Garnet Sand for Water Treatment

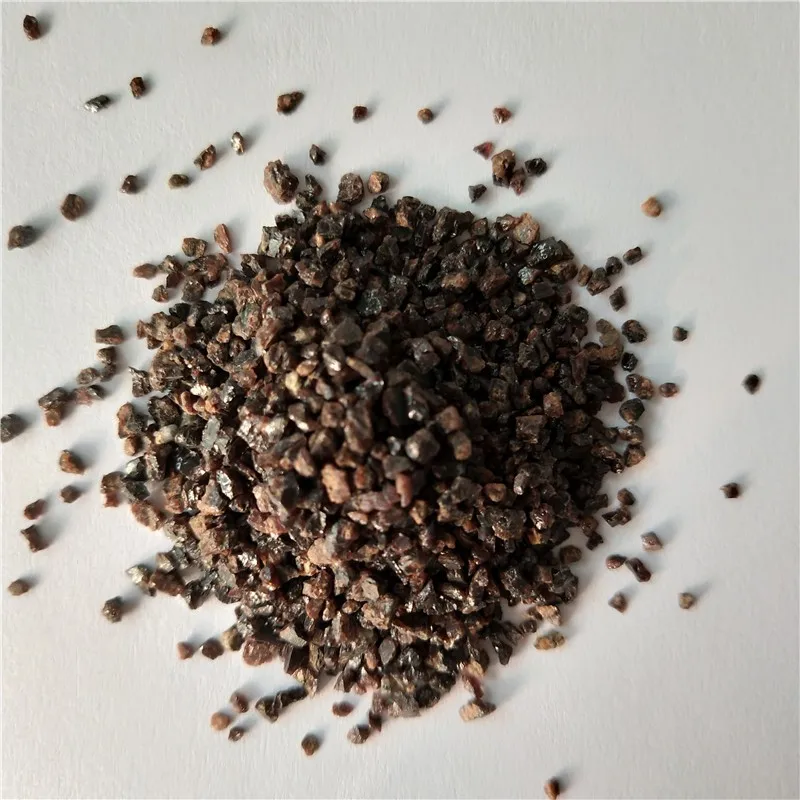

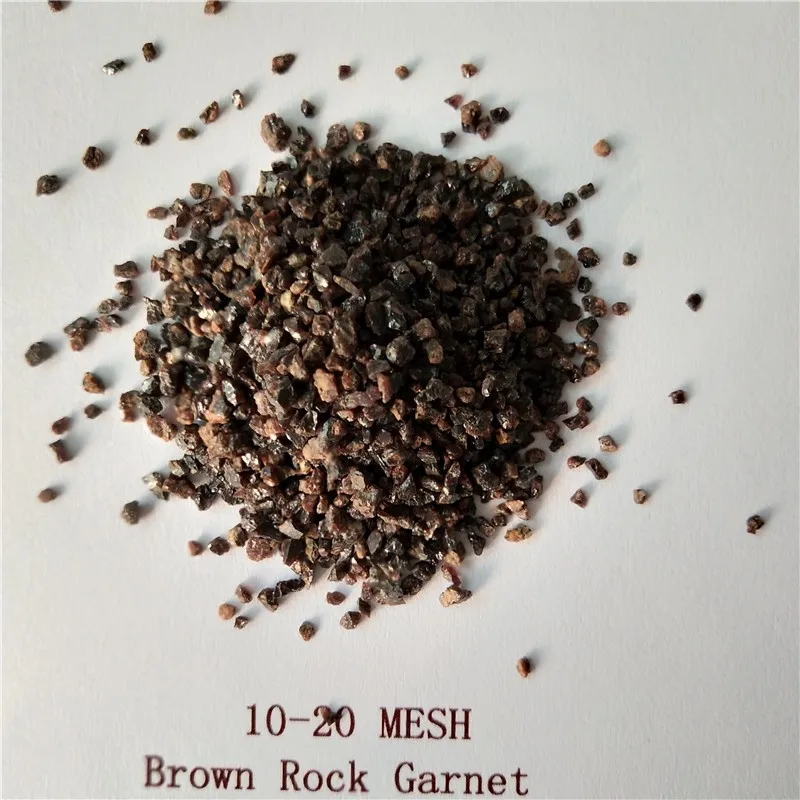

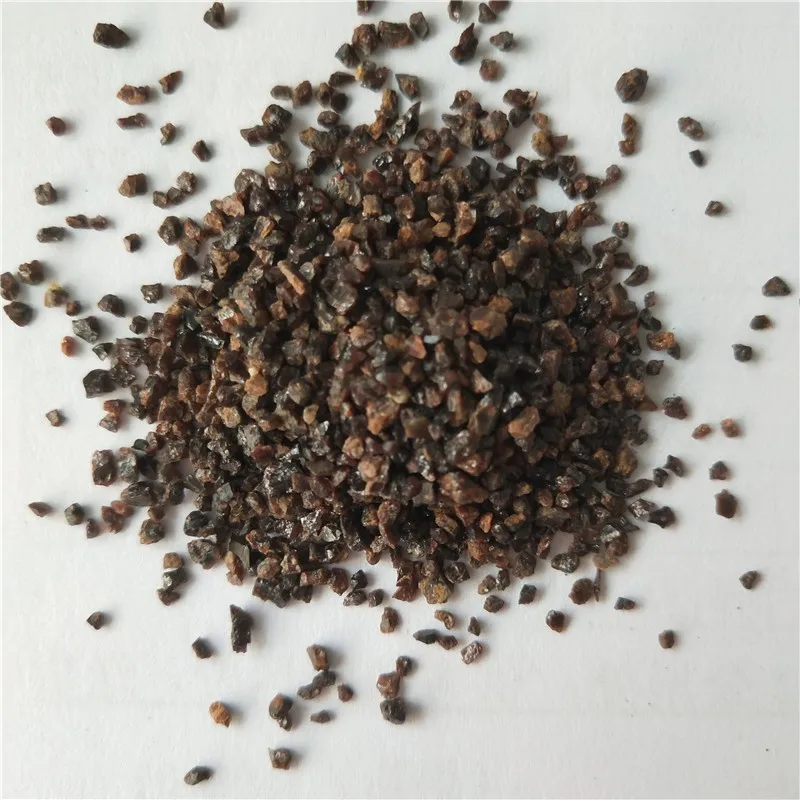

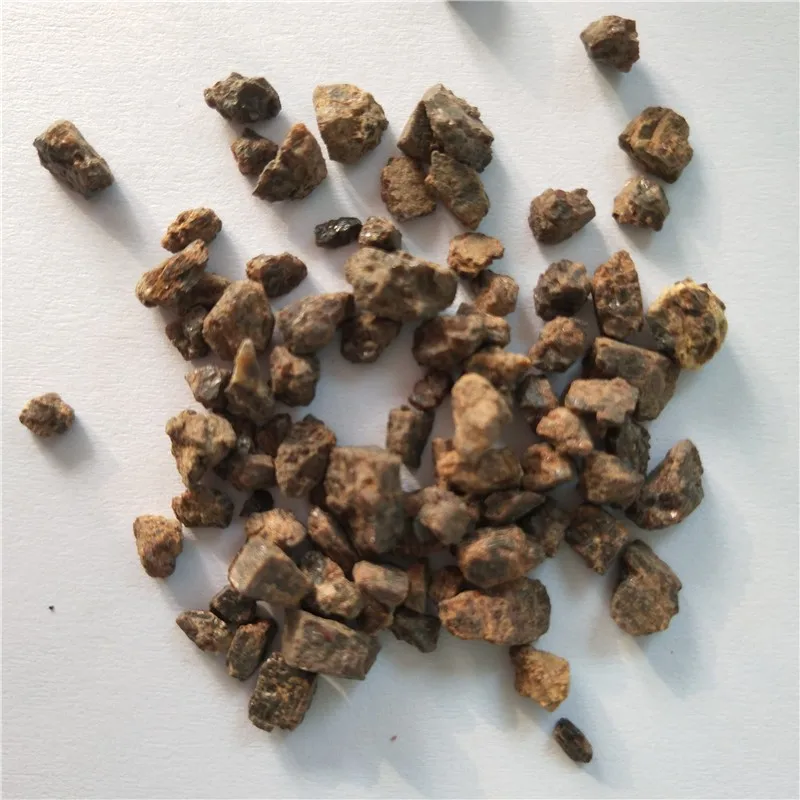

4-8 8-16 10-20 Mesh Nature Rock Almandine Garnet Sand for Water Treatment photo-1
4-8 8-16 10-20 Mesh Nature Rock Almandine Garnet Sand for Water Treatment photo-2
4-8 8-16 10-20 Mesh Nature Rock Almandine Garnet Sand for Water Treatment photo-3
4-8 8-16 10-20 Mesh Nature Rock Almandine Garnet Sand for Water Treatment photo-4
US$ 199 - 399 MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
haixu abrasives
Place of Origin:
China
Model Number:
4-8 8-16 10-20 mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin,Qingdao
Delivery Detail:
3 days
Brand Name haixu abrasives
Place of Origin China
Model Number 4-8 8-16 10-20 mesh
Material Almandine garnet
Usage water treatment
Abrasive Grain Sizes 4-8 8-16 10-20 mesh

4-8 8-16 10-20 Mesh Nature Rock almandine garnet sand for water treatment

Product Description

4-8 8-16 10-20 Mesh Nature Rock almandine garnet sand for water treatment

Garnet, also known as "jade sand" or "natural gold steel", has a strong hardness and good acid and alkali resistance, is an island-like structure of aluminum (calcium) silicate.

Chemical Composition - Typical
Physical Characteristics - Typical
Mineralogical Content - Typical
Silica SiO2
34-40%
Specific Gravity
3.8-3.9g/cm3
Garnet
97-98%
Iron(Fe2O3+FeO)
25-31%
Mohs Hardness
7.5+
Ilmenite
0.5-1%
Alumina Al2O3
17-21%
Acid Solubility(HCL)
Quartz (free silica)
≤0.2%
Magnesium MgO
5-6%
Bulk density
1.8-1.9 g/cm3
Feldspar
≤ 0.5%
Calcium CaO
5-10%
Colour
Red-green
Others
≤0.1%
Manganese MnO
0-1%
Grain shape
Sub angular


TiO2
Toxic substances
none


Chloride
10-15ppm
Conductivity


Available Sizes
10/20 20/40 30/60 40/60 60/90 90/120 120/180 180/240 24# 30# 36# 40# 46# 54# 60# 70#
Produce show
Application

1) Sand blasting
Garnet abrasive's hardness is moderate and have high bulk density. It have free silica and good toughness .It is the ideal "environmentally friendly" sand blasting materials
2) Free grinding
The Grinding grade garnet abrasive is applied to the picture tube, optical glass, monocrystalline silicon, lenses, watches and clocks, glass, crystal glass, jade and other fields of free grinding. It is widely used in domestic advanced abrasive materials.
3) Resin grinder
Garnet abrasive with the right color, good hardness, toughness, and be suitable for the type of particle cross-section and blade retention. It can be used as a substitute for 20%-30% filler corundum resin grinding tool.
4) Coated abrasives
Garnet abrasive are materials production of paper, gauze and other manufacturers of raw materials production
5) Functional filler
The garnet will be used mainly to automobile brake parts, special tires, special building products, etc., and can be used to the construction of the highway pavement, the runway, the wharf, the parking lot, the sports field, etc.;
6)Filter media
Filter media Is a new application field of garnet, the underlying medium using granular garnet filtrating bed, can clean drinking water and waste water. It is a new type of filter material , especially suitable for non-ferrous metal processing, oil drilling mud weighting agent.
7)Waterjet cutting
Based on garnet abrasive cutting medium, rely on high pressure water jet cutting in basic and apply in oil (gas) cutting pipe, steel etc. It is a new type, environmental protection, safe way to cut.

Packing & Delivery

1MT BIG BAG

25KGS PVC BAGS
