Electric Cable Colours 3 Core Pu 4.5mpa

FOB Price

Negotiable / Meter

50 Meters(Min. Order)

Port Any Port of China
Payment TermsT/T L/C D/P D/A Credit Card PayPal
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Jacket	ETFE	Conductor Material	Copper
Application	Underground	Type	High Voltage
Insulation Material	ETFE
Place of Origin	China

Product Description

Description:

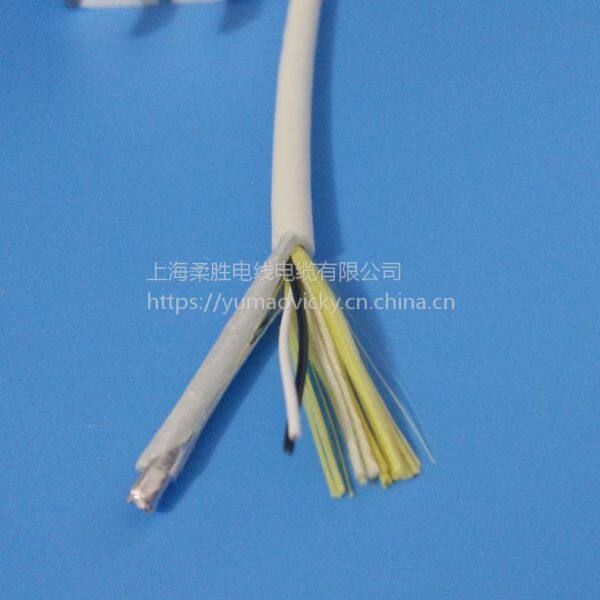

ROV Tether/ROV Umbilical/ Underwater Floating Cable

ROV Tethers include power conductors, shielded data

pairs and video using coax, TSP, or fi ber optics. Designs available

in several confi gurations, including Neutral Buoyancy.

A varied degree of strength designs available depending on

workloads and handling system. The sample cables listed below

are proven working designs for vehicles used worldwide.

Remark:

1.Specifications are not limited to the samples listed, For more specifications please contact our company.

2.Other cross-sectional area and Number of cores can according to requirements provide.

3.High, medium and low voltage level specifications can according to requirements provide.

4.For more application,the cable need to be specially manufactured, please contact our company.

Features:

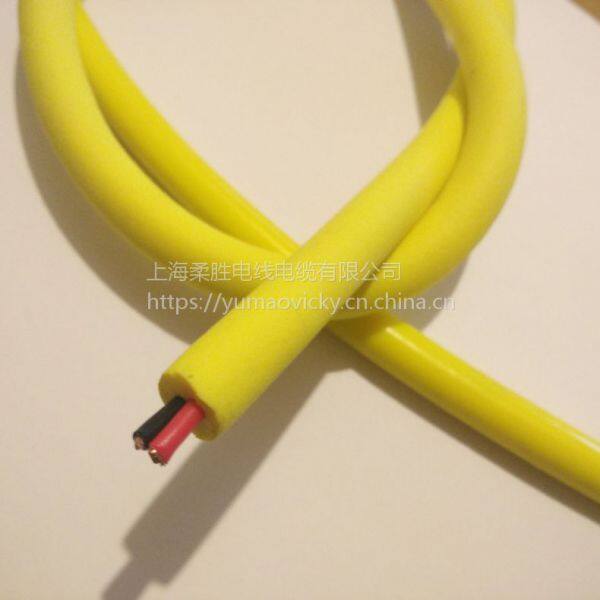

Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It has good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems

Specification:

Spec.	14 cores/Customized	Application	ROV/underwater
Cable diameter.	10mm+-1mm	Certification	CE, ISO9001
Conductor material	Bare copper	Depth	300 meters
Color	Yellow/blue/green/white/black and TBD	Shield	No
Insulation	PE	Inner sheath	No
Tensile structure	High tensile strength of Kevlar fiber	Wrapping material	Quality non-woven
Outer sheath	Foam PUR(Buoyancy special material for preventing sea water)	Temperature range	Fixed laying: -40℃~+90℃. Move installment: -30℃~+80℃

Applications:

Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, movable,UV-stable, good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems
