(aluminum liner carbon fiber full-wrapped composite gas cylinders-Scba)

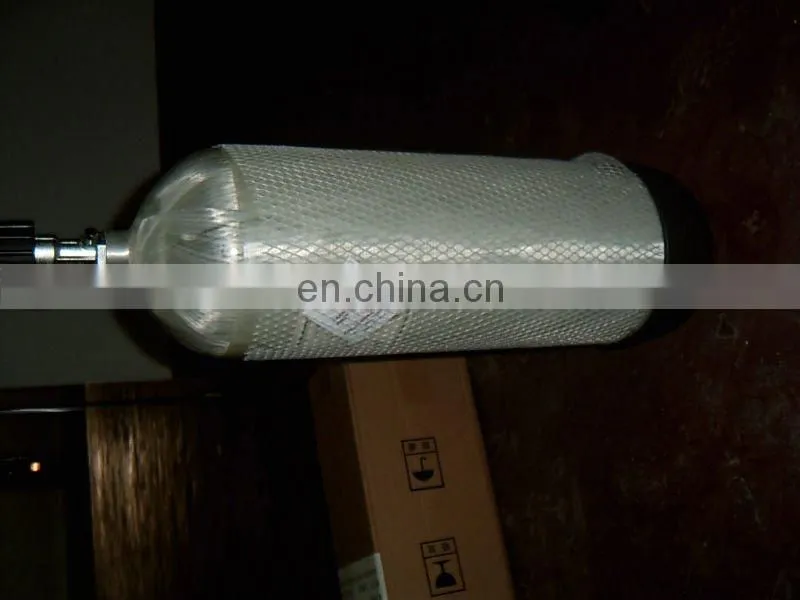

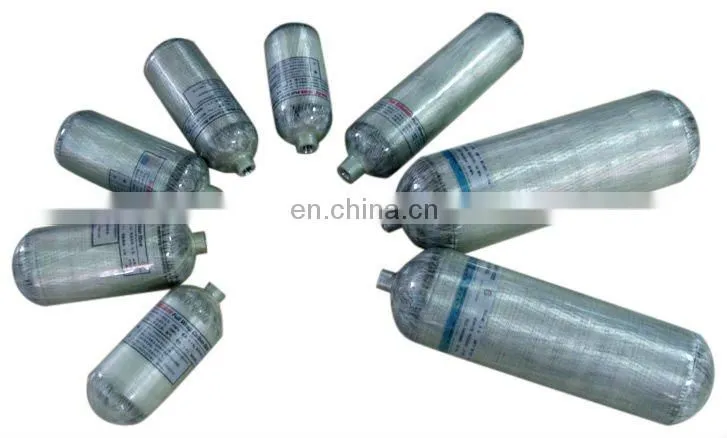

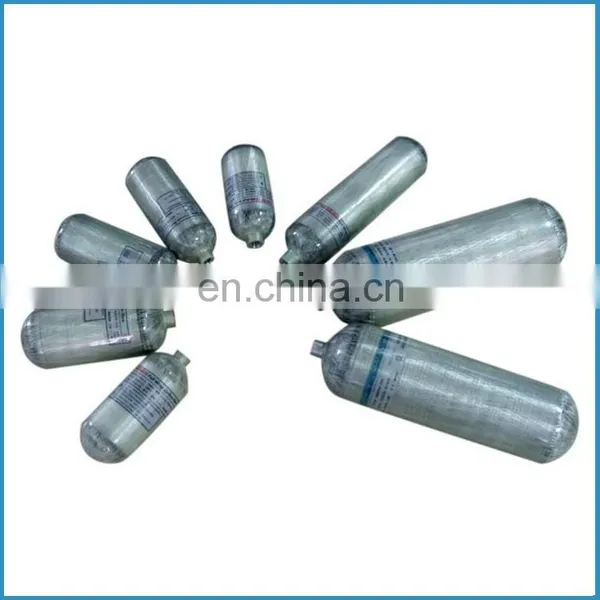

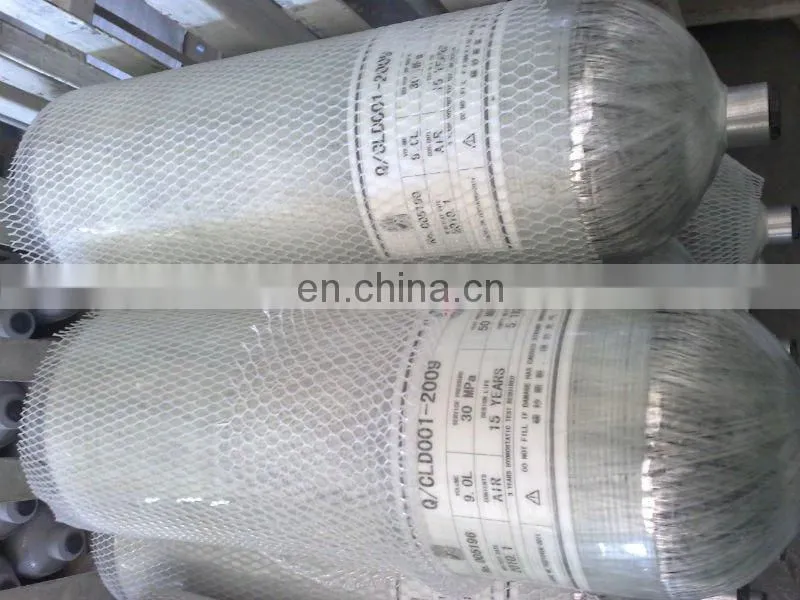

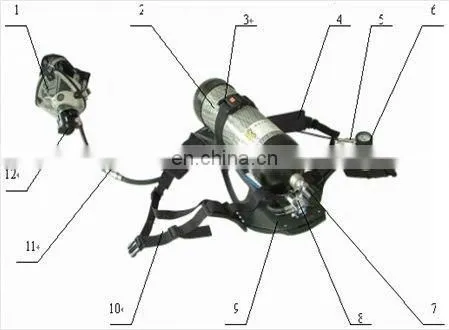

1.0.3-13L scba-breathing apparatus aluminum cylinder
2.6061 liner carbon fiber full-wrapped
ing pressure:20Mpa
Cylinder Liner with high-quality 6061 aluminum alloy material, by stamping, drawing, heat treatment, CNC spinning shut up processing of the inner surface made of treatment processes. Liner wall thickness uniformity, thickness difference is small, shoulder, bottom shape, high precision, consistency, strong, and the inner surface by anodic oxidation treatment, has a better corrosion resistance. Imports of high-quality cylinder winding layer of carbon fiber, epoxy resin and other raw materials by CNC winding, high temperature curing processes processed. Compared with metal cylinder with a better overall performance, stress significantly increased gas storage capacity increased by about 50% lighter and has better corrosion resistance, insulation, shock absorption and security. Firefighters or ambulance personnel can enter the smoke, gas, dust or harsh environments such as oxygen to provide an effective respiratory protection is widely used in fire fighting, mining, chemical industry, metallurgy, petroleum, electricity, medical care, anti-riot and other fields.
(1) series includes FQC63 to FQC218
(2) working pressure range from 20Mpa to 35Mpa
(3) water capacity range from 0.3L to 13L.
(4) outer diameter range from 63 mm to 218mm.
(5) material is 6061.

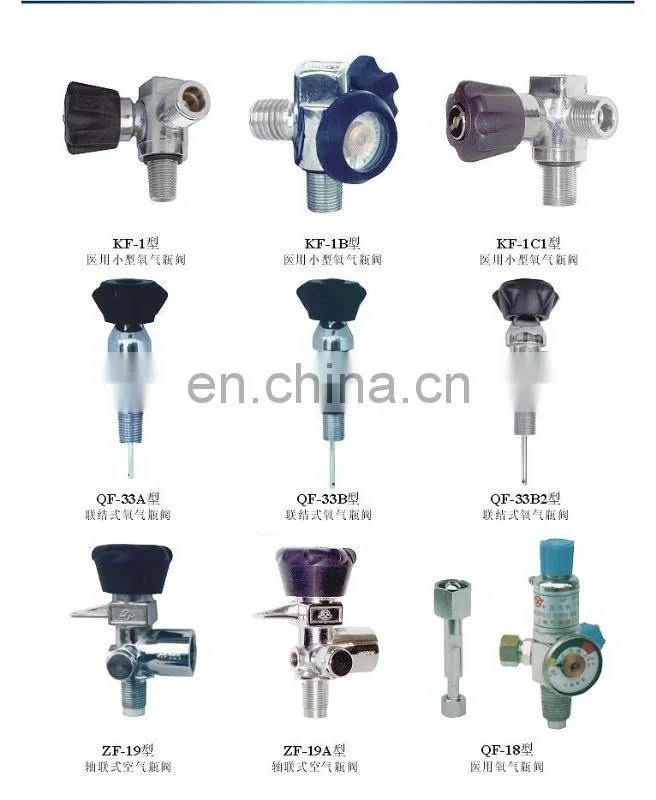

(6) thread, fittings, valves & colour can be processed as per buyer's request

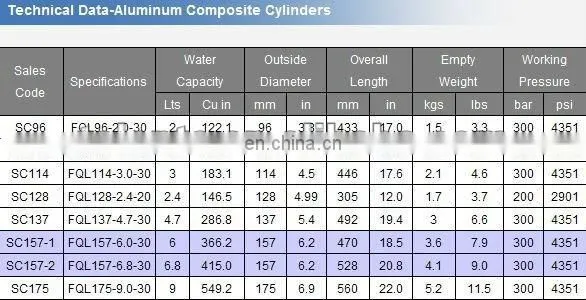

type |
Water Capacity (L) |
Weight (kg) |
Outer Diameter (mm) |
Height (mm) |
Working Pressure (Mpa) |
FQC63-0.3-30 |
0.3 |
0.45 |
63 |
212 |
30 |
FQC108-1.5-20 |
1.5 |
0.9 |
108 |
270 |
20 |
FQC113-1.6-20 |
1.6 |
1.0 |
113 |
265 |
|
FQC113-2.0-20 |
2.0 |
1.4 |
320 |
||
FQC101-2.0-30 |
1.6 |
101 |
405 |
30 |
|
FQC115-2.0-30 |
115 |
328 |
|||
FQC120-2.2-20 |
2.2 |
1.5 |
128 |
320 |
20 |
FQC128-2.4-20 |
2.4 |
1.6 |
306 |
||
FQC128-2.5-20 |
2.5 |
1.7 |
315 |
||
FQC132-2.7-20 |
2.7 |
132 |
315 |
||
FQC115-3.0-30 |
3.0 |
2.0 |
115 |
454 |
30 |
FQC136-3.0-30 |
2.2 |
136 |
352 |
||
FQC113-3.2-20 |
. |
2.3 |
113 |
490 |
20 |
FQC140-4.7-30 |
. |
140 |
487 |
30 |
|
FQC140-4.8-30 |
. |
500 |
|||
FQC157-6.8-30 |
. |
4.1 |
157 |
533 |
|
FQC174-9.0-30 |
. |
5.1 |
174 |
573 |
|
FQC218-13.0-35 |
. |
7.6 |
218 |
560 |
35 |
