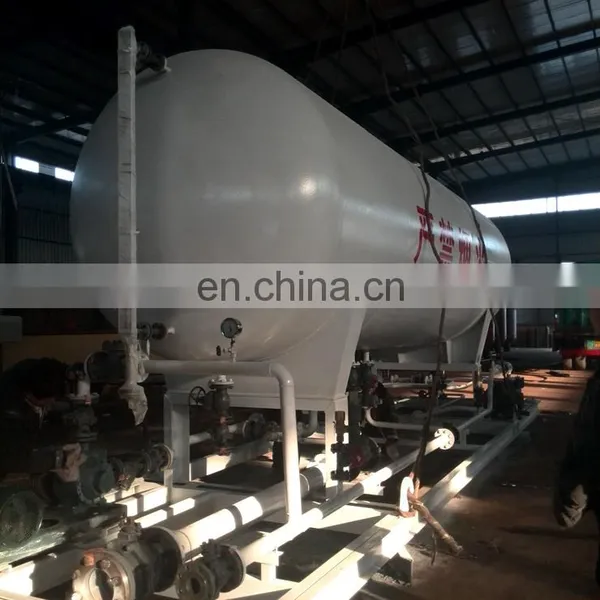

Lpg Gas Cylinder Filling Station, 1.77Mpagas Tank Filling Station , Lpg Filling Station photo-3

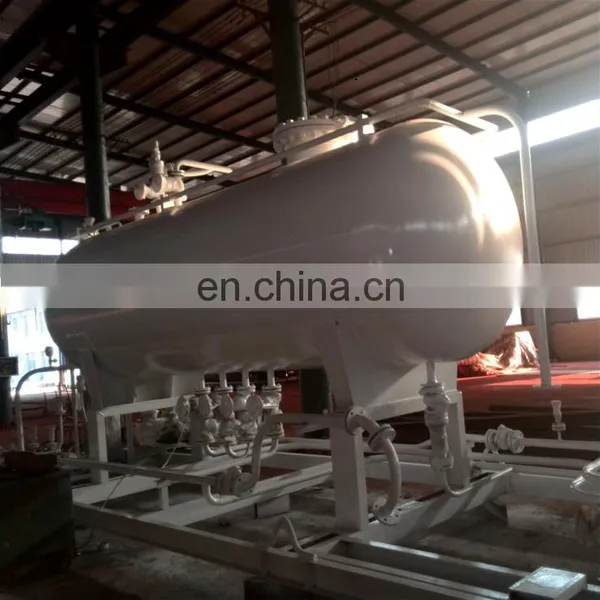

Lpg Gas Cylinder Filling Station, 1.77Mpagas Tank Filling Station , Lpg Filling Station photo-4
US$ 30,000 - 32,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
talents lpg gas cylinder filling station
Place of Origin:
Tianjin, China
Model Number:
08-tal-sk01
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name talents lpg gas cylinder filling station
Place of Origin Tianjin, China
Model Number 08-tal-sk01
After-sales Service Provided Engineers available to service machinery overseas
Weight 5000kg
Dimension(L*W*H) 5800*2100*2100mm
Condition New
Capacity 10m3



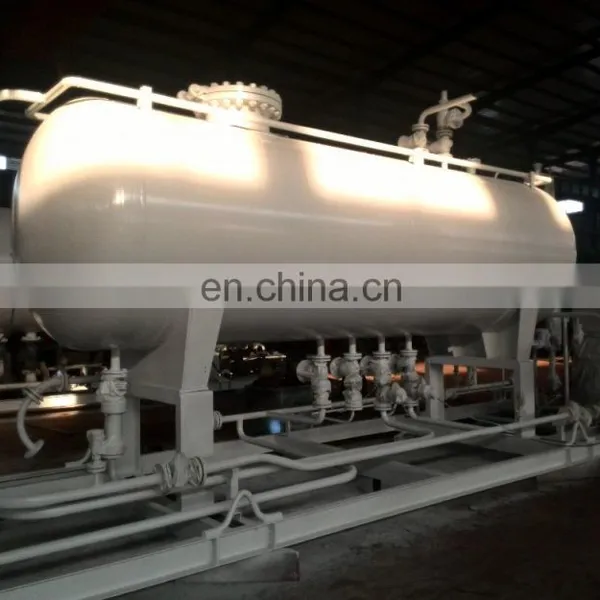

lpg gas cylinder filling station, 1.77Mpagas tank filling station , lpg filling station







Product Description





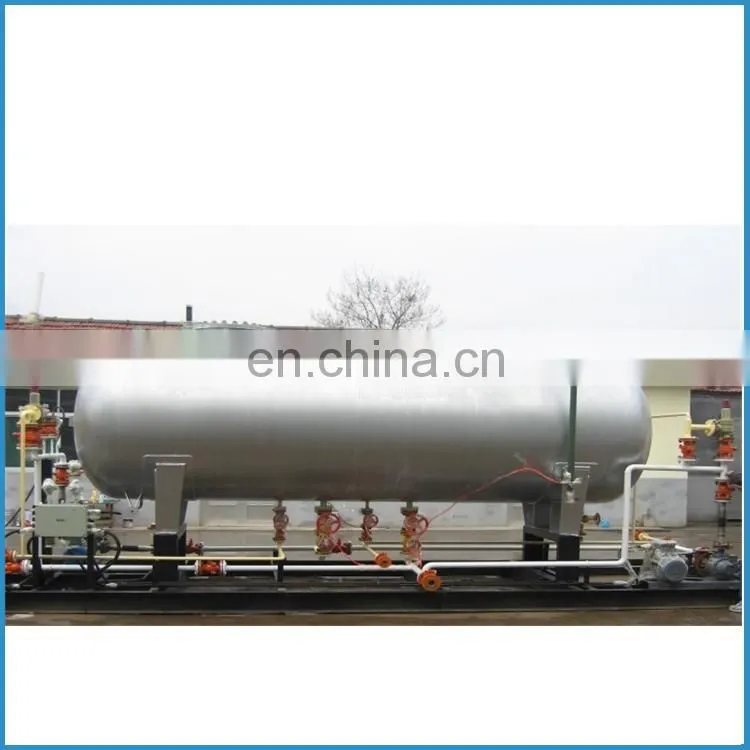

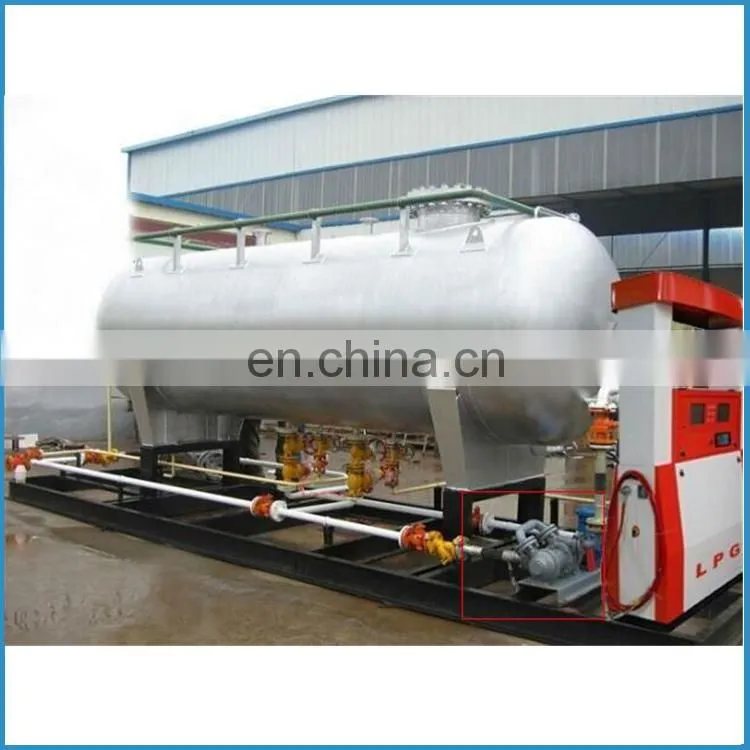

Main Technical Features of LPG Skid-Mounted Station

LPG-HW-10(20,30)

TANK DESIGN PRESSURE    MPA

1.77MPa

TANK Maximum allowable pressure  MPA

1.92MPa

STORAGE TANK VOLUME   M3

10 20 30 M3

STORAGE TANK TYPE

Ⅱ(10 20) Ⅲ(30)

DESIGN PRESSURE OF PIPE  MPA

2.5MPa

DESIGN TEMPERATURE    ℃

-40~+52℃

PIPE CLASS

GC2

Unload flow  M3/h/Mpa

10/0.5

Load flow  M3/h/Mpa

8/0.9

Gas machine pressure/flow Mpa/L/min

2.5<60

Filling time   min

3~5

Filling volume  Time / day

100~500

Function

Unloading, Filling, Reversal tank, security alarms, etc

STRUCTURAL FORM

Integral type or separated type

INSTALL METHOD

Above-ground; Underground

LPG CYLINDERFILLING WEIGHT  Kg

<120Kg

DIMENSION OF SKID-MOUNTED BODY

According to customers requirement

DESIGN STANDARD

(CHINA STANDARD)

TSGR0004-2009

SY5985-2007

TSGD0001-2009

GB150-2011

GB50156-2012GB/T20801-2006





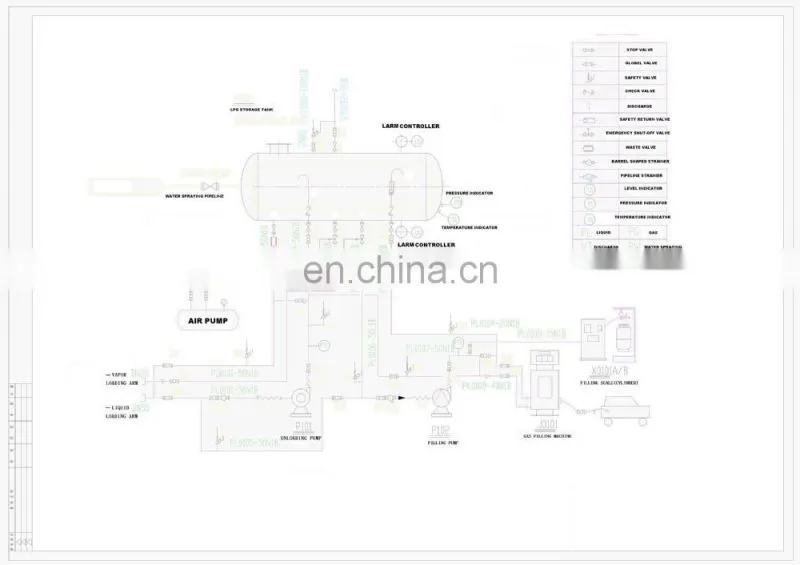

MAIN VALUE AND MACHINE

NO

PRODUCTS

SPECIFICATION

QUANTITY

PRODUCT MODEL

REMARK

1

LPG STORAGE TANK

VN=10,20,30M3











1

V01



2

STORAGE TANK SAFETY VALVE

A42Y-25 PN2.5 DN80

1

A1



3

Piping Safety Valve

A21F-40 PN4.0 DN20

7

A2~A8



4

GLOBEL VALVE

Q41F-25 PN2.5 DN50

15

B1~4 B6~14 B16~18



5

GLOBEL VALVE

Q41F-25 PN2.5 DN40

1

B19



6

GLOBEL VALVE

Q41F-25 PN2.5 DN20

2

B5 B18



7

GLOBEL VALVE

Q41F-25 PN2.5 DN15

1

B15

Q11F-25

DN2.5

DN15

8

STOP VALVE

J41N-25 PN2.5 DN50

5

C1~5



9

STOP VALVE

J41N-25 PN2.5 DN20

1

C6



10

emergency shut-off valve

QDQ421F-25 PN2.5 DN50

2

D1 D2



11

CHECK VALVE

H42N-25 PN2.5 DN50

1

Z1



12

CHECK VALVE

H42N-25 PN2.5 DN20

1

Z2



13

return valve

A42F-25 PN2.5 DN20

1

H1



14

Pressure gauge

YT-100 0~4.0MPa

3

PT1~3



15

Temperature gauge

TG -40~80℃

1

TG1



16

GAS LOADING PIPELINE

YGB-6.4 PN6.4 DN25

1



4M

17

LIQUID LOADING PIPELINE

YGB-6.4 PN6.4 DN50

1



4M

18

Barrel shaped Strainer



YG-2.5 PN2.5 DN50

1

E1



19

Pipe Strainer

YGLQ-25 PN2.5 DN50

1

E2



20

Shockproof pipe

YGF PN6.4 DN50

4

F1~4



21

blowdown valve

PWX-25 PN2.5 DN100

1

K



22

LPG PUMP

YQB10-5

1

P0101

Flow  10M3/h  P0.5MPa

23

SCREW PUMP

YHQ8-9

1

P0102

Flow 8M3/h  P0.9MPa

24

Electronic FILLING SCALE

GCS-120

1

X010(ACB)

Max weight

 120Kg

25

LPG filling Gun(select)

YZA(B)-25 DN2.5 DN15

1



I=2000min

M22×15

26

Other Fittings CONNECT

DN50,DN40,DN20

30





27

SKID-MOUNTED



1













Packaging & Shipping







payment term:50% tt before production, 50% tt before shipment to HSBC bank

Packing: 1 tank and 1 semitrailer to be load into a containers

shipping date: about 75 days after down payment
