2m, 4m, 5m, 6m......45m Solar Light Tower and Communication Mast

                                  2m, 4m, 5m, 6m......45m solar light tower and Communication mast

Specifications of Communication mast:

Closed length:1-4.0m (Bottom base included)
Extended length: 2-45m (Bottom base included)
Max.payload: 300kgs

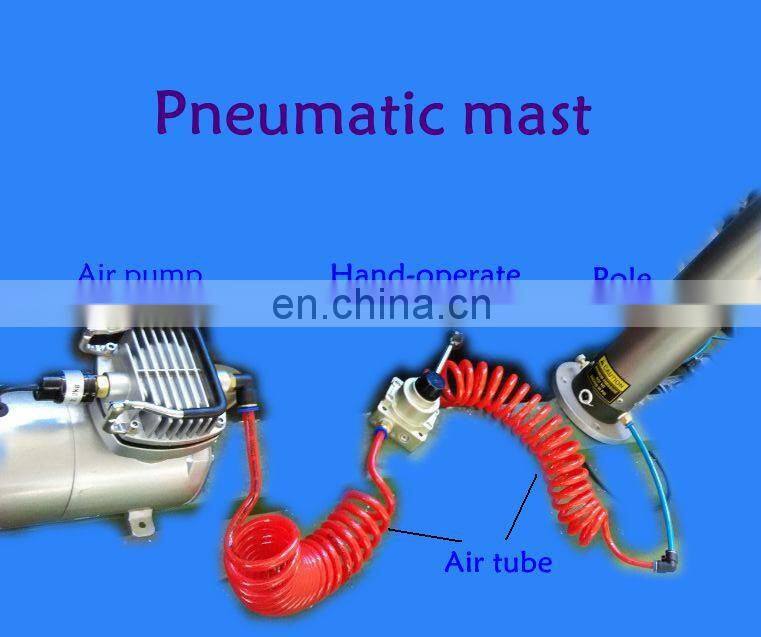

Lifting method: Hand lifting,Pneumatic, Motorized

Material:

Main Pole:

    aluminum alloy , stainless steel, fiberglass

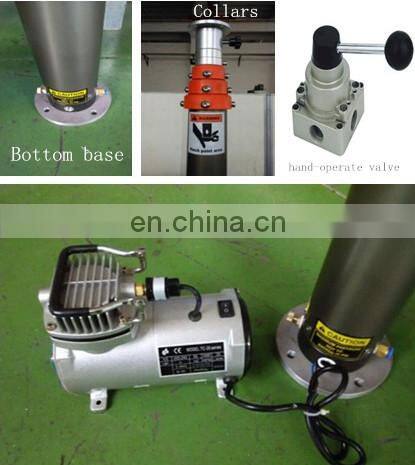

Bottom base,rotation platform and tripod:

    iron steel

Technology: painting

Color of Communication mast:

    We usually process three colors of Army green, the original color of aluminum, black, but any particular colour OEM is available, most of the customers prefer army green.
     The whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.

Appllication

The  2m, 4m, 5m, 6m......45m solar light tower and Communication mast is suitable for car,ship or land.It can help light transmission and camera and other equipment rise and drop to a predetermined height after its work.The company’s products are also widely used in golf, soccer stadium lighting at night.

PACKING:

One unit of Communication mast to be wrapped with Poly tapes and then put into carto.

Installation Instructions:

1）The Communication mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2）The Communication mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year’s time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

Notes:

(1).With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. When the mast is mounted on the ground, a tripod and pulling cord are useful to firm it.

(2).We will supply you with a top plate for free  if you want to connect our mast with antenna or a transmitter. And you could give us the size and specifications of the hole to match it.

(3). With different materials and ways of manufacture, the prices are quite different. The hand lifting mast will be the cheapest one , and the motorized lifting mast wants a few more expensive. In addition to product type, we also need your requirements for the top bearing, height and other particulars. Our quotation depending on all your requirements of this mast.

(4)we will fix a small steel rope with rings between the tops of bottom section and the top section as a lock when the pole is retracted if you needed.
