Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights

Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights thumbnail-1
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights thumbnail-2
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights thumbnail-3
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights thumbnail-4
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights thumbnail-5
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights thumbnail-6
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights photo-1
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights photo-2
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights photo-3
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights photo-4
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights photo-5
Vehicle Mounted 6m Pneumatic Telescopic Mast for LED Lights photo-6
US$ 200 - 450 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
TALENTS
Place of Origin:
Tianjin, China
Model Number:
TAL-P6-1.95-30
Contact Supplier Request Quote Chat Now
Dingzhou City Great Wall Daily Chemical Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TALENTS
Place of Origin Tianjin, China
Model Number TAL-P6-1.95-30
Product Description
model
penuamtic mast for light
exteneded length
6m
closed length
2m
payload
no less than 30kg
OD
top 51-98mm
material
aluminum alloy
accessories
air comperssor,air tube,etc.
No. of section
4

we supply telescopic mast up to 35m,it can bear payload
not less than 10kg,usually used as antenna mast,communication tower,
light support,camera mast and so on
A.it can be adjusted to any length
B.it can be mounted on the vehicle or stand on the ground with tripod
C.high strenght can bear large payload
besides,there are 3 designs for choice
A.handlifting telescopic mast
B.electric lifting&hand lifting telescopic mast
C.pneumatic telescopic mast
material:usually aluminum alloy

accessories
model
unit
guy wire
1 set
ground anchor
1 set
air compressor or manual pump
1 unit
tripod or car clamp
1 unit
top plate
1 unit
bottom base
1 unit

more details as follows

Swift mast cover with the pulling wire rings Warning that the mast fully retracted. And protect the mast

Car Clamps for vehicle mounting mast.
Assist the pole to be fixed to a truck or car
The rings for fixing the pulling wire when mast without the tripod and no mounting fixed accessories
Control box:With the swift for up and down, small air compressor
Air pipe,Pressure gauge
Basic guy accessories

manual hand pump

Detailed Images

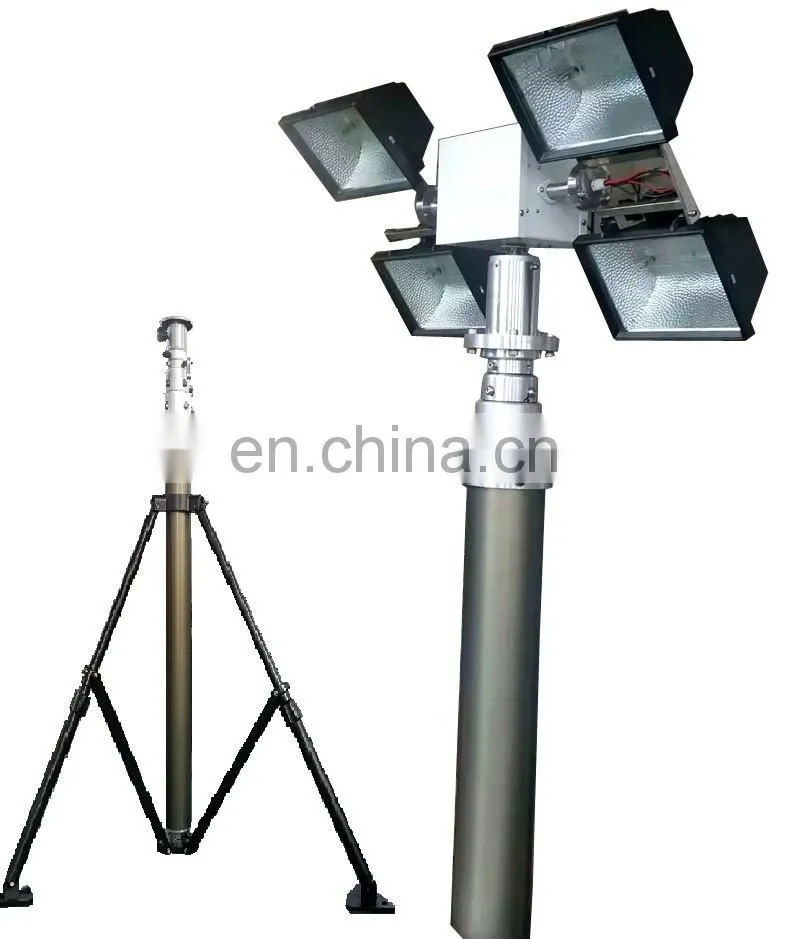

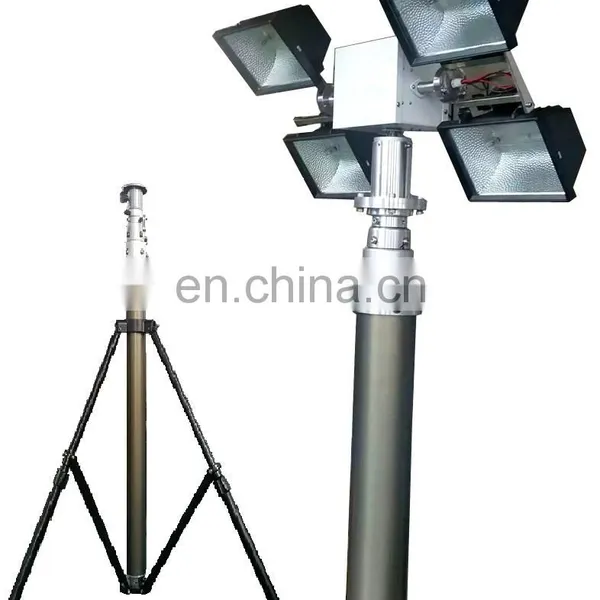

vehicle mounted 6m pneumatic telescopic mast for LED lights

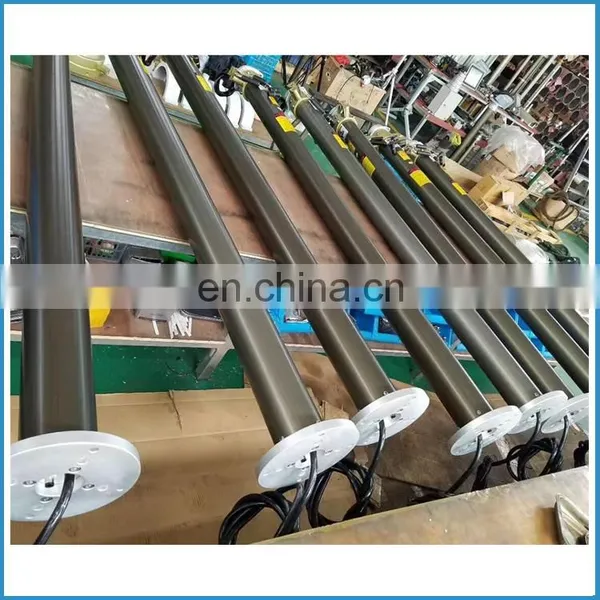

Bottom flange

mount the mast to filed or other base.
and bottom bracket with air inlet for air pipe connect with the air Compressor or foot/hand pump.

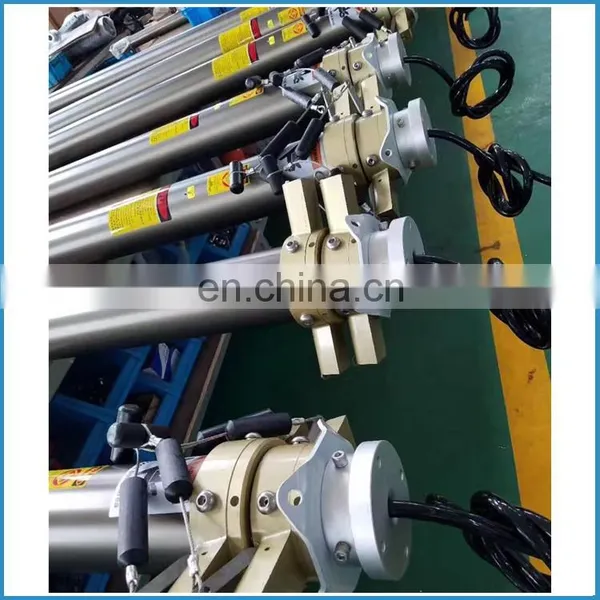

locking

Designed for long-term use. For preventing the mast slide down.

power cable

can be inside or outside of mast

Packing & Delivery
vehicle mounted 6m pneumatic telescopic mast for LED lights
After-sale service
 Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1）the manual  mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.

2）the manual mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.
Workshop
Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade pneuamtic mast as follows
extended height
(m)
No. of section
retracted height
(m)
outer tube range
(mm)
max. head loads(kg)
self weight
(kg)
2
2
1.3
118-98
150
22
3
4
1.1
87-43
30
25
6
5
1.7
118-51
30
42
8
7
1.8
140-36
30
65
10
7
2.20
140-36
30
72
12
7
2.6
140-36
15
85
15
7
3.0
140-36
20
90
16
8
3
180-51
30
175
18
10
3
279-66
100
330
20
9
3.3
229-66
55
300
30
13
4
316-51
30
630
