1000w*2 Emergency Balloon Portable Mobile Light Tower With Diesel Generator

Name: 1000w*2 Emergency Balloon Portable Mobile Light Tower With Diesel Generator
Brand: talents
Availability: InStock

FOB Price

US$ 1,050 - 1,150 / Unit

1 Unit(Min. Order)

Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents		Place of Origin	Tianjin, China
Model Number	TAL-2000W-3F

Product Description

Detailed Images

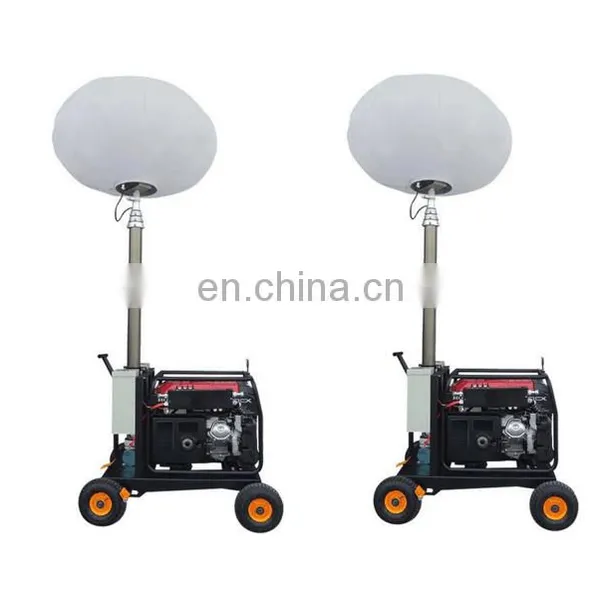

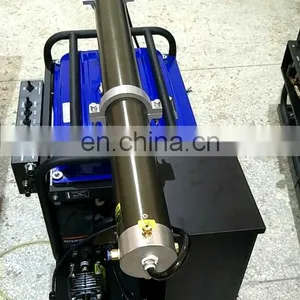

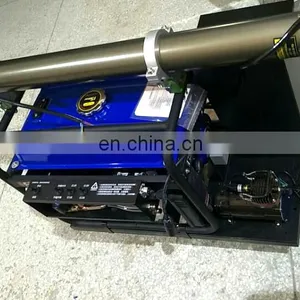

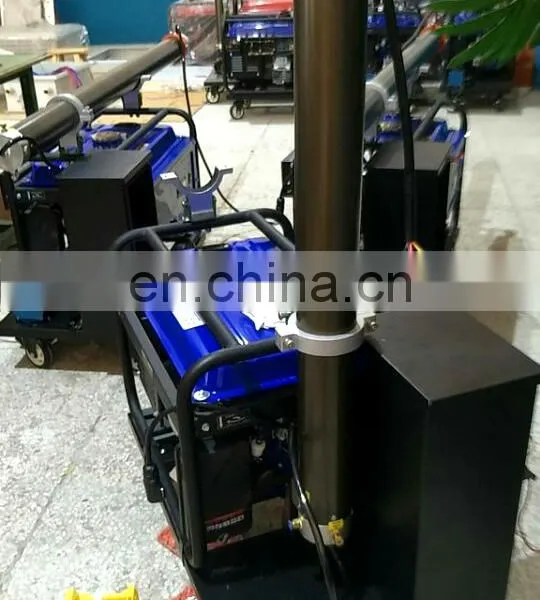

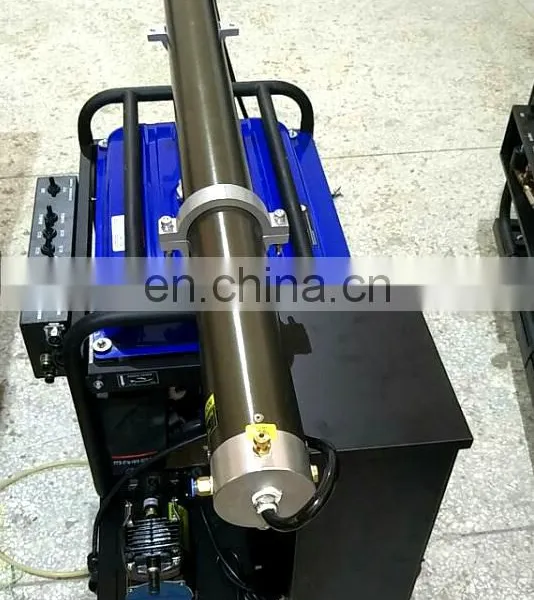

1000w*2 emergency balloon portable mobile light tower with diesel generator

Product Description

1000w*2 emergency balloon portable mobile light tower with diesel generator

lighting system	power of lamp	1000W*2pcs
	rated voltage	220V
	luminous flux	180000 lm
	light source	metal halide
	lamp life	about 8000 hours
	distance of one lamp illumination	about 100m
	IP rating	IP65
pneuamtic mast	No. of section	4
	retracted height	1.5m
	extended height	4.5m
	lifting method	by air compressor
	at pitch	＜11%
	wind load	＜70km/h
	working temperature	-15 to +40℃
	mounting	on trailer
motor	type	force-air cooling, four-stroke, gasoline
	power	3kw
	start	electric/ manual starting
	tank capaicty	15L
	one-cycle duty cycle	about 13 hours
China brand generator	type	single phase AC generator
	frequency	50Hz
	rated power	3kw
	output voltage	220v
	class of insulation	H
air compressor of the mast	power	110W
	max. air pressure	0.30Mpa
	air displacement	50L/mins
remote control system	control	mast up-down and lamp on-off
remote control system	distance of remote control	＜100m
frame of trailer	wheels	2pcs

accessories

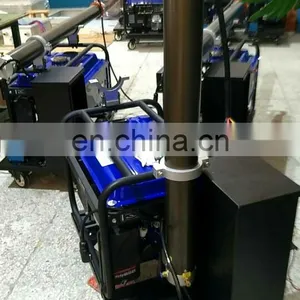

1000w*2 emergency balloon portable mobile light tower with diesel generator

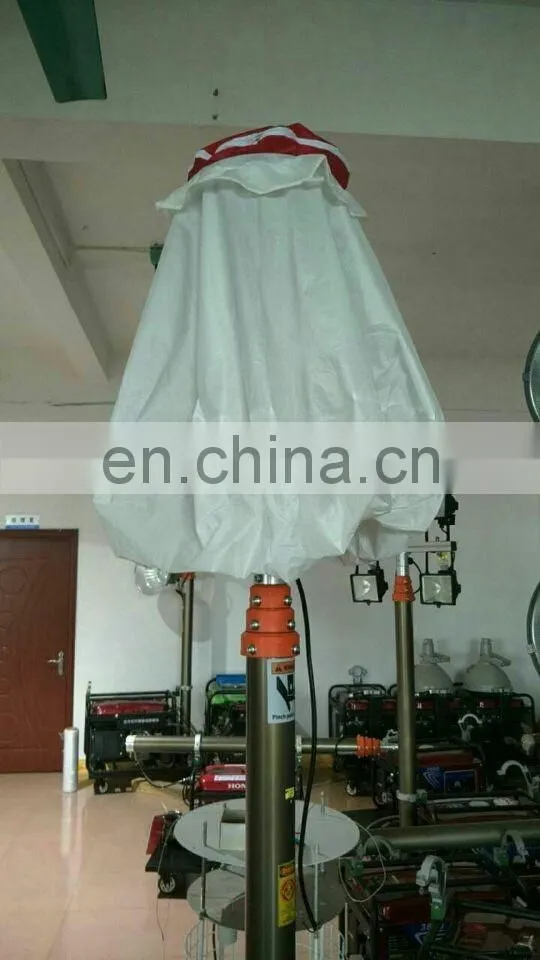

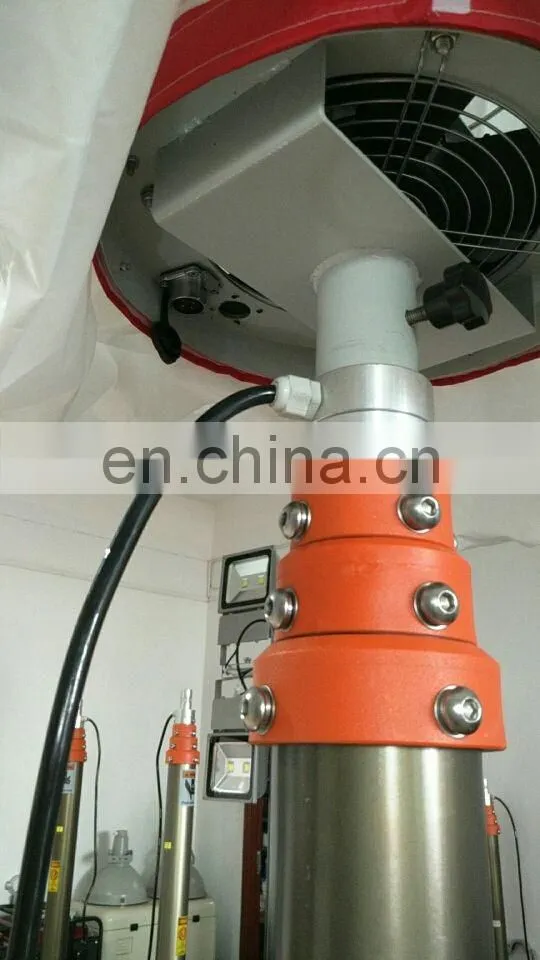

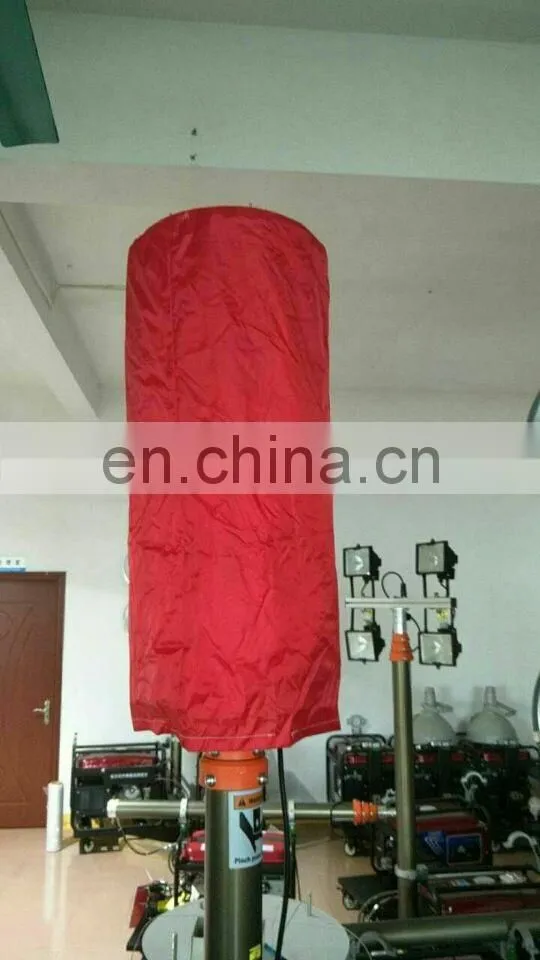

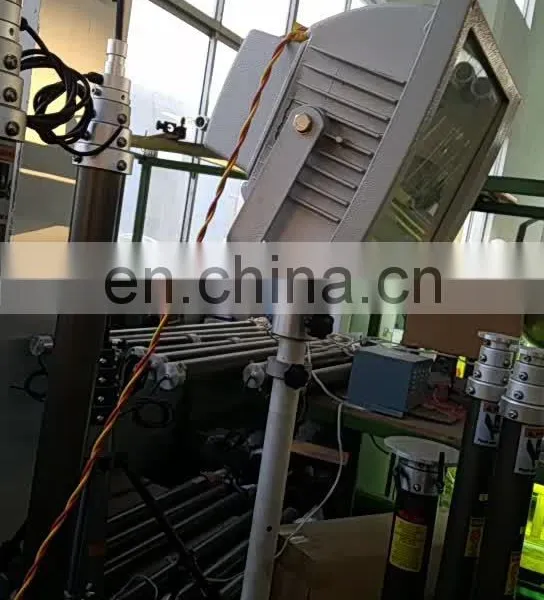

pneuamtic mast

air compressor

control system

motor

panel

manual and elctric control

Packing & Delivery

1000w*2 emergency balloon portable mobile light tower with diesel generator

Packing details
C/NO.	DESCRIPTION	QTY (UNIT)	N.W. (KG)	G.W. (KG)	MEAS (CM)
1	Pole : ------------------1 unit accessories---------1 set lamp-------------------- 4pcs trailer and motor--- 1 set	1	100	120	16565105

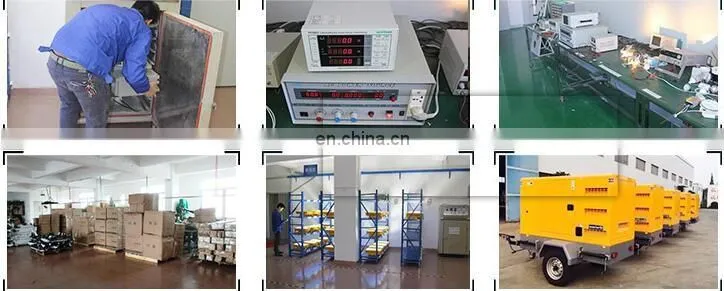

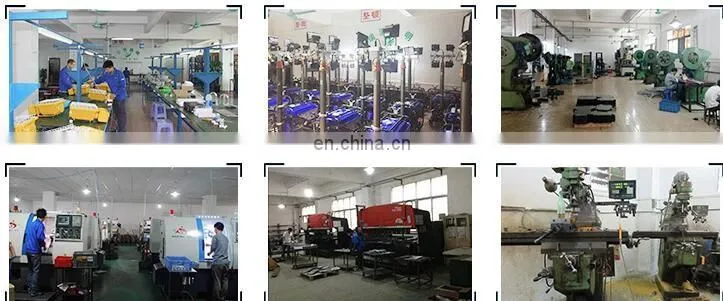

Workshop

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade pneuamtic mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	max. head loads(kg)	self weight (kg)
2	2	1.3	118-98	150	22
3	4	1.1	87-43	30	25
6	5	1.7	118-51	30	42
8	7	1.8	140-36	30	65
10	7	2.20	140-36	30	72
12	7	2.6	140-36	15	85
15	7	3.0	140-36	20	90
16	8	3	180-51	30	175
18	10	3	279-66	100	330
20	9	3.3	229-66	55	300
30	13	4	316-51	30	630

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the light tower will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Welcome to contact

contact person: Ms.Grace Wang

Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106

whatsapp:0086 18222428293

wechat: 1093812653
