Home > Products > Pneumatic telescopic mast > 8 Meter Aerial Pole Photography Mast

8 Meter Aerial Pole Photography Mast

FOB Price

US$ 800 - 1,100 / Set

1 Set(Min. Order)

Port Port of Tianjin China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents		Place of Origin	Tianjin, China
Model Number	TAL-P8-2.2-30

Product Description

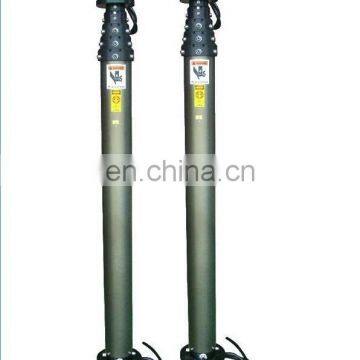

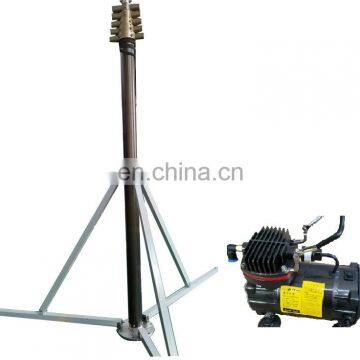

8 meter aerial pole photography mast

Specification list

Article number:	TAL-P8-2.2-30
Max top payload:	30kg
Closed length:	2200mm
Extended length:	8000mm
Main poles' sections:	5 sections
sec.1#(OD/thickness):	51/3mm
sec.2#(OD/thickness):	61/3mm
sec.3#(OD/thickness):	82/3.5mm
sec.4#(OD/thickness):	98/4mm
sec.5#(OD/thickness):	118/4mm

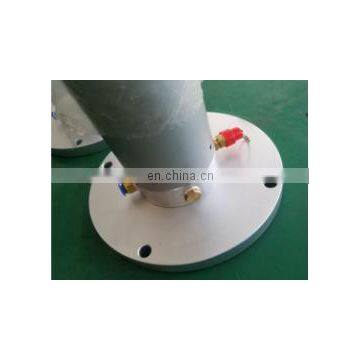

Bottom base size (dia./thickness):	180/20mm
Top plate size (dia./thickness):	150/12mm
Working temperature:	-25--+60C
Collar style:	Non-locking collar
Air pump power:	AC220v/1000w
Wind load:	80km/h
Pulling cord's OD:	2mm
Material for main pole:	aluminum alloy 6063B
Material for bottom base:	iron steel
Material for accessories:	iron steel
Material for air hose	PU tube
Material for guy ropes:	Nylon
Material for other asscessaires	iron steel

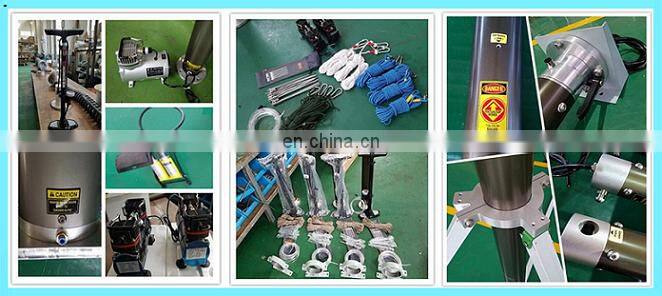

Packing list:

Mian pole in 5 sections:	1 set

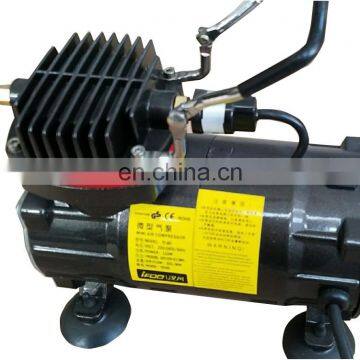

Air pump(AC220v/300w):	1 set
Air hose:	5 m
Bottom base:	1 piece
top plate:	1 piece
Pulling cord:	3 sets
Ground anchor:	3 pieces
Clamp:	1 piece
Tripal:	1 set

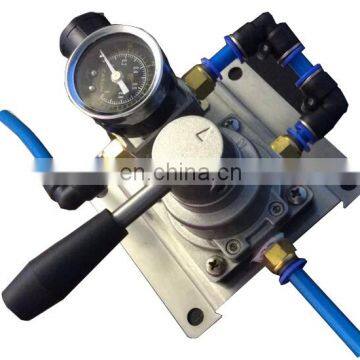

Hand operated valve	1 piece
Surface color Technology:	phosphoric acid anodizing

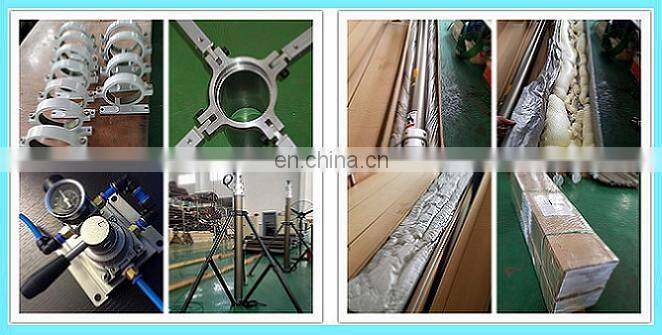

Packing method:	One set to be packed into a carton with inside filled by Polyurethane foam

8 meter aerial pole photography mast

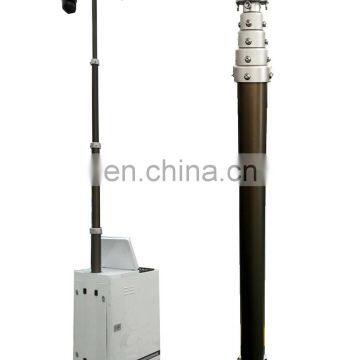

1. The telescopic mast is made of aluminum alloy or stainless steel tube.

2. It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,

photography, meteorological measurement equipments rise and drop to a certain

height after its work.

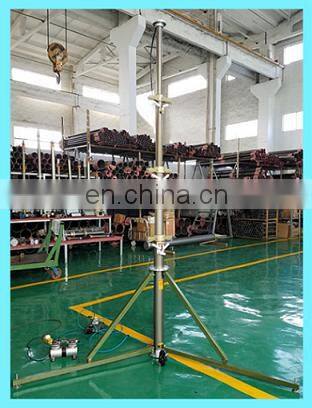

3. It can be mounted on the vehicle or stand on the ground with tripod.

4. It has manual, motorized and pneumatic lifting method, the extended length up to 35m

and closed length to 1.3m.

5. The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.

Except the motorized lifting telescopic mast, we still have manula lifting and pneumatic lifting

telescopic masts available for supply as follows, please refer to the catalogue attached below:

Pneumatic lifting telescopic mast

Article No.	Retracted height (mm)	Extended height (mm)	Bottom OD (mm)	Top OD (mm)	Section No.s	Top payload (kgs)
TAL-2.0-1.3-150-AT8	1300	2000	118	98	2	150
TAL-3.0-1.1-30-AT8	1100	3000	87	43	4	30
TAL-3.0-1.5-50-AT8	1500	3000	98	66	3	50
TAL-3.2-1.5-200-AT8	1500	3200	160	118	3	200
TAL-3.2-1.5-250-AT8	1500	3200	180	140	3	250
TAL-4.0-1.85-250-AT8	1850	4000	180	140	3	250
TAL-4.0-1.3-30-AT8	1300	4000	87	43	4	30
TAL-4.0-2.0-250-AT8	2000	4000	180	140	3	250
TAL-4.0-1.2-10-AT8	1200	4000	87	43	4	10
TAL-4.5-1.5-30-AT8	1500	4500	87	36	4	30
TAL-4.5-1.2-30-AT7	1200	4500	140	51	6	30
TAL-4.5-1.65-50-AT9	1650	4500	118	66	4	50
TAL-5.0-1.75-35-AT9	1750	5000	98	51	4	35
TAL-5.0-1.7-40-AT8	1700	5000	98	51	4	40
TAL-5.0-1.75-110-AT8	1750	5000	140	82	4	110
TAL-5.0-1.75-30-AT9	1750	5000	98	51	4	30
TAL-5.0-1.45-10-AT8	1450	5000	87	43	4	10
TAL-5.5-1.8-30-AT8	1800	5500	87	43	4	30
TAL-6.0-1.7-30-AT8	1700	6000	118	51	5	30
TAL-6.0-1.9-30-AT8	1900	6000	87	36	4	30
TAL-6.0-2.0-30-AT8	2000	6000	98	51	4	30
TAL-6.0-1.75-12-AT8	1750	6000	87	28	5	12
TAL-6.0-1.95-30-AT8	1950	6000	98	51	4	30
TAL-6.0-2.0-50-AT9	2000	6000	118	66	4	50
TAL-6.0-1.8-60-AT8	1800	6000	140	66	5	60
TAL-6.0-1.95-30-AT8	1950	6000	87	43	4	30
TAL-6.0-1.5-25-AT9	1500	6000	118	51	5	25
TAL-6.0-1.8-15-AT8	1800	6000	98	51	4	15
TAL-7.0-1.95-40-AT8	1950	7000	118	51	5	40
TAL-8.0-1.8-50-AT9	1800	8000	160	51	7	50
TAL-8.0-2.2-30-AT8	2200	8000	118	51	5	30
TAL-8.0-2.5-250-AT8	2500	8000	229	118	5	250
TAL-8.0-2.2-60-AT7	2200	8000	140	66	5	60
TAL-8.0-2.0-25-AT8	2000	8000	118	36	6	25
TAL-8.0-2.0-25-AT9	2000	8000	118	36	6	25
TAL-8.4-2.3-30-AT8	2300	8400	118	51	5	30
TAL-9.0-2.15-30-AT8	2150	9000	140	51	6	30
TAL-9.0-2.4-30-AT8	2400	9000	118	51	5	30
TAL-10.0-2.2-20-AT8	2200	10000	140	51	6	20
TAL-10.0-2.4-30-AT7	2400	10000	140	51	6	30
TAL-10.0-2.2-15-AT8	2200	10000	140	36	7	15
TAL-10.0-2.4-15-AT8	2400	10000	118	36	6	15
TAL-12.0-2.7-250-AT8	2700	12000	279	140	7	250
TAL-12.0-2.6-15-AT9	2600	12000	140	36	7	15
TAL-12.0-2.6-15-AT8	2600	12000	180	51	7	15
TAL-12.0-2.6-30-AT9	2600	12000	160	36	7	30
TAL-15.0-3.2-30-AT9	3200	15000	160	51	7	30
TAL-15.0-3.0-20-AT8	3000	15000	140	36	7	20
TAL-15.0-2.65-20-AT8	2650	15000	180	30	9	20
TAL-15.0-3.5-150-AT9	3500	15000	229	98	6	150
TAL-16.0-3.0-30-AT8	3000	16000	180	51	8	30
TAL-18.0-3.3-220-AT9	3300	18000	280	118	8	220
TAL-18.0-3.0-100-AT8	3000	18000	279	66	10	100
TAL-20.0-3.3-55-AT8	3300	20000	229	66	9	55
TAL-30.0-4.0-30-AT8	4000	30000	316	51	13	30
