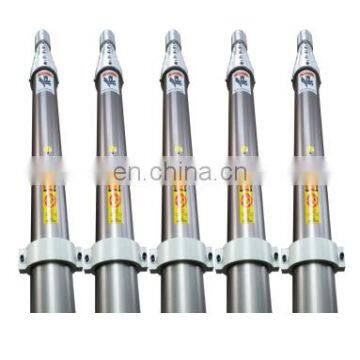

Military 8m Aluminum Heavy Duty Pneumatic Telescoping Mast Witheyelets

Name: Military 8m Aluminum Heavy Duty Pneumatic Telescoping Mast Witheyelets
Brand: pneumatic telescoping mast
Availability: InStock

FOB Price

US$ 900 - 1,200 / Unit

1 Unit(Min. Order)

Port Xingang China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	pneumatic telescoping mast		Place of Origin	Tianjin, China
Model Number	TAL-P-008

Product Description

What is a Pneumatic Mast?

Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Classification of masts

Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 300kg.

Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Specification

12m portable field locking telescopic pneumatic mast
Model No.	TAL-P12.0-2.6-20-AT9
Material	aluminum alloy
surface treatment	Hard anodizing
Color	Bronze
Extended height	12.0m
Retracted height	2.6m
Max head load	20kg
Sections Number	7 sections each section tube OD& thickness 1# 140/5.0mm 2# 118/4.0mm 3# 98/4.0mm 4# 82/3.5mm 5# 66/3.0mm 6# 51/3.0mm 7# 36/3.0mm
Mast net weight	85kg( without accessories)
Max wind load	100km/h ( with guy wire fixed)
top flange	150mm/10mm (diameter/thickness)
bottom base	235mm/22mm(diameter/thickness)
accessories	air hose/air compressor/tripod/guy wire/ steel stakes

Detail

12m portable field locking telescopic pneumatic mast

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze and origin silver color for choose.

Acessories for 12m portable field locking telescopic pneumatic mast .

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Packing & Delivery

Package information based on different specifitation
extended height less than 9m also weight less than 70kg	packed into a carton, inner space filled with foam to protect mast. wooden case if customer request.
extended height more than 9m also weight more than 70kg	packed into plywood case, inner space filled with foam to protect mast.

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Other Specification

Pneumatic telescopic mast
MODEL No.	Extended Height (m)	Retracted Height (m)	Bottom OD (mm)	TOP OD (mm)	Section NO.	Head-load (KG)
TAL-2.0-1.3-150-AT8	2	1.3	118	98	2	150
TAL-3.0-1.5-50-AT8	3	1.5	98	66	3	50
TAL-4.0-1.3-20-AT8	4	1.3	87	43	4	20
TAL-4.5-1.65-50-AT9	4.5	1.65	118	66	4	50
TAL-5.0-1.7-40-AT8	5	1.7	98	51	4	40
TAL-5.0-1.75-30-AT9	5	1.75	98	51	4	30
TAL-6.0-1.7-30-AT8	6	1.7	118	51	5	30
TAL-6.0-1.75-12-AT8	6	1.75	87	28	5	12
TAL-6.0-2.0-50-AT9	6	2	118	66	4	50
TAL-6.0-1.95-30-AT8	6	1.95	87	43	4	30
TAL-6.0-1.5-25-AT9	6	1.5	118	51	5	25
TAL-7.0-1.95-40-AT8	7	1.95	118	51	5	40
TAL-8.0-1.8-50-AT9	8	1.8	160	51	7	50
TAL-8.0-2.2-60-AT7	8	2.2	140	66	5	60
TAL-8.0-2.0-25-AT8	8	2	118	36	6	25
TAL-9.0-2.15-30-AT8	9	2.15	140	51	6	30
TAL-10.0-2.4-30-AT7	10	2.4	140	51	6	30
TAL-12.0-2.7-250-AT8	12	2.7	279	140	7	250
TAL-15.0-3.5-150-AT9	15	3.5	229	98	6	150
TAL-16.0-3.0-30-AT8	16	3	180	51	8	30
TAL-18.0-3.0-100-AT8	18	3	279	66	10	100
TAL-20.0-3.3-55-AT8	20	3.3	229	66	9	55
TAL-30.0-4.0-30-AT8	30	4	316	51	13	30

NOTE:

above specification does not include all we can do.

Certifications

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers

an one for one timely information feedback, we have organized an expert team for quality control and inspection system,

we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We

think outside the box and are continually developing new products to meet customer requirements, what you are asking

for is our motive power of task, we wish one of our products will well-meet what you demand.
