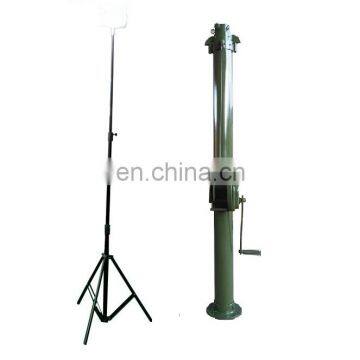

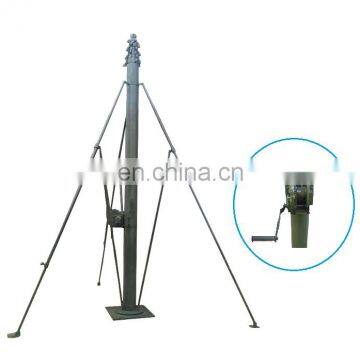

20m Military Communication Meteorogly High Push up Manual Crank Mast for Mobile Radar

Name: 20m Military Communication Meteorogly High Push up Manual Crank Mast for Mobile Radar
Brand: Talents
Availability: InStock

FOB Price

US$ 1,000 - 2,000 / Unit

1 Unit(Min. Order)

Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents		Place of Origin	Tianjin, China
Model Number	06-Tal-012

Product Description

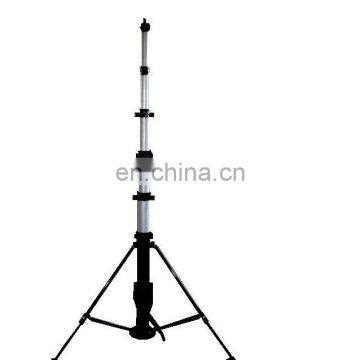

Telescopic crank mast, light weight, for payload up to 600kg

Telescopic crank masts is characterised by the lightweight construction and in addition

a superior stability, reliability and a long economic lifetime.

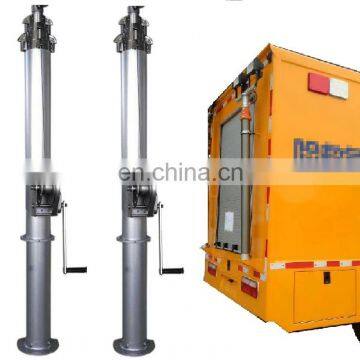

The masts are designed for field installation as well as vehicle installation or on a trailer.

Advantages:

1) no power supply needed - easy manual crank up

2)automatic locking collars - locks at any height desired

3) maintenance free

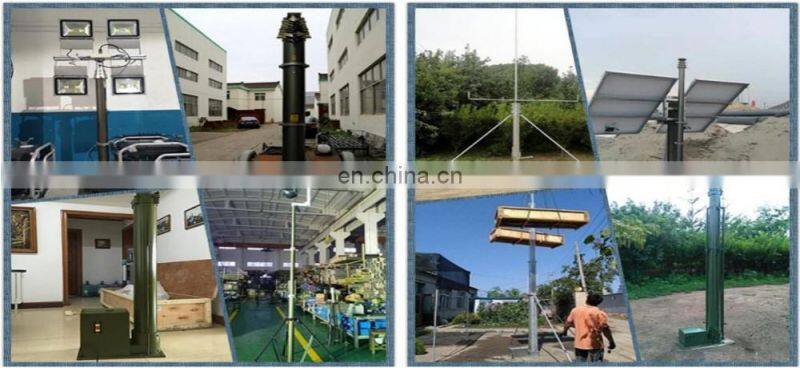

Common applications

our cranks masts are in use for military as well as civil purposes like communication,
monitoring, lighting and measurement techniques.

Essential features

Specification
Article number	TAL-M20-3.8-15
Lifting method	manual crank lifting
Closed length and extended length	3.8m to 20m
73material	for main tube: aluminum alloy
net wieght	70kg for mast
Max payload	15kgs
wind load	120km/h
temperature	-50 deg C to +60
sections	8
outer tube diameter	30mm-150mm

accessories

Pulling cord box with handle bars------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece

Packing & Delivery

20m military communication meteorogly high push up manual crank mast for mobile radar

Packing details
C/NO.	DESCRIPTION	QTY (UNIT)	N.W. (KG)	G.W. (KG)	MEAS (CM)
1	Pole : ------------------1 unit accessories---------1 set	1	50.00	70.00	2303040

Certifications

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube range(mm)	Self weight (kg)	Max.payload (kg)
TAL-M3-1-20	3	3	1.0	70-90	15	20
TAL-M4-1.5-30	4	3	1.5	50-80	15	30
TAL-M4-1-20	4	3	1.0	70-90	16	20
TAL-M4-1.6-10	4	3	1.6	60-80	14	10
TAL-M5-1.65-10	5	4	1.65	50-80	17	10
TAL-M5-1.2-15	5	5	1.2	40-90	20	15
TAL-M5-1.5-60	5	5	1.5	50-90	20	60
TAL-M5-1.7-100	5	6	1.7	60-130	35	100
TAL-M6-1.7-10	6	5	1.7	50-90	21	10
TAL-M6-1.5-100	6	6	1.5	60-130	40	100
TAL-M6-1.3-60	6	7	1.3	40-130	32	60
TAL-M7-1.8-30	7	7	1.8	40-105	23	30
TAL-M8-1.5-20	8	8	1.5	40-130	34	20
TAL-M9-1.8-40	9	7	1.8	40-105	25	40
TAL-M9-1.8-100	9	7	1.8	60-160	43	100
TAL-M9-1.9-5	9	7	1.9	30-90	25	5
TAL-M10-1.95-10	10	7	1.95	30-90	26	10
TAL-M10-2-40	10	7	2	30-105	31	40
TAL-M12-2.2-10	12	7	2.2	30-90	28	10
TAL-M12-2.1-15	12	7	2.1	30-90	28	15
TAL-M12-2-40	12	8	2.2	40-130	44	40
TAL-M15-2.45-10	15	8	2.45	30-105	33	10
TAL-M15-2.6-35	15	9	2.6	30-130	40	35
TAL-M15-2.5-200	15	7	2.5	70-200	200	70
TAL-M16-2.6-10	16	8	2.6	30-105	35	10
TAL-M18-2.7-10	18	9	2.7	30-130	47	10
TAL-M18-3.2-30	18	9	3.2	30-130	48	30
TAL-M18-3.7-100	18	7	3.7	50-130	47	100
TAL-M20-2.95-10	20	9	2.95	30-130	55	10
TAL-M20-3.20-20	20	8	3.20	40-130	58	20
TAL-M22-3.15-10	22	9	3.15	30-130	58	10
TAL-M25-3.4-10	25	10	3.4	30-150	72	10
TAL-M25-3.5-250	25	10	3.5	80-280	90	250
TAL-25-3.6-20	25	9	3.6	40-150	71	20
TAL-M30-3.85-10	30	10	3.85	30-150	84	10
TAL-M35-4.5-25	35	10	4.5	40-180	130	25

Welcome to contact

Company profile

About"Talents"
Talents is a Chinese company that design, manufacture mast system from 1m to 45m for nearly unlimited use,

that can deploy loads from 1kg to 600kg with height selected,

Our products are used worldwide by rescue and secuirty services, fire departments as weel as armed forces.

some popular masts are in great demand for referentc

6m pneumatic mast 30kg payload

click the pictures for viewing more info

10m manual winch mast 15kg payload

15m motorized mast 80kg payload
