8m Electrical Telescopic Mast

                                                         8m electrical telescopic mast

Application

The 8m electrical telescopic mast can help lamplight, camera, Antenna, mobile and other equipments rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field.Our product has the advantages of large play load, low noise, fast lifting, strong buffering & stable performance and the like. With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. It can be installed on the ground or on the vehicle to ensure the application effect.

Material:

Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)
Color:
the whole unit will be in army green when closed, but when

extended, the main pole will be in origin color of aluminum

alloy only with top 4cm of each pole section in army green

color. Technology: painting

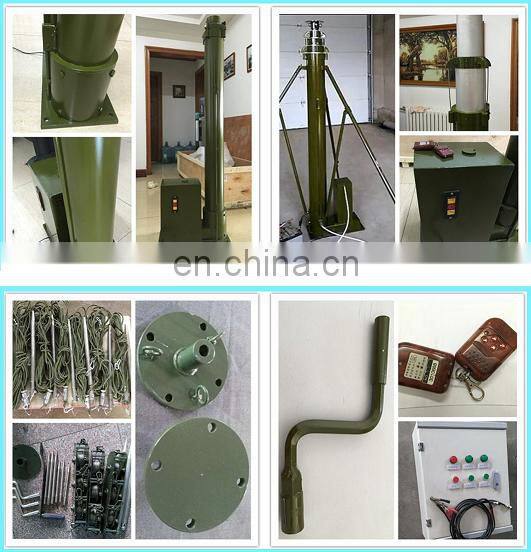

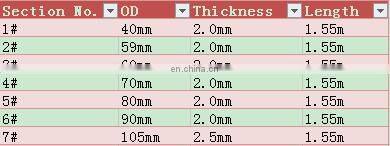

Main pole in 7 sections: As shown in the figure above

Bottom base: 8m winch telescopic mast

Diameter:220mm Thickness: 12mm

PACKING:

 One unit of electrical telescopic mast (main pole and all accessories )to be wrapped with Poly tapes and then into A plywood case with metal belts reinforced.

Installation Instructions:

1)The  electrical telescopic mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.

2)The electrical telescopic mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.
